Fed/zorky style take up spool

MFstooges

Member
Joined
Feb 10, 2010
Messages
955
Format
35mm
Does anyone know what is the bottom hole diameter of this style of take up spool.
My tenax came with this kind of spool and it is wobbly so I have to push in a rubber grommet.


BAC1967

Subscriber
Joined
Oct 30, 2014
Messages
1,433
Location
Bothell, WA
Format
Medium Format

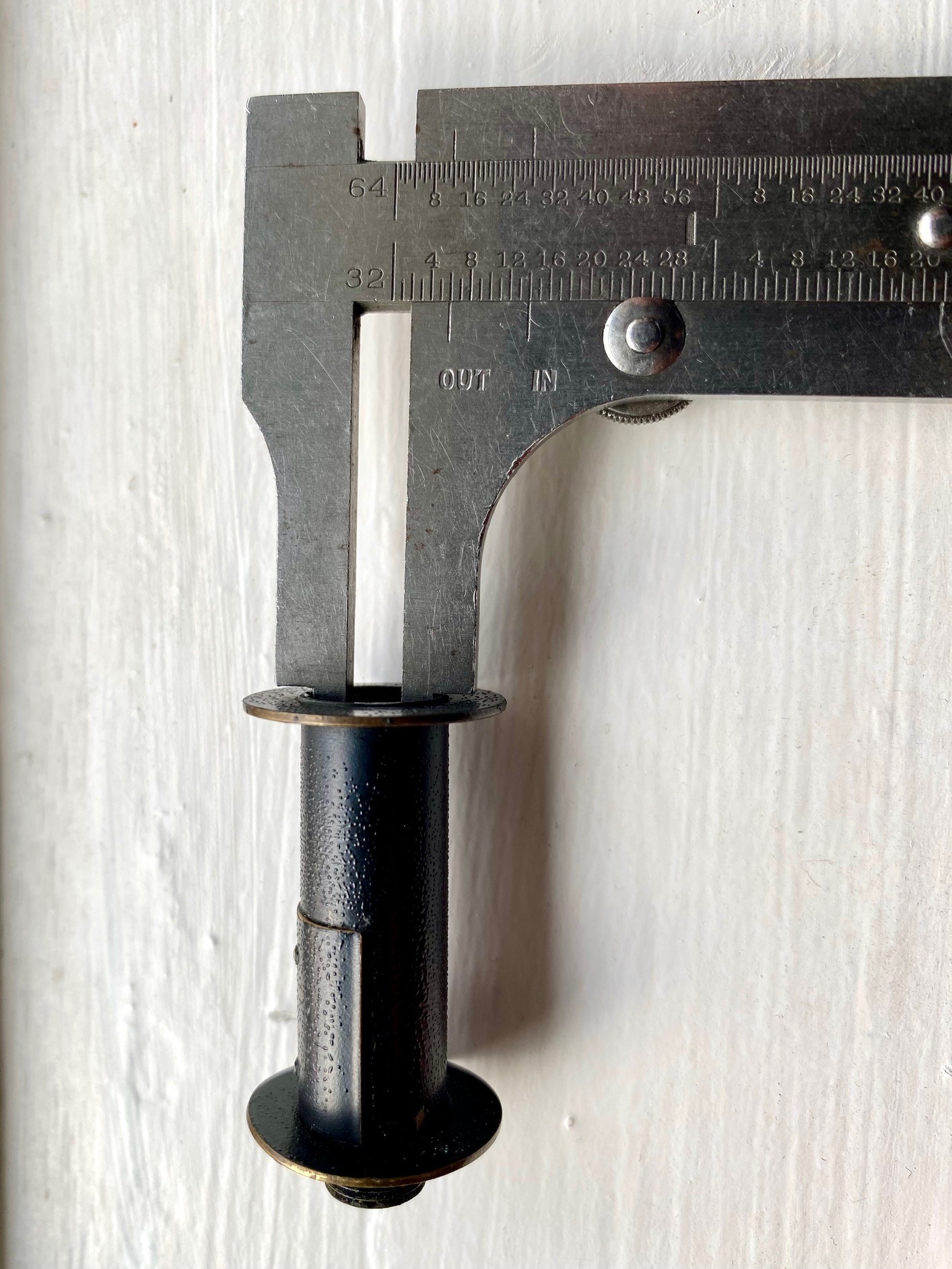

I measured two, one from a Zorki I and the other from a Fed 3. They are both 14/32". Sorry, I don't have a metric micrometer. are they supposed to be compatible with a Tenax?


Attachments

  • thumbnail_IMG_6766.jpg
    525.9 KB · Views: 34
OP
OP

MFstooges

Member
Joined
Feb 10, 2010
Messages
955
Format
35mm
I measured two, one from a Zorki I and the other from a Fed 3. They are both 14/32". Sorry, I don't have a metric micrometer. are they supposed to be compatible with a Tenax?

Thanks but I mean the other end. I don't have enough knowledge about tenax other than mine came with a wobbly spool that looks like generic ones and I suspect it is for Fed or Zorky. My Tenax has short stud on the bottom that mates with the spool and it has approx 5 mm diameter.


Dustin McAmera

Subscriber
Joined
Feb 15, 2023
Messages
601
Location
UK
Format
Multi Format
Is it the Tenax I, like this?


You might at least estimate the dimensions from that photo at Flickr.

Or, it looks like you could wind the film into a take-up cassette instead, if you can't make a spool fit well (of course, there's still a spool, in the cassette, but I suppose the cassette will steady the spool somewhat). I have a Voigtländer Vito that came without a spool, which works fine with two cassettes. You have still somehow to attach the film to the spool of the 'uptake cassette'; I use an old Ilford one which has ends that pop off easily, and use a scrap of tape to attach the film.

OP
OP

MFstooges

Member
Joined
Feb 10, 2010
Messages
955
Format
35mm

My question is about the size of fed/zorki spool. If the diameter of the lower hole is 5,mm or so then that's what I will buy.
I can use the current spool which has larger diameter. Like I said I have to use rubber grommet and the grommet falls off once in a while. I am sure it will fall and disappear.


M-88

Member
Joined
May 2, 2018
Messages
1,023
Location
Georgia
Format
Multi Format

Here are some dimensions that I took on Zorki I standard take-up spool:

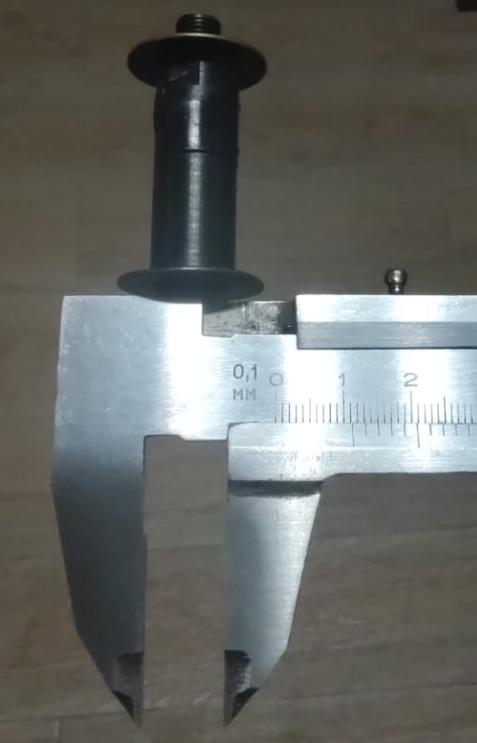

The lower hole is wider than 5 mm, it's 6.5 mm. In addition, the outer diameter of that threaded thing is 9 mm. Let me know if you need some more measurements!

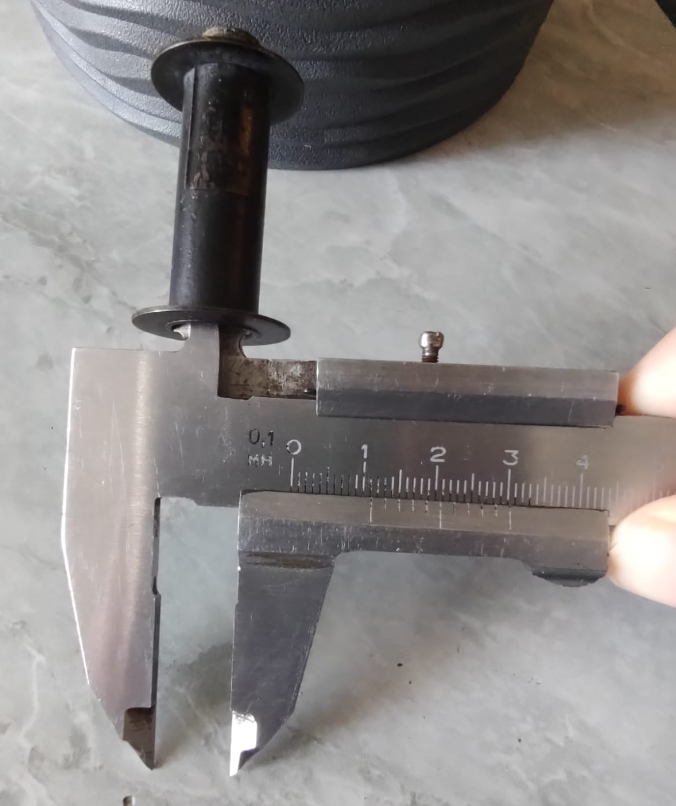

I have another spool as well, that one's from FED-2 camera and its hole is 4.5 mm wide.

OP
OP

MFstooges

Member
Joined
Feb 10, 2010
Messages
955
Format
35mm

Do you have pictures of the one with 4.5 mm?


M-88

Member
Joined
May 2, 2018
Messages
1,023
Location
Georgia
Format
Multi Format
Do you have pictures of the one with 4.5 mm?

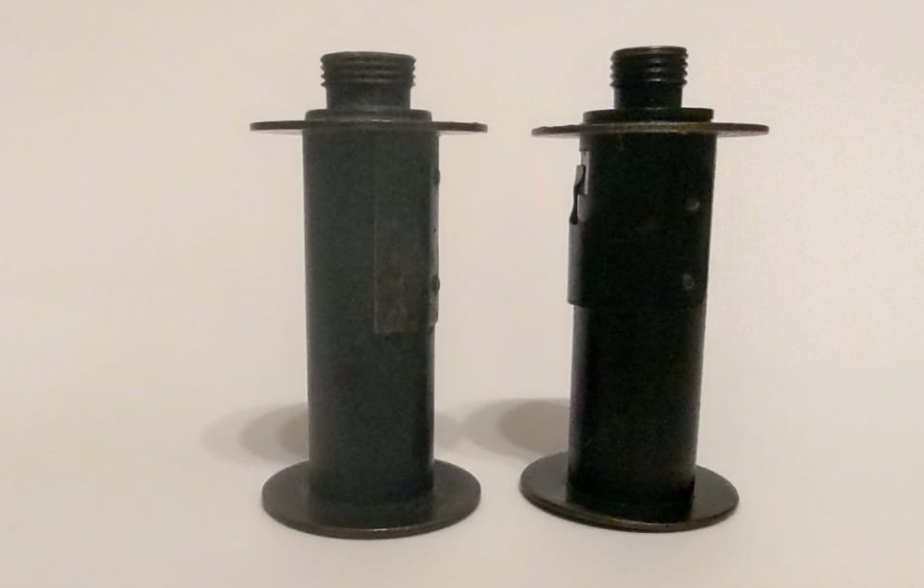

Sure! Here they are:








The spool of FED-2 is 44.5 mm long, the hole which accommodates the camera's advance shaft has a diameter of 11.2 mm, the hole on the other end has a diameter of 4.5 mm and the outer thread is 7.2 mm, or so.


Axelwik

Member
Joined
Apr 6, 2023
Messages
302
Location
Albuquerque
Format
Large Format
I measured two, one from a Zorki I and the other from a Fed 3. They are both 14/32". Sorry, I don't have a metric micrometer. are they supposed to be compatible with a Tenax?

Arithmetic is not hard folks - 14 divided by 32 = 0.4375", 0.4375" times 25.4mm per inch = 11.1mm
