Connecting Two Kodak Ektapro Projectors

[perkeleellinen]

Hello All,
I have two Ektapro 9010 projectors that I want to connect to do dual projector dissolves. The Ektapro uses a connection Kodak called "P-Bus' which is a RS232 design (I think). Here's a picture showing the set up I'm copying:

https://docplayer.net/docs-images/58/41882446/images/11-0.png

The user guide also confirms this is correct.

I cannot get my slave projector to work. The Master works fine with the IR Remote and if I switch projectors so the slave becomes master then it works fine. I'm sure both projectors are working right. I'm wondering if a basic RS232 male - male cable is the problem. Did kodak make the cable different to the RS232? Are the pins switching because it's male-male? There is a Kodak catalogue number for a dissolve cable.

Here's a photo showing a Kodak branded cable:

https://www.rvharvey.com/images-photo/ektapro07.jpg

Anyone know anything about this? Is my problem because I'm using a normal RS232 male-male cable?

Thanks!



[Chan Tran]

Hello All,
I have two Ektapro 9010 projectors that I want to connect to do dual projector dissolves. The Ektapro uses a connection Kodak called "P-Bus' which is a RS232 design (I think). Here's a picture showing the set up I'm copying:

https://docplayer.net/docs-images/58/41882446/images/11-0.png

The user guide also confirms this is correct.

I cannot get my slave projector to work. The Master works fine with the IR Remote and if I switch projectors so the slave becomes master then it works fine. I'm sure both projectors are working right. I'm wondering if a basic RS232 male - male cable is the problem. Did kodak make the cable different to the RS232? Are the pins switching because it's male-male? There is a Kodak catalogue number for a dissolve cable.

Here's a photo showing a Kodak branded cable:

https://www.rvharvey.com/images-photo/ektapro07.jpg

Anyone know anything about this? Is my problem because I'm using a normal RS232 male-male cable?

Thanks!

I always wish to have the Ektapro but never have one. If it's supposed to work like that then use a null modem adapter and try. Basically you want to swap pin 2 and 3. That is it's either pint 2- to 2, 3 to 3, and 5 to 5 or 2 to 3, 3 to 2 and 5 to 5.



[EarlJam]

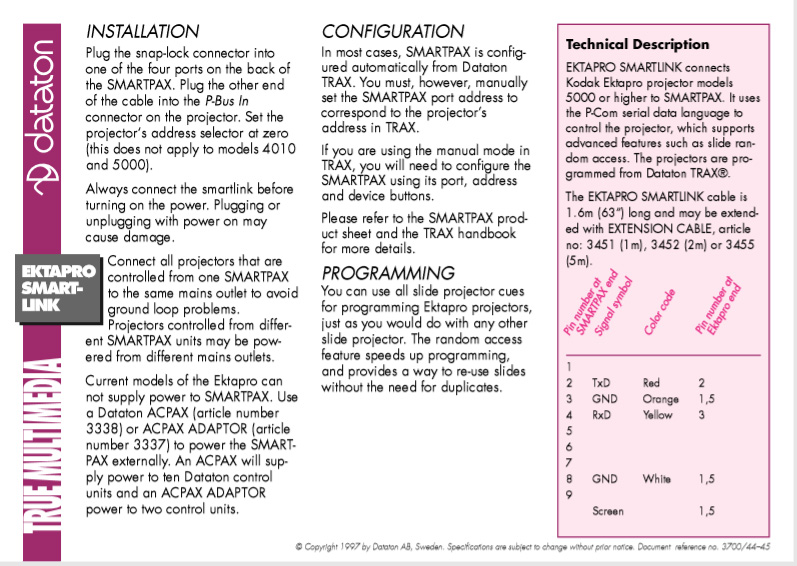

It's been a few decades since I last used a projector controller; kudos to you, Steve, for keeping this technology alive. Here's a pinout description for P-Bus port, from an old Dataton controller product sheet.

http://www.mediafab.com/mfi_menu/download/productsheets-a5.pdf



[perkeleellinen]

Thanks Both, very much. Looks like I need to cut open my RS232. Never done that before so I'll learn something new!

Found this that also has some details on RS232 cables: http://www.bb-elec.com/Learning-Center/All-White-Papers/Serial/FAQ-RS-232-Connections-That-Work.aspx

Will report back with progress.

Steve.



[Chan Tran]

Thanks Both, very much. Looks like I need to cut open my RS232. Never done that before so I'll learn something new!

Found this that also has some details on RS232 cables: http://www.bb-elec.com/Learning-Center/All-White-Papers/Serial/FAQ-RS-232-Connections-That-Work.aspx

Will report back with progress.

Steve.

Try the null modem adapter first. Also I don't think it needs all the connection but rather only 3 wires. Cutting the cable isn't a good solution. I think the Ektapro series projector are the best for 35mm. I don't think the Leica is better.
Anyway I hope they make some new projectors like the Ektapro but has USB interface with an app so you can do all the the stuff like disolving, sound track etc.. with a PC, Mac, tablets or smart phones.



[perkeleellinen]

Yeah, I read your post a bit closer and saw the null modem adapter solution!



[perkeleellinen]

Success! The null modem worked, thanks Chan. I made a little video; this is a hard cut:


Just for the record if anyone else finds their way here. You need a male-male RS232 cable and a male-female null modem adapter on one end. The cable needs to connect to the P-Bus in on both projectors. P-Bus out is only used when daisy chaining from a computer.



[perkeleellinen]

Anyway I hope they make some new projectors like the Ektapro but has USB interface with an app so you can do all the the stuff like disolving, sound track etc.. with a PC, Mac, tablets or smart phones.

It would be cool to be able to control via a tablet or phone. I've read about people connecting their pcs using software called Arduino. Perhaps the signal from the IR remote could be replicated so it could be transmitted via a tablet.

I'm very lucky to have these two Ektapros - they were given to me by someone stripping out an old AV room above a lecture theatre. I doubt they'd been used in ten years but they had been taken care of.

I'm going to write a few posts about projecting in the next week or so.



[Michael Firstlight]

I'll also day kudos keeping this alive!

My earliest experience using these was with a CP/M-driven AVL Eagle computer from the late 70's about the same size and shortly before the debut of the original IBM PC. We used the Eagle to sequence two dozen Eka projectors to soundtracks. The first Eagle computers were produced by Audio Visual Labs (AVL), a company founded by Chuck Kappenman in New Jersey in the early 1970s to produce proprietary large-format multi-image equipment. You can still find them on eBay now and then. We used those computer sequenced projectors driven by the Eagle to create massive 40 foot long by 20 foot high rear-projection corporate multimedia extravaganzas where I began my career. These were stunning, heart-stopping Hollywood-class analog multimedia productions for major corporate events, hosting thousands of employees, years before the emergence of mainstream computer-based multimedia as we know it today, became possible. Before that these sequenced projectors were controlled with (get this) - punched tape!

At times I entertained the thought of resurrecting a small scale setup as I also build vintage computers as a hobby, but it took a back seat to other ambitious vintage computer builds (I'm working on a vintage Actionmedia II DVI one at the moment).

Regards,
Mike



[Chan Tran]

It would be cool to be able to control via a tablet or phone. I've read about people connecting their pcs using software called Arduino. Perhaps the signal from the IR remote could be replicated so it could be transmitted via a tablet.

I'm very lucky to have these two Ektapros - they were given to me by someone stripping out an old AV room above a lecture theatre. I doubt they'd been used in ten years but they had been taken care of.

I'm going to write a few posts about projecting in the next week or so.

I am quite sure I can control the Ektapro via the RS-232 port and a PC. My programming knowledge is limited to the PC and I don't know USB interface well enough.



[perkeleellinen]

An interesting thread here: http://forum.arduino.cc/index.php?topic=144284.15

The last post about controlling a projector using an Apple remote in particular.

Here's a cool thread from a few years ago about multi projector slide shows: https://www.photrio.com/forum/threads/multi-slide-projector-dissolve-shows.66978/

Really great to hear memories of the old AV days. Michael - Punched tape! I read recently here about someone using pulses from a VHS recorder to sync slides to music.
