Canon AE-1 Program, focusing screen question

Stephen Winter

Member
Joined
Jan 30, 2017
Messages
2
Location
Rhode Island
Format
35mm
Hello,
I recently purchased a Canon AE-1 program and everything is fine except for the image in the viewfinder not being clear. You are able to see circles inside the viewfinder which are identical to what I found on the focusing screen. I don't know much about this camera and where to go from here. Is there a way to get rid of the circles that are viable? Cleaning or repair? Any input would be greatly appreciated!
Thanks,
Stephen


Attachments

  • IMG_1416.JPG
    398.4 KB · Views: 478

AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format
I never saw such artefact.

Do I understand correctly that you made this photograph through the eyepice? What was in front of the camera?
You see this pattern too, when you look from the front into the mirrobox, up onto the screen underside?

Modern screens do have a moulded-in lens that we call fresnell-lens. That got a a circular grid pattern, but should not be visible that promininent in a screen

Last edited:

AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format
A wild guess would be that somehow that lens grid got filthy, thus pronouncing that grid structure.

OP
OP

Stephen Winter

Member
Joined
Jan 30, 2017
Messages
2
Location
Rhode Island
Format
35mm

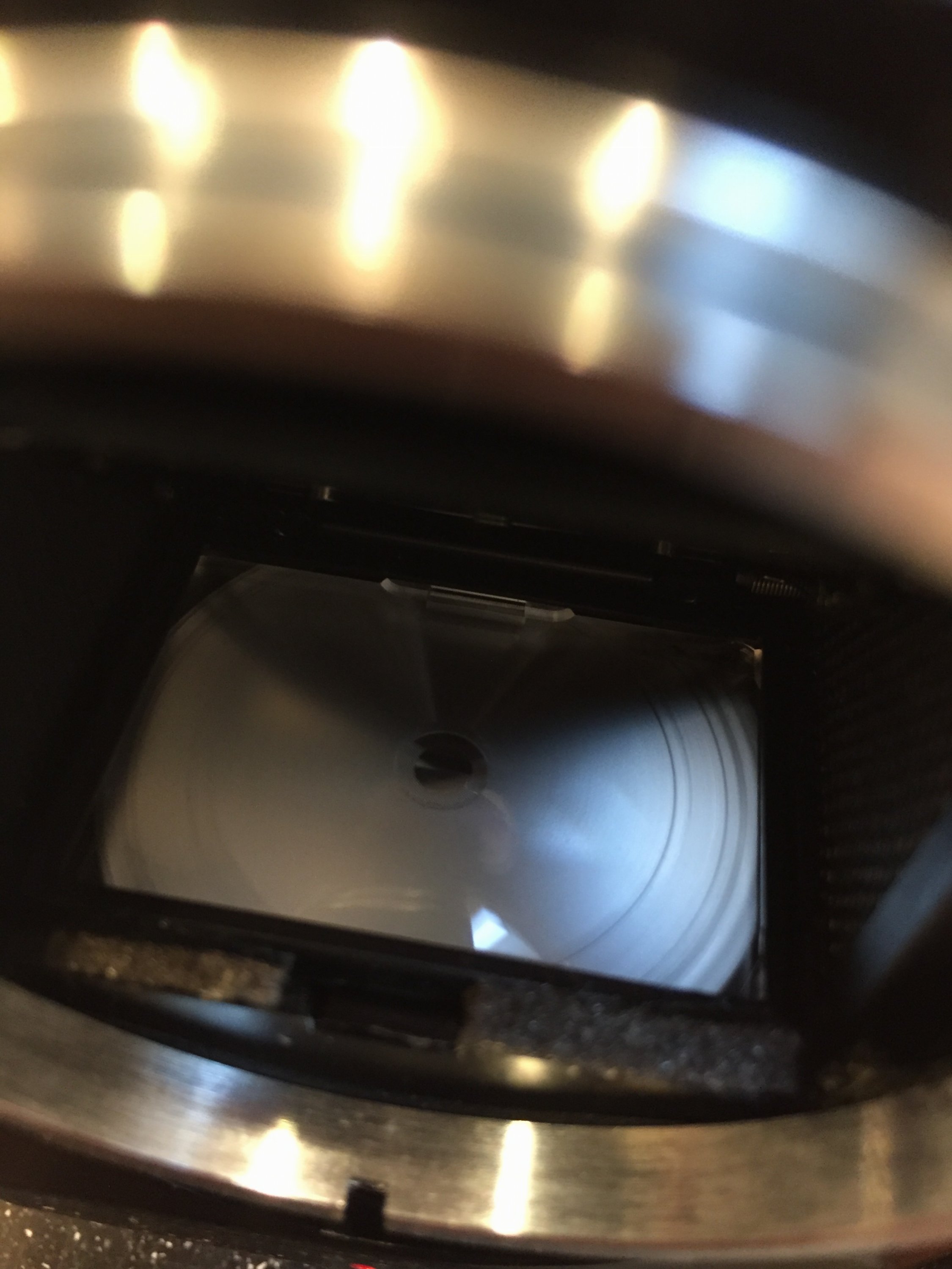

Yes the photo I took was through the eyepiece and it was just a tile wall in the frame. I added a picture of the focusing screen and how the circles are on that as well..


Attachments

  • IMG_1420.JPG
    479.6 KB · Views: 174

John Koehrer

Subscriber
Joined
Apr 3, 2004
Messages
8,277
Location
Aurora, Il
Format
Multi Format
The AE 1Program has user replaceable screens. Not very expensive <$20
There may be a how-to on youtube.
