Besler 45 Color Head Timer cable pinouts

[Joe Pitz]

Hi, just picked up a Besler 45 Color Head older model to the 45S. Does anyone know the pinouts of the timer cable? This cable connects to the 6 pin adapter on the color head to the AC plug for the timer.

If no one knows, could someone take an ohm meter and check for me. I would need which pins on the 6 pin connector give continuity to the two pins on the AC connector. Please use the pins facing the front of the color head as a reference.

Thanks

Joe



[George Nova Scotia]

Is this the Colour Computer version with the digital readouts? If so I should be able to get the info tomorrow for you if no one beats me to it.



[Joe Pitz]

Yes George, I have the digital readouts on the color head.

Thanks



[George Nova Scotia]

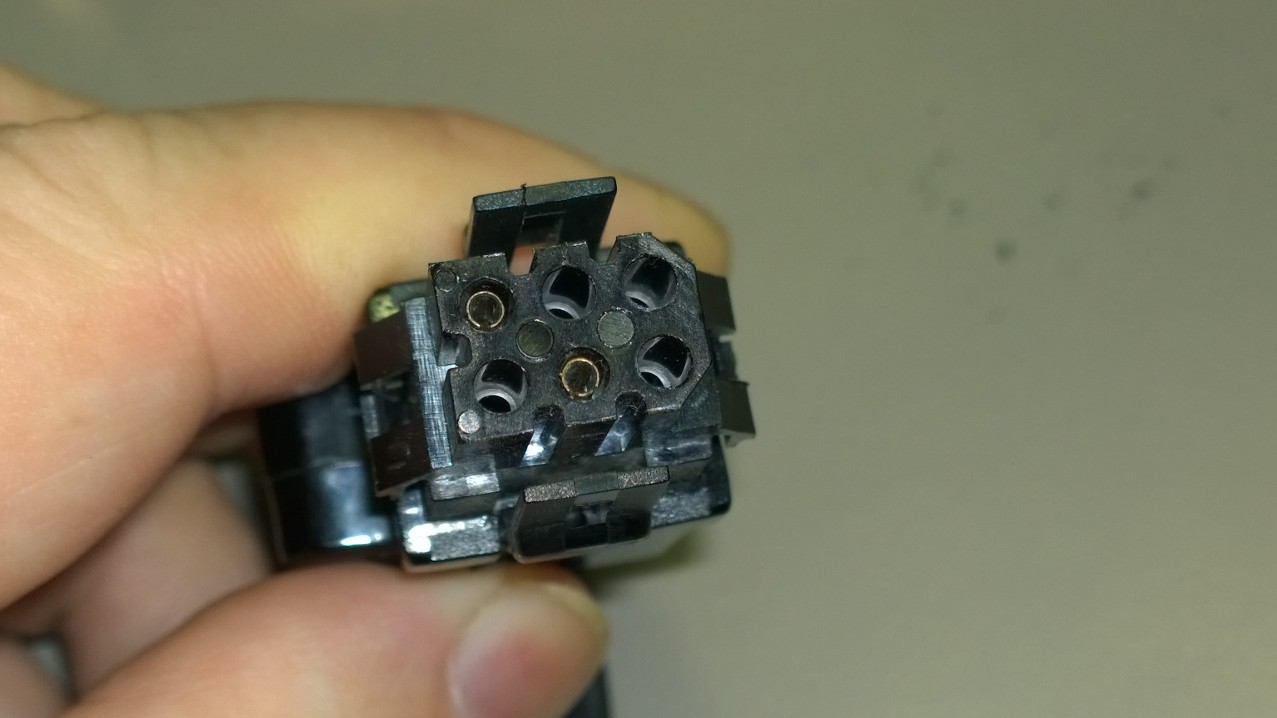

Only two pins in the cable side. Hope you see in picture. Center pin in front row, left nearest side in back row. AMP marked on connector.



[Joe Pitz]

Thanks so much George.

Joe



[George Nova Scotia]

Just be carefully you need to put 120VAC on there, and welcome to Photio.
