Beseler 23 Lensboard Ring

[RandomRay]

Ok, I've got an interesting problem.

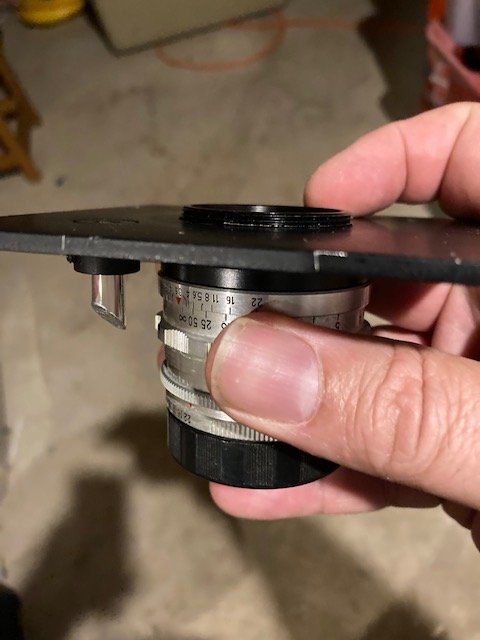

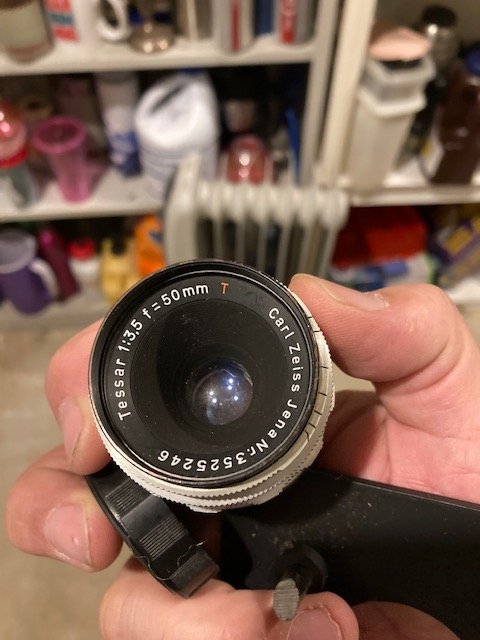

I have a nice Carl Zeiss Jena Tessar 50mm lens to us and an enlarger lens. It has an M42 to enlarger adapter, but I don't have the Ring to mount it to the lensboard. Where could I find such a Ring???

Please see attached images.



[Doremus Scudder]

There are lots of retaining rings on eBay; search to see if one in the size you need is available, or a flange. If not, a fine-mechanic like Steve Grimes company can make one for you custom.

In the meantime, some have used Masonite or similar with a slightly smaller hole than the threads and force-threaded it onto the lens threads as a temporary retaining ring. Hot glue works too and is easily removable I'm told (no personal experience).

Best,

Doremus



[logan2z]

Is this what you're looking for?

https://www.bhphotovideo.com/c/product/4498-REG/Beseler_8095_Jam_Nut_for_39mm.html



[RandomRay]

Thanks! I hadn't even considered B&H. Yet another order!!



[cowanw]

For the record
Jose in Portugal is very good at various darkroom rings and such. highly recommended.
https://customphototools.com



[aoresteen]

For the record
Jose in Portugal is very good at various darkroom rings and such. highly recommended.
https://customphototools.com

Thanks! I ordered one of his rings to let me use L39 enlarging lenses on my M42 bellows.
