Sold Antique brass lens Dallmeyer Rapid Rectilinear (UK, 1884) w/lens flange

[Manual Camera]

antique brass lens from the English lens maker John Henry Dallmeyer, established in London in 1860

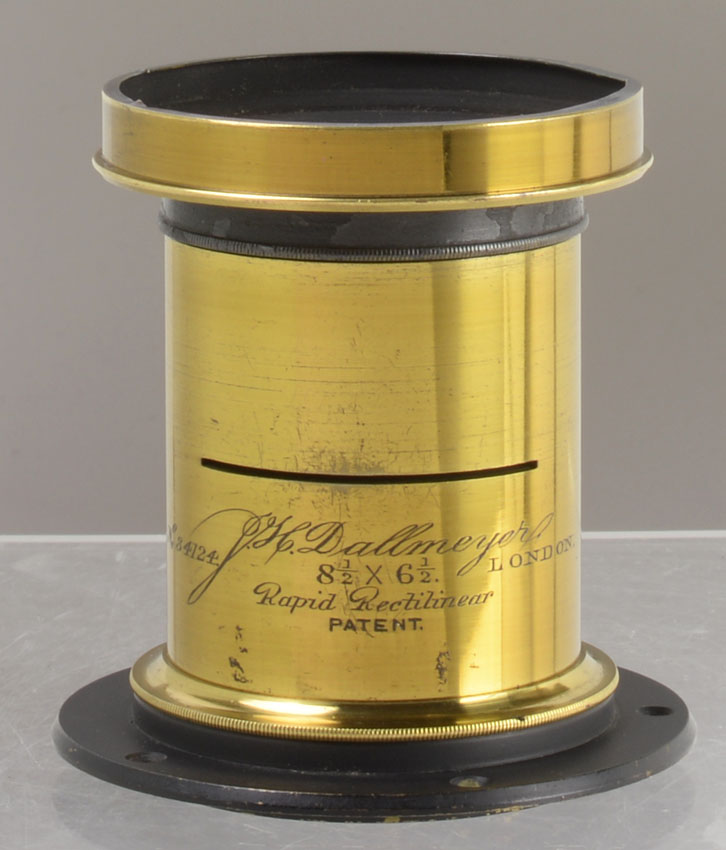

engravings:

J.H. Dallmeyer
N 34124
London
8½ x 6½
Rapid Rectilinear
Patent​

focal length: it seems to be about 290mm
diaphragm: it seems to be about f/7.5
f/stops: slot for Waterhouse Stops
height (with lens hood): 70mm
frontal diameter (lens hood): 58mm
image circle: about 40cm; even that it was intended for 8½ x 6½ plates, its coverage is still enough for a 10x12" plate
weight (with lens flange): 255g

symmetrical optical design (4 elements, 2 groups)
it is a convertible lens: if the the frontal element is unscrewed, the lens gives double focal length and increased coverage

excellent condition, it keeps its original lacquer
glasses: clean and clear
there is no fungus, haze or separation

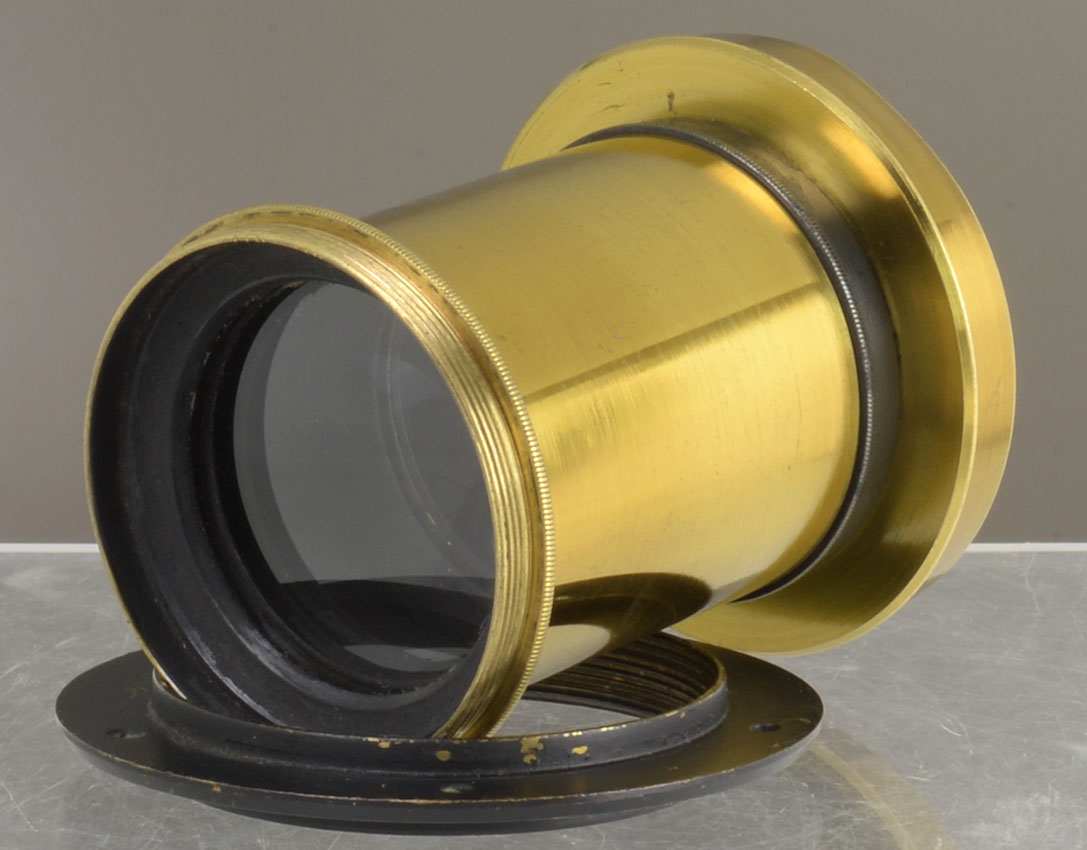

comes with lens flange

price: $225

Shipping cost to Europe: $12.50
USA, Canada, Australia, China, Japan, and all other countries: $16.50

parcels shipped from Europe
(insured, registered, with track and trace on internet)

payments:
Bank Transfer preferred (Wise, Revolut)
PayPal also accepted

__ other antique and collectible cameras and lenses also available, send me a PM for further information __​



🛡️ Classifieds Safety Reminder: Please stay safe when buying and selling. Scams via hacked accounts are on the rise globally.

Best Practices: Always use a verified payment method with buyer protection (avoid "PayPal Friends & Family"). Services like Escrow.com are highly secure. Be suspicious of random unsolicited contact via Private Message. If you see suspicious behavior, please use the Report link on the post immediately.

[Ian Grant]

The serial number is roughly 1883/4. It's an 11" f8 lens, it covers Whole Plate 8½" x 6½" (as marked) at wider apertures and 10x8 at smaller apertures according to Dallmeyer's own adverts.

Ian



[Manual Camera]

According to the Dallmeyer archives, this lens was made in 1884, as saying in the title.
Dallmeyer was established in London in 1860.

And, according to its inscription, the lens was intended to 8½x6½" plates, as saying on the description.
