AE, strobo level, EE tester: What exactly do these abbreviations and technical terms in service manuals mean?

[Andreas Thaler]

The service manuals for the Minolta 7000 AF and 9000 AF use these abbreviations/technical terms, among others.

Does anyone know what they mean exactly?

• AE
• Strobo level
• SS adapter
• EE tester
• MZ checking
• Pitch adjusting
• Yaw adjusting
• EZ adjusting



[Andreas Thaler]

The service manuals for the Minolta 7000 AF and 9000 AF use these abbreviations/technical terms, among others.

Does anyone know what they mean exactly?

• AE [Exposure metering - auto exposure?]
• Strobo level [Strobe? Time that a flash lights up]
• SS adapter
• EE tester [Light box for testing light meters and automatic exposure?]
• MZ checking [In connection with AF adjustment.]
• Pitch adjusting [In connection with AF adjustment.]
• Yaw adjusting [In connection with AF adjustment.]
• EZ adjusting [In connection with AF adjustment.]

What I found out about it.

See above in brackets.



[Sirius Glass]

The answer for all the above questions can be found in the operation manual for the Minolta 7000 and 9000 which you can download from https://www.butkus.org/chinon/ at no cost, but if you find the downloaded manuals then please donate $3US each to support his free service.



[Andreas Thaler]

The answer for all the above questions can be found in the operation manual for the Minolta 7000 and 9000 which you can download from https://www.butkus.org/chinon/ at no cost, but if you find the downloaded manuals then please donate $3US each to support his free service.

You mean I can find explanations for these technical terms in the user manuals? Unfortunately, there's nothing there. I know them, but I'll take another look.



[Andreas Thaler]

EE: exposure error

Operating Manual v2.9

DIY Film Camera Tester. Contribute to srozum/film_camera_tester development by creating an account on GitHub.

github.com

SS: shutter speed

MZ checking: Checking of CCD image sensor positioning

Pitch adjusting: Adjustment of CCD image sensor tilting

Yaw adjusting: Adjustment of CCD image sensor tilting

Strobo level adjusting: Time measurement from flash firing to firing-stop signaling.

—

Minolta Service Manuals for 9000 AF and 7000 AF



[Andreas Thaler]

AE: auto exposure

Exposure meter - Camera-wiki.org - The free camera encyclopedia

camera-wiki.org



[Sirius Glass]

• Pitch adjusting
• Yaw adjusting

Pitch, roll, yaw is the coordinate system used for boats, ship, aircraft, and spacecraft: Pitch, roll, and yaw are the three axes of movement for an aircraft. Pitch refers to the up and down movement of the nose, roll is the side-to-side tilting of the wings, and yaw is the rotation of the nose left or right around a vertical axis.

Interactive examples are located @ https://howthingsfly.si.edu/flight-dynamics/roll-pitch-and-yaw



[ic-racer]

Pitch adjustment is tilting the autofous sensor from top to bottom.

Yaw adjustment is spinning the autofocus sensor on the optical axis.

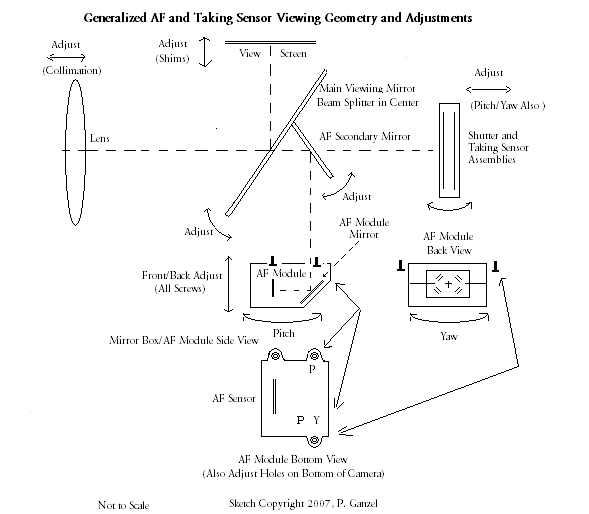

This diagram mayhelp:



[Andreas Thaler]

@Sirius Glass @ic-racer

Thanks!

Now we have finally arrived in aeronautics!



[Andreas Thaler]

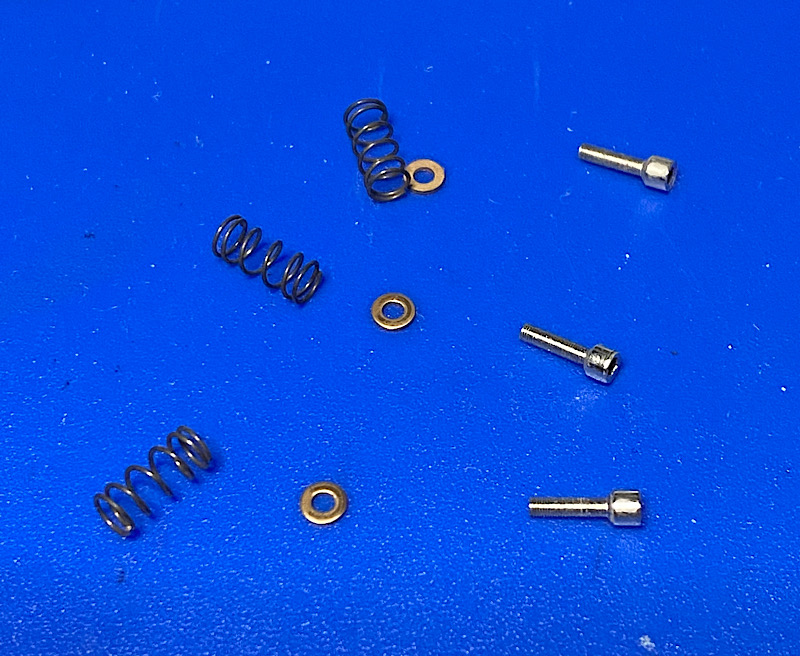

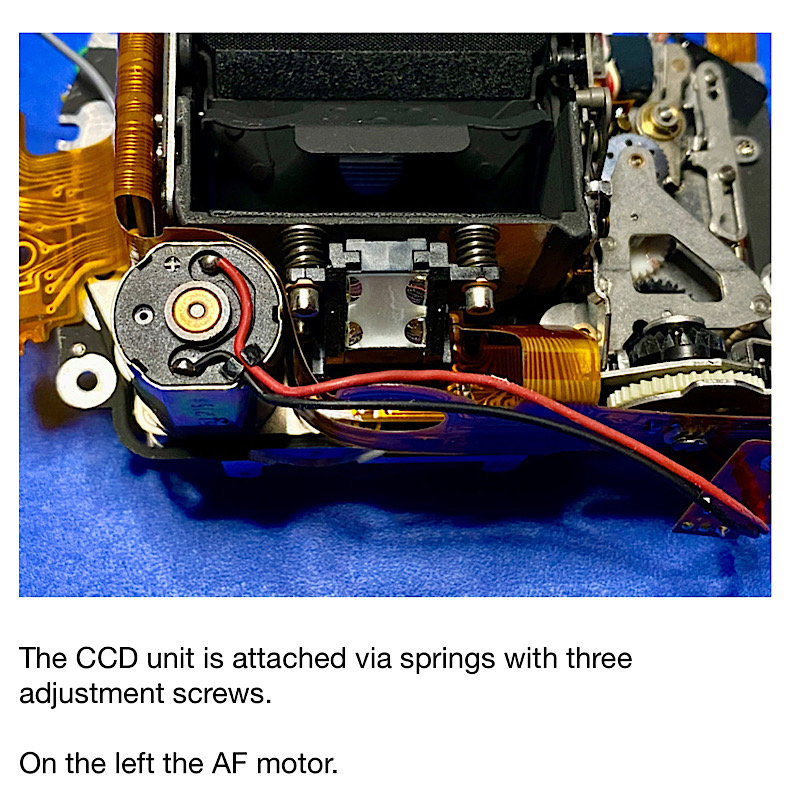

The AF is therefore adjusted on three axes, which is achieved on the Minolta 7000 AF and 9000 AF using spring-loaded screws.

Minolta (Maxxum/Alpha) 7000 AF: Recommendations and notes, extended technical details for DIY repairs

Based on my repair experience with the Minolta 7000 AF with regard to typical issues and repair options, I would like to give a summary of my findings and solutions. All listed problems can be solved with relatively little effort. The camera always forms the smallest aperture in all modes...

www.photrio.com

In the C & C Associates Troubleshooting Guide, Larry Lyells describes an alternative adjusting of the AF system that eliminates the need for Minolta's exclusive, unavailable I/O tester.

That will also be a project here.
