I have an old Gitzo tripod with only a screw mount. Is there an adapter I can use to make it quick release?


wiltw

Subscriber
Joined
Oct 4, 2008
Messages
6,388
Location
SF Bay area
Format
Multi Format
Many tripods allow removal of the entire head from the column, so a new head with QR can be fitted.

Other tripods have heads with removable baseplates at the top of the head, so threaded baseplate can be removed and fitted with a QR base

Sometimes removal of the existing head/baseplate entails loosening a setscrew on the underside.

Look for either removeable baseplate or removable head in your Gitzo. You might let us know which specific Gitzo head is on the tripod, or which Gitzo tripod. Likely someone has experience with that specific unit.

Last edited:

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
50,223
Location
Southern California
Format
Multi Format
Absolutely. The easiest way is to replace the tripod head with a quick release adapter.


Don_ih

Member
Joined
Jan 24, 2021
Messages
7,453
Location
Ontario
Format
35mm RF
There are quick release add-ons you can buy. I have one (didn't even know what it was when I first saw it) branded Cullmann. That company still seems to make such things.


Pieter12

Member
Joined
Aug 20, 2017
Messages
7,533
Location
Magrathean's computer
Format
Super8
There are many sources for quick release clamps. Novoflex, Really Right Stuff, Acratech, Kirk and Leofoto all use the Arca Swiss system. And of course, Arca Swiss.


StanMac

Member
Joined
Aug 26, 2016
Messages
164
Location
Tennessee
Format
Multi Format
This is a bit more affordable


the QR base will mount to your tripod screw mount base plate. You then have a QR base for the accompanying plate.

stan


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
52,235
Location
Delta, BC Canada
Format
Medium Format

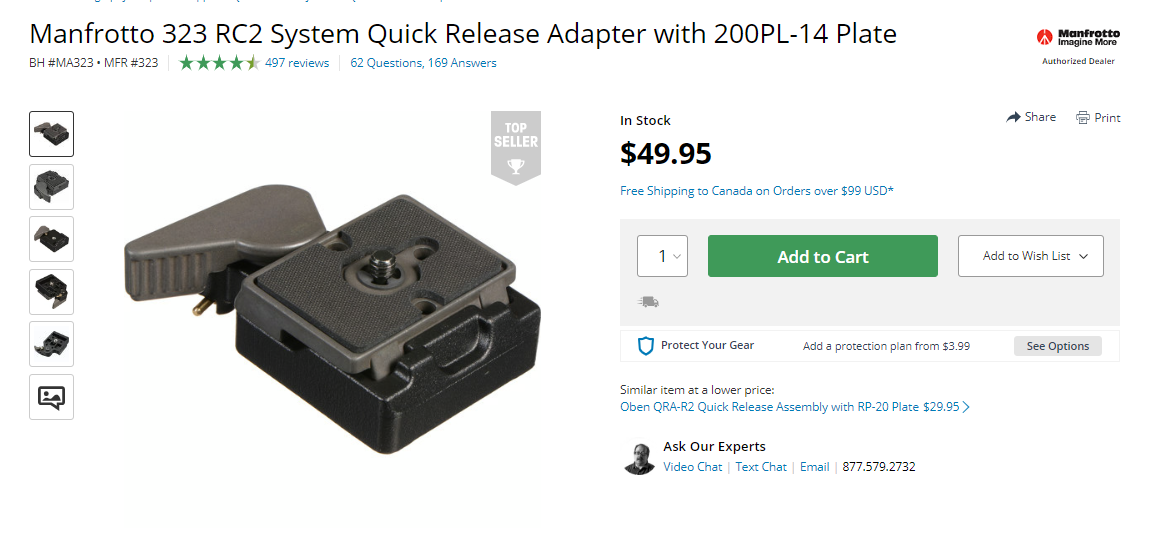

I bought a Manfrotto version for a Monopod because I had Manfrotto tripod heads designed for Manfrotto quick release plates.
Here is the B&H listing for the current version: https://www.bhphotovideo.com/c/product/554141-REG/Manfrotto_323_323_RC2_System_Quick.html
