100mm filter holder on a 95mm diameter lens

[peter2022]

Hello,

I am thinking of using a 100mm filter holder:

ARMOUR Filter Holder Set incl. CPL and 2 Frames

The Kase ARMOUR Filter Holder in the set is a very good start to your Kase ARMOR experience. The ARMOR filter holder and adapter are included. The…

kasefilter.eu

with 100x150mm filter:

K100 Wolverine Hard GND 0.9 3 Stops 100x150mm

The Kase Wolverine K100 100x150mm Hard Grad GND 0.9 (3 f-stops/3 stops) graduated filter is ideal for shooting in difficult lighting conditions.…

kasefilter.eu

on a 95 mm filter size lens:

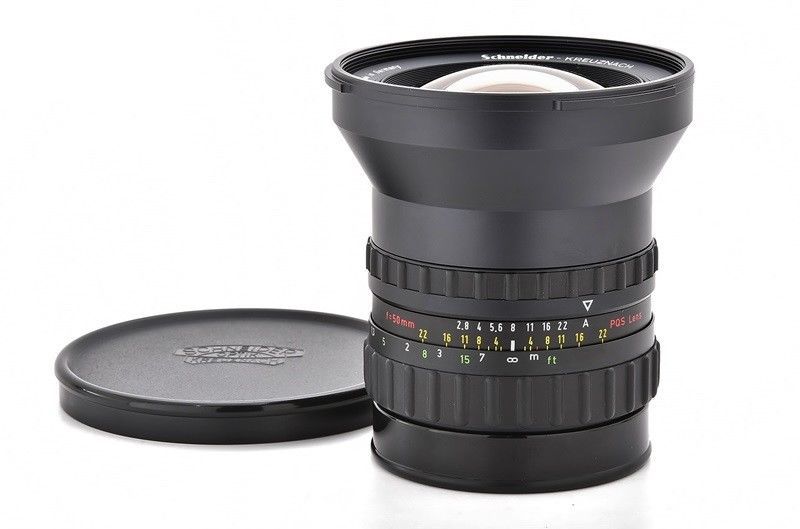

Schneider-Kreuznach Super-Angulon HFT 50mm F/2.8 PQS

Wide-angle prime lens. Announced: September 1992. Production status: Discontinued. Maximum format: Medium format 6x6. Mount: Rolleiflex SLX. Fast speed. Floating element system. Built-in leaf shutter. Manual focus only. Automatic diaphragm. Heavy.

lens-db.com

Is the filter too narrow so that it will vignette? Should I use a 150x150mm filter (and relative filter holder)?

Thanks!



[gone]

If you're attaching a filter to the lens that is bigger than the threads on the front of that lens, you should be fine. Trouble may come if you put a smaller filter on your lens, not a bigger one.



[peter2022]

If you're attaching a filter to the lens that is bigger than the threads on the front of that lens, you should be fine. Trouble may come if you put a smaller filter on your lens, not a bigger one.

Thanks!



[Scott J.]

You can also get a custom-made holder for 100mm-wide square and rectangular filters from S.K. Grimes in Rhode Island. Unlike the filter holders from Lee and others that require threaded adapter rings, the S.K. Grimes custom holder slips directly onto the outer diameter of the lens barrel so that the filter holder is flush with the front of the lens (hence, no vignetting). It uses a large rubber O-ring to maintain frictional contact with the outer metal surface of the lens barrel. I have one that slips onto the center filter (#IVb) for my Schneider 72mm Super-Angulon XL so that I can use square/rectangular filters with the center filter. The outer diameter of the IVb center filter is pretty massive at 112mm, but despite it being so big, I don't get any vignetting.

The holder comes with two filter slots and works pretty much like the Lee holder (i.e., plastic spring-like clips that hold the filters firmly in place). It was well worth the $215 I paid for it in 2021. They can custom make one for pretty much any lens barrel diameter.



[Alan Edward Klein]

Hello,

I am thinking of using a 100mm filter holder:

ARMOUR Filter Holder Set incl. CPL and 2 Frames

The Kase ARMOUR Filter Holder in the set is a very good start to your Kase ARMOR experience. The ARMOR filter holder and adapter are included. The…

kasefilter.eu

with 100x150mm filter:

K100 Wolverine Hard GND 0.9 3 Stops 100x150mm

The Kase Wolverine K100 100x150mm Hard Grad GND 0.9 (3 f-stops/3 stops) graduated filter is ideal for shooting in difficult lighting conditions.…

kasefilter.eu

on a 95 mm filter size lens:

Schneider-Kreuznach Super-Angulon HFT 50mm F/2.8 PQS

Wide-angle prime lens. Announced: September 1992. Production status: Discontinued. Maximum format: Medium format 6x6. Mount: Rolleiflex SLX. Fast speed. Floating element system. Built-in leaf shutter. Manual focus only. Automatic diaphragm. Heavy.

lens-db.com

Is the filter too narrow so that it will vignette? Should I use a 150x150mm filter (and relative filter holder)?

Thanks!

How are you attaching the Armour filter holder? The filter is also only 95mm the same as the lens so you might vignette.

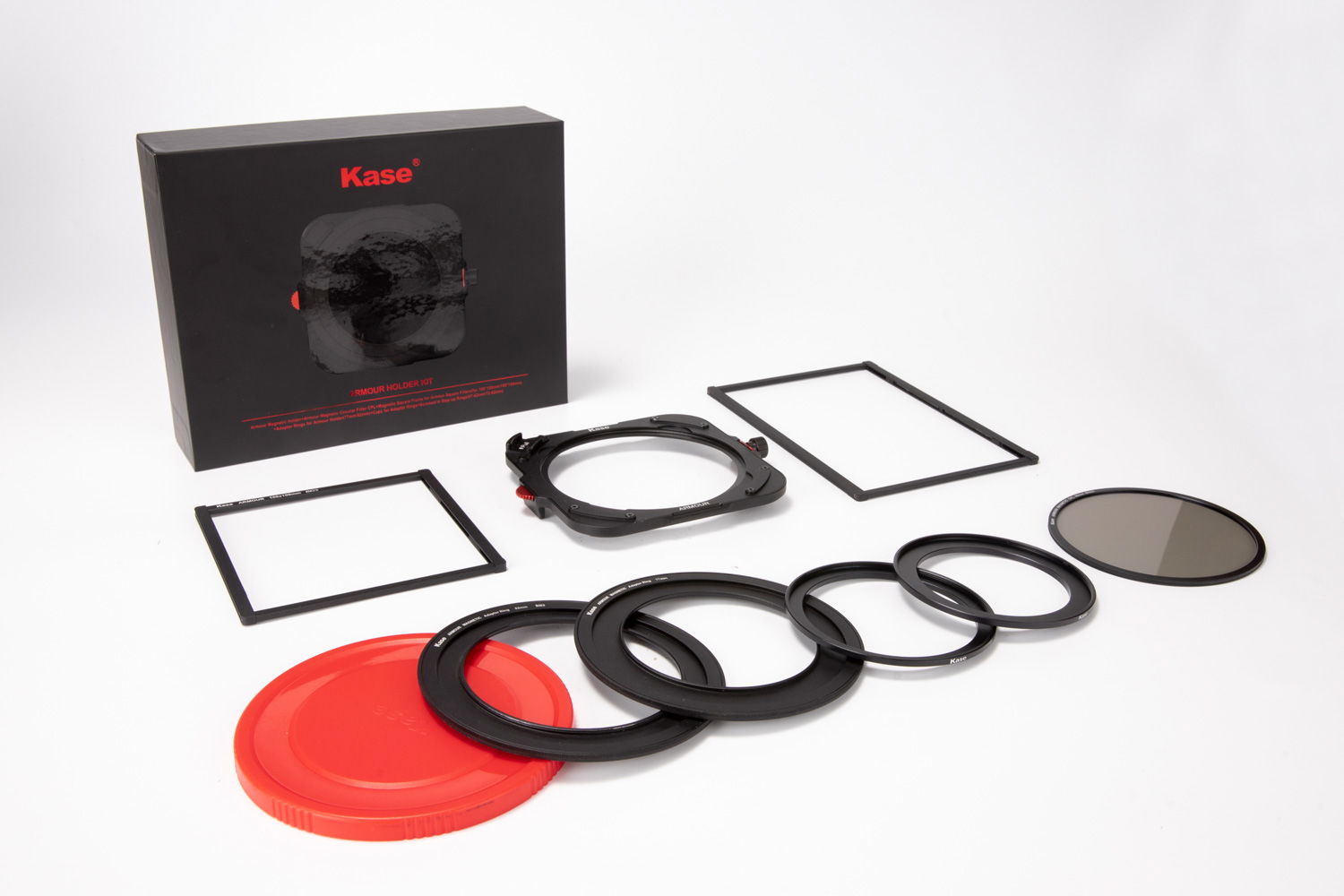

Here what's included with the Armour stuff you linked to:

• 1x 100mm ARMOUR aluminum Filter Holder
• 1x 95mm ARMOUR Magnetic Polarizing Filter
• 2x magnetic base adapter rings: 77-95mm & 82-95mm
• 2x screw-in step up adapter rings: 67-77mm & 72-82mm
• 1x magnetic frame made of aluminum 100x150mm
• 1x magnetic frame made of aluminum 100x100mm
• 1x lens cap made of plastic
