Where to find 6x6 camera bellow replacement?

Recent Classifieds

Forum statistics

Threads
179,386
Messages
2,469,233
Members
94,805
Latest member
adam m
Recent bookmarks
0

jim10219

Member
Joined
Jun 15, 2017
Messages
1,635
Location
Oklahoma
Shooter
4x5 Format
Which camera? Sometimes for the more popular cameras, you can find bellows on eBay. That's usually a much cheaper route than buying custom made bellows. That's what I did for my Anniversary Speed Graphic. I couldn't find the exact bellows, but I found some other ones that were almost identical and worked great with just a little bit of modification. It was nothing serious and probably saved me over $100 compared to having custom bellows made.

Though for some cameras, your only options are pulling some off another, similar camera, or custom made (whether done by you or someone else).

OP
OP
marciofs

marciofs

Member
Joined
Jul 8, 2011
Messages
802
Location
Hamburg
Shooter
Medium Format
Which camera? Sometimes for the more popular cameras, you can find bellows on eBay. That's usually a much cheaper route than buying custom made bellows. That's what I did for my Anniversary Speed Graphic. I couldn't find the exact bellows, but I found some other ones that were almost identical and worked great with just a little bit of modification. It was nothing serious and probably saved me over $100 compared to having custom bellows made.

Though for some cameras, your only options are pulling some off another, similar camera, or custom made (whether done by you or someone else).

I think it is worth buy a new one and be sure it will last longer.


bunip

Member
Joined
May 13, 2012
Messages
275
Location
Parma, Italy
Shooter
Multi Format
what is that make you think a camera bellow made today will last longer than one made 50/70 years ago?


barzune

Member
Joined
Mar 28, 2010
Messages
282
Location
Ontario
Shooter
Multi Format
-
Which camera? Sometimes for the more popular cameras, you can find bellows on eBay.

We still do not know which camera, and having searched the OP's various posts, I find it both confusing, and difficult to advise him.

About a year ago, I purchased a brand-new bellows, original from the manufacturer's recommended outlet, for a 6X6 camera;

I haven't used this item, and am unlikely to, but it would be interesting, at the very least, to know the, apparently secret, requirement from the OP.


jim10219

Member
Joined
Jun 15, 2017
Messages
1,635
Location
Oklahoma
Shooter
4x5 Format
what is that make you think a camera bellow made today will last longer than one made 50/70 years ago?
Agreed. There are many cameras out there with 100+ year old bellows that are still just as good as new. They tended to make bellows out of better materials back then. In fact, look up how to make your own bellows. The number one issue everyone faces is finding good material to make the bellows from. And unfortunately, this limitation effects not just the average DIYer, but also camera makers and customer bellows shops. 50 years ago when view cameras were quite common, good bellows material was a lot easier to come by.

Anyway, in my first post I was talking about buying brand new bellows off eBay, not necessarily used ones. There are several makers who sell there for a lot less money than you'll find from a custom maker. The catch is, they may or may not have the bellows you're looking for available for sale. That's why I asked which camera you need the bellows replaced on. If it happens to be a rare camera, then you're pretty much left to DIY or custom made.

OP
OP
marciofs

marciofs

Member
Joined
Jul 8, 2011
Messages
802
Location
Hamburg
Shooter
Medium Format
what is that make you think a camera bellow made today will last longer than one made 50/70 years ago?

ADOX Golf 63 is the camera.
I think brand new things last longer than used things.
The price for a new one is €50 which seems to be a good price.
But I have been thinking if instead of a bellow, I just use a fabric instead. A kind of fabric that light does not go through.


My doubt now is how to disable the camera in order to remove the damaged bellow and replace for an other one.


bunip

Member
Joined
May 13, 2012
Messages
275
Location
Parma, Italy
Shooter
Multi Format
for the price you’ll spend on repairing you could buy some better and similar camera. I have an adox 63 with the adoxar 6,3 lens that bought in very nice shape on the auction site for 15 euro

OP
OP
marciofs

marciofs

Member
Joined
Jul 8, 2011
Messages
802
Location
Hamburg
Shooter
Medium Format
for the price you’ll spend on repairing you could buy some better and similar camera. I have an adox 63 with the adoxar 6,3 lens that bought in very nice shape on the auction site for 15 euro

I Know. I bought mine in a very good condition for €10 in a flea market. But it came with bellow light leak. I can buy a second and third one and still risk that, or have the probem appearing soon since I use my cameras very often. For this reason I am willing to spend the €50 and be sure I won't have to worry about my camera anytime soon.

I am looking forwards to buy one or two more of Adox Golf or similar. If you know where I can find them on good condition, pleas let me know. I use them for travel and street photography but I am starting a new business and I want use them professionally. so it is good for me to have some back ups.


choiliefan

Member
Joined
Dec 27, 2013
Messages
1,049
Shooter
Medium Format
Several folks suggest using a 3M mylar? tape for patching bellows.
Others suggest liquid electrical tape.
I've used book-binding tape on a couple of shooters and it works quite well.

OP
OP
marciofs

marciofs

Member
Joined
Jul 8, 2011
Messages
802
Location
Hamburg
Shooter
Medium Format
Several folks suggest using a 3M mylar? tape for patching bellows.
Others suggest liquid electrical tape.
I've used book-binding tape on a couple of shooters and it works quite well.
I have been using book-binding tape so far, but there are so many holes in my bellow, and so many book-binding tape, that when folding it is getting the double of its size. haha.


thuggins

Member
Joined
Jan 12, 2008
Messages
1,130
Location
Dallas, TX
Shooter
Multi Format
A second recommendation for the Custom Bellows folks. Great quality and a pleasure to work with. The most expensive part was the postage to ship the old bellows over to them (they do require that).

The 3M tape you want is 850 in black. It is very expensive for the full rolls, but in the US (at least) you can get a few yards respooled for less than 10 bucks. It is less than .002" thick (.05mm) so you can cover the entire bellows and still have no problem with the thickness. The only places I haven't been able to apply it is the last two convolutions or so inside the body and the side of the bellows facing the lens door. Do not use liquid electrical tape!!!!!!!! That experiment was the start of my association with the folks at Custom Bellows.

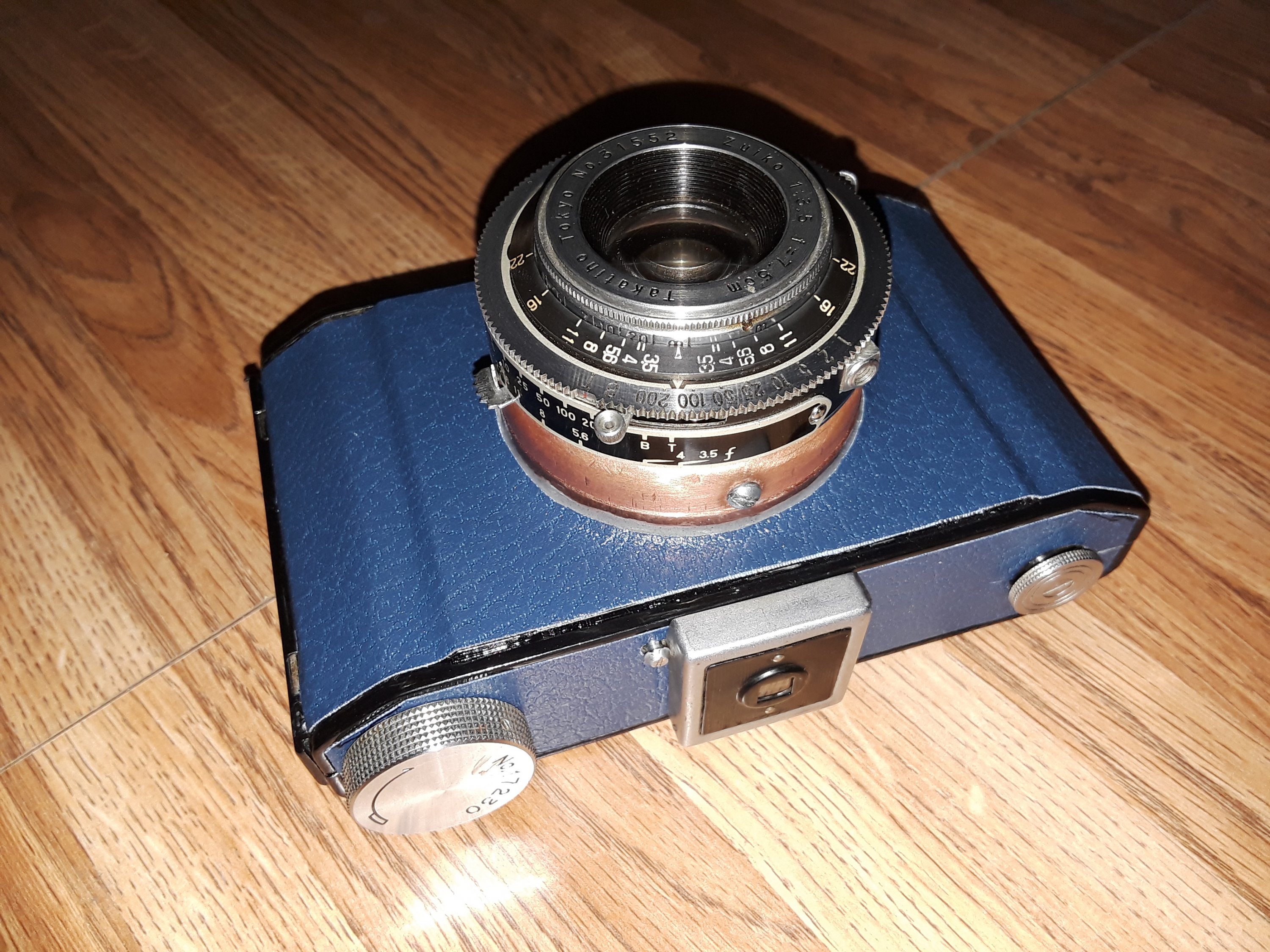

I have thought quite a bit of some sort of fabric bag, but the problem is that it will certainly touch the emulsion at some point. One other possibility is this route that I took with an old Olympus Six.

20180119_123448.jpg 20180119_123622.jpg
