weird lens rendering, nighttime

Forum statistics

Threads
177,133
Messages
2,429,985
Members
94,143
Latest member
helimat
Recent bookmarks
0

Noah B

Member
Joined
Aug 20, 2013
Messages
27
Location
Los Angeles
Shooter
Multi Format
Hey all, I've been doing a few tests with a couple lenses: Micro Nikkor 55mm f/2.8 AIS and Micro Nikkor 60mm f/2.8 AF. I did a couple night shots tonight and came back with two different renderings of light. The 55mm made the lights into this circular shape, while the 60mm made them into a hex type shape. I'm not sure if this is normal for AIS lenses? If anybody could chime in it'd be great, as I'm pretty confused right now.

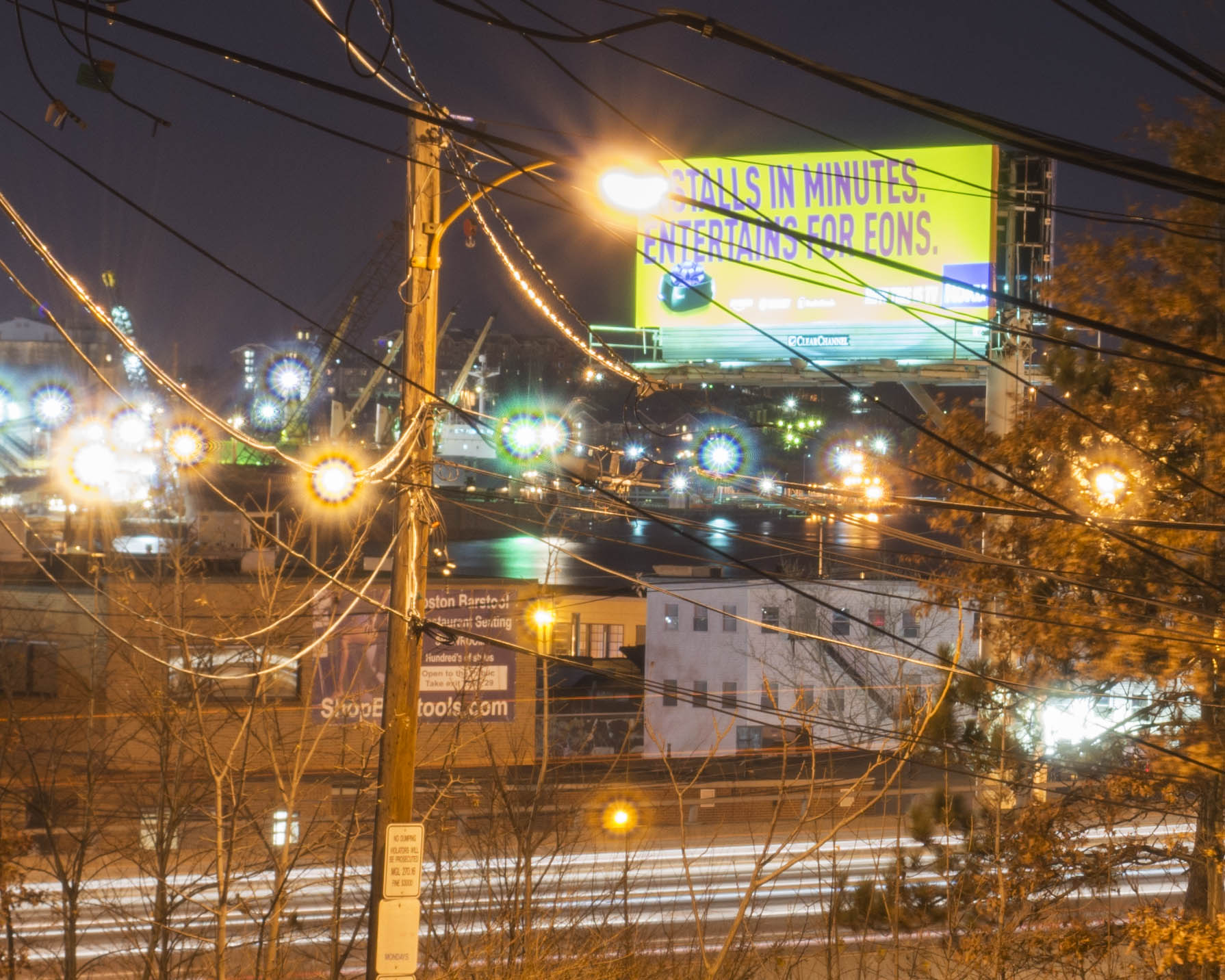

55mm -

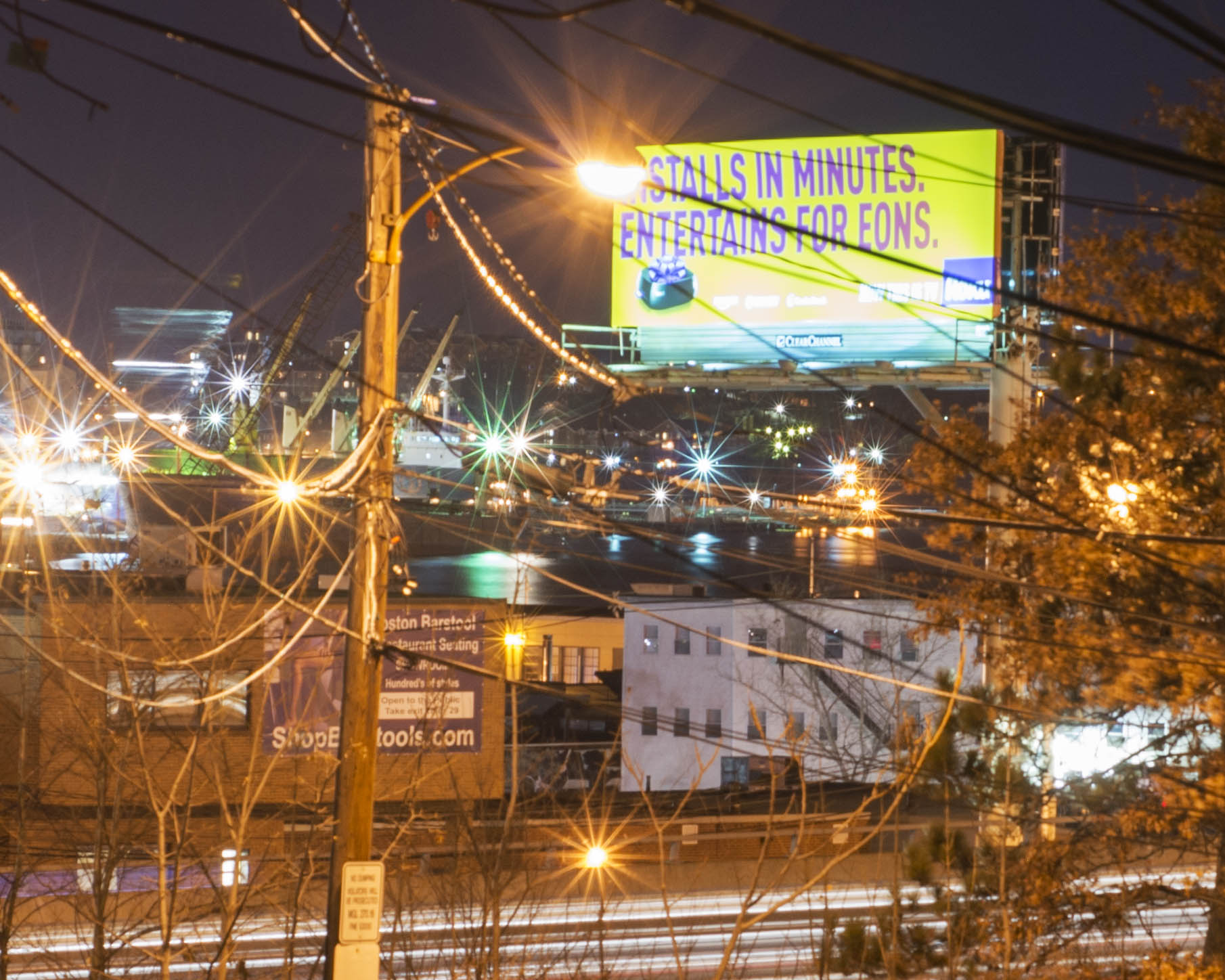

60mm -



Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,600
Location
Southern California
Shooter
Multi Format
It is called flare and the shape is often from the lens iris.

OP
OP

Noah B

Member
Joined
Aug 20, 2013
Messages
27
Location
Los Angeles
Shooter
Multi Format
Both exposures were 15 seconds in the same position, I thought it was strange how one was different than the other. I thought it might be because the 55mm is an older model. Thanks though.


jp498

Member
Joined
Oct 5, 2009
Messages
1,481
Location
Owls Head ME
Shooter
Multi Format
The lens or filter was also slightly dirty or foggy. The shape of the iris determines the number of points of the star as well.


pen s

Member
Joined
Sep 24, 2011
Messages
240
Location
Olympia, wa.
Shooter
35mm
That's not weird. That's diffraction on very overexposed lights. The overexposure was necessary to expose deeper into the night scene.

When I built a homebuilt reflector I used a 4 vane spider because with a 4 vane spider you get only 4 diffraction spikes but with a 3 vane spider you get 6 spikes. Such is one effect of diffraction.

Last edited by a moderator:
OP
OP

Noah B

Member
Joined
Aug 20, 2013
Messages
27
Location
Los Angeles
Shooter
Multi Format
Chris, I looked at the blades on the 55mm and they're much rounder than the other lens, which is straighter. I've just never seen a lens render the light like that before.


pen s

Member
Joined
Sep 24, 2011
Messages
240
Location
Olympia, wa.
Shooter
35mm
I've just never seen a lens render the light like that before.

I think you might not have noticed this effect as much because the lights were not overexposed as much as they were in these photos.

One more thought. Try taking the same photos but with the lenses wide open. That should not show the spikes.
By the way, your 60mm lens has a 7 blade aperture, correct?

Last edited by a moderator:
Joined
Oct 29, 2006
Messages
4,778
Location
İstanbul
Shooter
35mm RF
One of the strangest lens effect I have ever seen, I dont even want to write about colors. But may be reason for that stars are the modern optics of the street lights. They can be very angular diamond cut like shapes on the light source. If your light source was clean and point light source diffracted like this , this a bad japanese lens. In real optics , point light sources must appear as point images otherwise its a very bad optics. Look for point spread function. Nikon have the worst optics I have ever seen or used.


Chris Lange

Member
Joined
Aug 17, 2009
Messages
770
Location
NY
Shooter
Multi Format
One of the strangest lens effect I have ever seen, I dont even want to write about colors. But may be reason for that stars are the modern optics of the street lights. They can be very angular diamond cut like shapes on the light source. If your light source was clean and point light source diffracted like this , this a bad japanese lens. In real optics , point light sources must appear as point images otherwise its a very bad optics. Look for point spread function. Nikon have the worst optics I have ever seen or used.

This is simply untrue, and a load of hogwash.

Neither of those images have unusual looking characteristics for a street lamp at night.

The only thing I see is the difference between a straight bladed aperture and a rounded aperture, perhaps used at a different f/stop which would also affect the appearance of the lights.


segedi

Member
Joined
May 26, 2010
Messages
359
Location
Near Toronto
Shooter
Multi Format
Are you using filters on either lens? The first one,a rendering is a but bizarre but I kinda like the second.

OP
OP

Noah B

Member
Joined
Aug 20, 2013
Messages
27
Location
Los Angeles
Shooter
Multi Format
I think you might not have noticed this effect as much because the lights were not overexposed as much as they were in these photos.

One more thought. Try taking the same photos but with the lenses wide open. That should not show the spikes.
By the way, your 60mm lens has a 7 blade aperture, correct?

The intention was to shoot the same scene, same aperture and exposure. I could care less about over exposing the street lamps. Did you see the difference between the two? One has circular orientation and the other pointed hex shape. I wanted to see if this was normal for the AIS lenses.

I didn't shoot either of them through a window, both lenses didn't have any filters on them. Both lenses have 7 aperture blades, the 55mm aperture has a rounder shape when you stop down, and the 60mm has more of a straight shape when you stop down. I've shot lots of cameras but can't remember ever seeing lights that look circular at nighttime.


Chris Lange

Member
Joined
Aug 17, 2009
Messages
770
Location
NY
Shooter
Multi Format
it is -much- more difficult to get star shaped highlights off a lens that has rounded blades, at any aperture. Straight blade lenses will do it even only two stops down from wide open, if the focus is right.


E. von Hoegh

Member
Joined
Sep 14, 2011
Messages
6,124
Location
Adirondacks
Shooter
Multi Format
Hey all, I've been doing a few tests with a couple lenses: Micro Nikkor 55mm f/2.8 AIS and Micro Nikkor 60mm f/2.8 AF. I did a couple night shots tonight and came back with two different renderings of light. The 55mm made the lights into this circular shape, while the 60mm made them into a hex type shape. I'm not sure if this is normal for AIS lenses? If anybody could chime in it'd be great, as I'm pretty confused right now.

55mm -

View attachment 77710

60mm -

View attachment 77711

What aperture were you using the lenses at? I ask because, notwithstanding all the nonsense about 'bokeh' and the like, if you are using the lens at maximum aperture, the shape of the iris and number of blades has no effect, as it is open and perfectly round.

It appears that the 55mm is behaving normally with the lights themselves heavily overexposed - showing artifacts you wouldn't usually record; and the 60mm looks like it or the filter may need a cleaning.

OP
OP

Noah B

Member
Joined
Aug 20, 2013
Messages
27
Location
Los Angeles
Shooter
Multi Format
What aperture were you using the lenses at? I ask because, notwithstanding all the nonsense about 'bokeh' and the like, if you are using the lens at maximum aperture, the shape of the iris and number of blades has no effect, as it is open and perfectly round.

It appears that the 55mm is behaving normally with the lights themselves heavily overexposed - showing artifacts you wouldn't usually record; and the 60mm looks like it or the filter may need a cleaning.

These were actually both shot at f/8 @ 15 seconds, neither had a filter on, focused at infinity.


E. von Hoegh

Member
Joined
Sep 14, 2011
Messages
6,124
Location
Adirondacks
Shooter
Multi Format
Has anyone counted those peaks?

14 in the one from the 60mm lens. Hard to be certain in the first (55mm) one. I still think the 60mm lens could do with a cleaning - perhaps some sort of oily/smeary stuff on it.


lxdude

Member
Joined
Apr 8, 2009
Messages
6,911
Location
Redlands, So
Shooter
Multi Format

E. von Hoegh

Member
Joined
Sep 14, 2011
Messages
6,124
Location
Adirondacks
Shooter
Multi Format
Or some condensation.

Maybe, but in my experience condensation usually gives diffuse halos, not those sharp pointy rays.
I think the 55 is actually pretty well behaved, considering the overexposure (unavoidable) of the lights.


ic-racer

Member
Joined
Feb 25, 2007
Messages
12,053
Location
USA
Shooter
Multi Format
In real optics , point light sources must appear as point images otherwise its a very bad optics. Look for point spread function. Nikon have the worst optics I have ever seen or used.

I'd probably throw the Summicron 28 in the dumpster along with that Nikkor...
Dead Link Removed (Scroll down to where it reads "One thing the 28/2 ASPH does very nicely is beautiful 10-point sunstars")


Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
39,600
Location
Southern California
Shooter
Multi Format
I bet that really hurts! :surprised:uch:


Chris Lange

Member
Joined
Aug 17, 2009
Messages
770
Location
NY
Shooter
Multi Format
I'd probably throw the Summicron 28 in the dumpster along with that Nikkor...
Dead Link Removed (Scroll down to where it reads "One thing the 28/2 ASPH does very nicely is beautiful 10-point sunstars")

Oh dear, even my 50 dual range with umpteen rounded blades makes some nice stars when closed down all the way...better chuck it.


Gerald C Koch

Member
Joined
Jul 12, 2010
Messages
8,134
Location
Southern USA
Shooter
Multi Format
Micro lenses are corrected for use at short distances. They give the best resolution when used for closeups. They can be used for general purpose photography but with less than optimal results.
