Wallner Report enlarger meter/timer

Discussion in 'Enlarging' started by Alex Muir, Dec 23, 2009.

  1. Alex Muir

    Alex Muir Member

    Messages:
    408
    Joined:
    Dec 23, 2009
    Location:
    Glasgow, Scotland
    Shooter:
    Medium Format

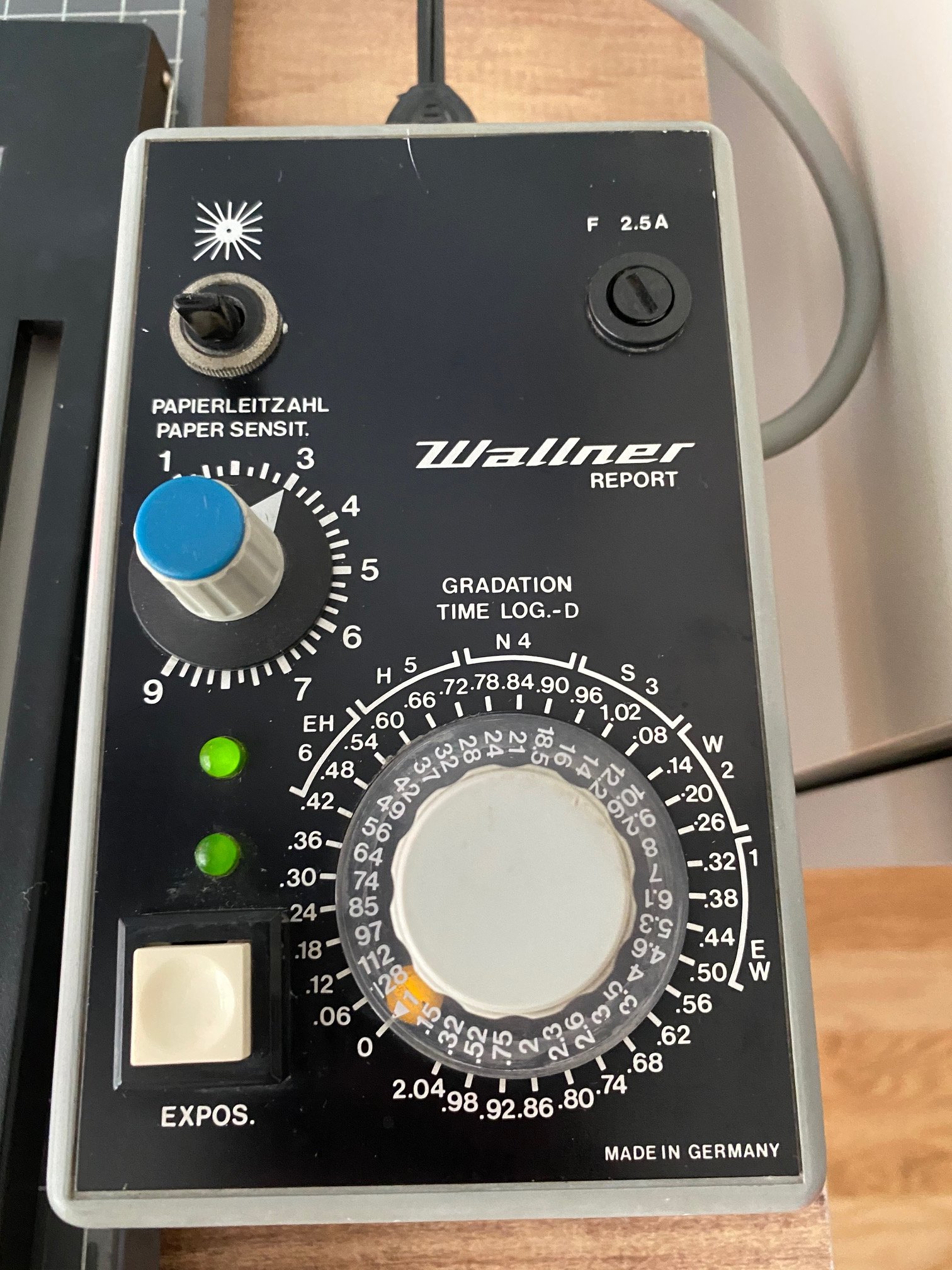

    I recently acquired one of these on ebay,but the only instructions I can find are in German(it is mde by a German company). Doe s anyone have English instructions,or can you tell me how it works? I need all the help I can get with this one! Thanks. Alex Muir

  2. Mike Wilde

    Mike Wilde Member

    Messages:
    2,931
    Joined:
    Aug 10, 2006
    Location:
    Misissauaga
    Shooter:
    Multi Format
    It likely has a light sensing probe and base unit with a paper sensitivity dial, a time dial (likely both have log scales) and maybe a set once overall calibration dial, as well as some way to figure when the sense bridge has been balanced. There is likely a switch to swing it from balance mode to expose mode, and a button to initaite exposure. It may have a socke for the safelight, and want to extinguish the safelight when balancing the bridge. I describe it generially because they all work similarly; I have a Melico.

    You make a print without the ananlyser. Note the time that made it Don't change anything on the enlarger, except perhaps to remove filtration if you printed with a filter in the light path. Put the probe on the baseboard where the first hint of tone away from pure white happens in the successful print.

    Set the unit in expose mode, and press the expose start button. Note how long the enlarger light stays on once it has been connected to the enlarger socket on this device. It won't match the successful exposure time on first try. Adjust and iterate the test unitl the timer leaves the enlarger on for as long as the test print took.

    Don't touch the time adjust dial again for now, and leave the spot probe in place as well. Turn off the safe light (if not switched thought the timer/analyser) Adjust the paper sesnitivity dial unit the bridge balances. If there is a thrid overall dial, it may need to be tweaked to allow the paper sensitivity dial to get into its mid range to balance the bridge. Once the overall sensitivity range is set it is not changed unit you change enlargers, or the bulb burns out, maybe.

    Now change the head elevation of the enlarger, and refocus. Put the spot probe in the same place as you proviously wanted to place the lightest tone away from white - usually the densest part of the neg that still contains information (but perhaps not clouds in a sunny sky line for landscapes, which will likely need burning in).

    Now, withotu changing the paper sensitivity dial, adjust the time dial to make the bidge indicator balance. You may need to adjust the lens aperture if the change was large. make the print, using the ananlyser to time the enlarger. It wil adjust the time so the same amount of light intensity hits the paper at the new head height. Then, once you are set up, you are set to go with that paper on any negative.

    I write the paper speed on the paper envelope for future reference. Paper speed can vary with different filtration, and not all probes are multi spectrally snesitive, so I have described how to work with white light; you might need to flick filters in and out; you might not.


    You can also set them up to test for contrast range. Set time to 1, and meter the thinnest spot in neg projection where you want detail in the shadows. Adjust paper speed to balance bridge. Move spot to densest part of neg, where you ant to place just white. leave paper speed alone, and move time dial to see how much more time than the 1 setting to get tone in the dense part. My unit when it measures 2 needs a grade 4 or higher paper, when it reads 10 or more needs a grade 1 or less paper, and I have calibrated it for points in between. Be sure to reset paper speed to that which suits the paoer after this test.

    If the timer analyser has colour filters and different sensitivities for different colours then it is meant for colour printing, but what I have described here can let you use the device to pick the white light filter position in the spot head, and likely use it the way I have outlined. Hope you find this help info is worthwhile.

  3. Gosia C.

    Gosia C. Member

    Messages:
    1
    Joined:
    Jul 9, 2011
    Shooter:
    Medium Format
    Please help :smile:

    You said you found some manual in German. Could you tell me where - German works perfectly for me :smile:
    Or if you could answer my question - is it possible to set a time shorter than 1 sec? It seems so, but I can't figure out how..

  4. craigclu

    craigclu Subscriber

    Messages:
    896
    Joined:
    Sep 8, 2002
    Location:
    Rice Lake, Wisconsin
    Shooter:
    Multi Format
    Groups:

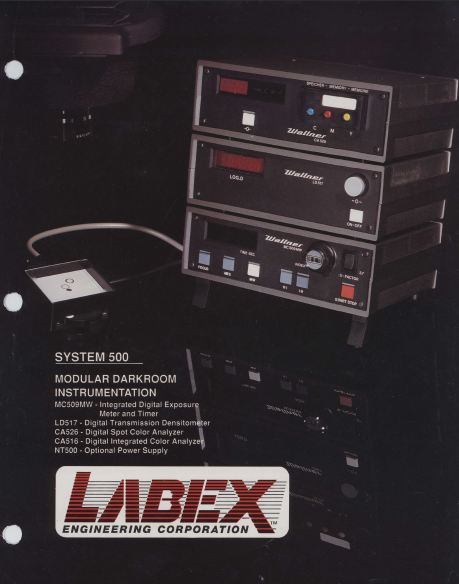

    I have a Wallner 500 system with the documentation. I've got them scanned to pdf files if they would do you any good.


    Attached Files:

  5. cameraoscura

    cameraoscura Member

    Messages:
    1
    Joined:
    Oct 25, 2011
    Shooter:
    127 Format
    hi dear.
    someone can help me with wallner system500?
    i have got one but i haven't the instructions!

    thank you

    matteo/cameraoscura.org

  6. craigclu

    craigclu Subscriber

    Messages:
    896
    Joined:
    Sep 8, 2002
    Location:
    Rice Lake, Wisconsin
    Shooter:
    Multi Format
    Groups:
    Get me your email address and I'll send a copy to you.... It's a bit unique so you'll appreciate a bit of guidance to acclimate but in practice, the system is quite effective.

  7. hansth

    hansth Member

    Messages:
    1
    Joined:
    Apr 1, 2013
    Shooter:
    Medium Format
    Hello Graig

    do you have the wallner 500 PDF for me?

    Greatings hansth

  8. craigclu

    craigclu Subscriber

    Messages:
    896
    Joined:
    Sep 8, 2002
    Location:
    Rice Lake, Wisconsin
    Shooter:
    Multi Format
    Groups:
    PM Sent for email address....

  9. Blurryimages

    Blurryimages Member

    Messages:
    14
    Joined:
    May 7, 2016
    Location:
    London
    Shooter:
    Medium Format
    HI,

    I'm looking also for a manual or some description for Wallner CA2009 as I can't find any information about this device anywhere in the Internet. Would you be able to share some information if you have? Many thanks in advance.
    Slawek

  10. craigclu

    craigclu Subscriber

    Messages:
    896
    Joined:
    Sep 8, 2002
    Location:
    Rice Lake, Wisconsin
    Shooter:
    Multi Format
    Groups:
    I lost some things in a computer glitch awhile back. Let me do a little looking here and get back to you....

  11. craigclu

    craigclu Subscriber

    Messages:
    896
    Joined:
    Sep 8, 2002
    Location:
    Rice Lake, Wisconsin
    Shooter:
    Multi Format
    Groups:
    I've found copies of LD517 Densitometer.PDF, Wallner MC509MW Meter_Timer.PDF, WallnerSystem 500 Brochure.PDF, Wallner CA526 Color Analyzer.PDF. If you get me your email address, I can send them along in case there is some crossover information for you.

  12. Dennis Crume

    Dennis Crume Member

    Messages:
    1
    Joined:
    Jan 5, 2017
    Location:
    Nuevo, CA 92567
    Shooter:
    Medium Format
  13. Blurryimages

    Blurryimages Member

    Messages:
    14
    Joined:
    May 7, 2016
    Location:
    London
    Shooter:
    Medium Format
    Many thanks!

    Please send me to: sdejneka@hotmail.com

    I'm really happy! :smile:

  14. craigclu

    craigclu Subscriber

    Messages:
    896
    Joined:
    Sep 8, 2002
    Location:
    Rice Lake, Wisconsin
    Shooter:
    Multi Format
    Groups:
    Sent. Hope it helps!

  15. Blurryimages

    Blurryimages Member

    Messages:
    14
    Joined:
    May 7, 2016
    Location:
    London
    Shooter:
    Medium Format
    Many thanks my friend! :smile: Much appreciated!

  16. mpistato

    mpistato Member

    Messages:
    1
    Joined:
    Jun 8, 2012
    Shooter:
    35mm
    Can you send me all pdf ?
    Many thanks
    massimorussello@alice.it
