Underpowered UV exposure box?

Discussion in 'Wet Process Machine & Traditional Prints' started by Ecoleica, Feb 10, 2015.

  1. Ecoleica

    Ecoleica Member

    Messages:
    10
    Joined:
    May 22, 2008
    Location:
    Dunedin
    Shooter:
    35mm

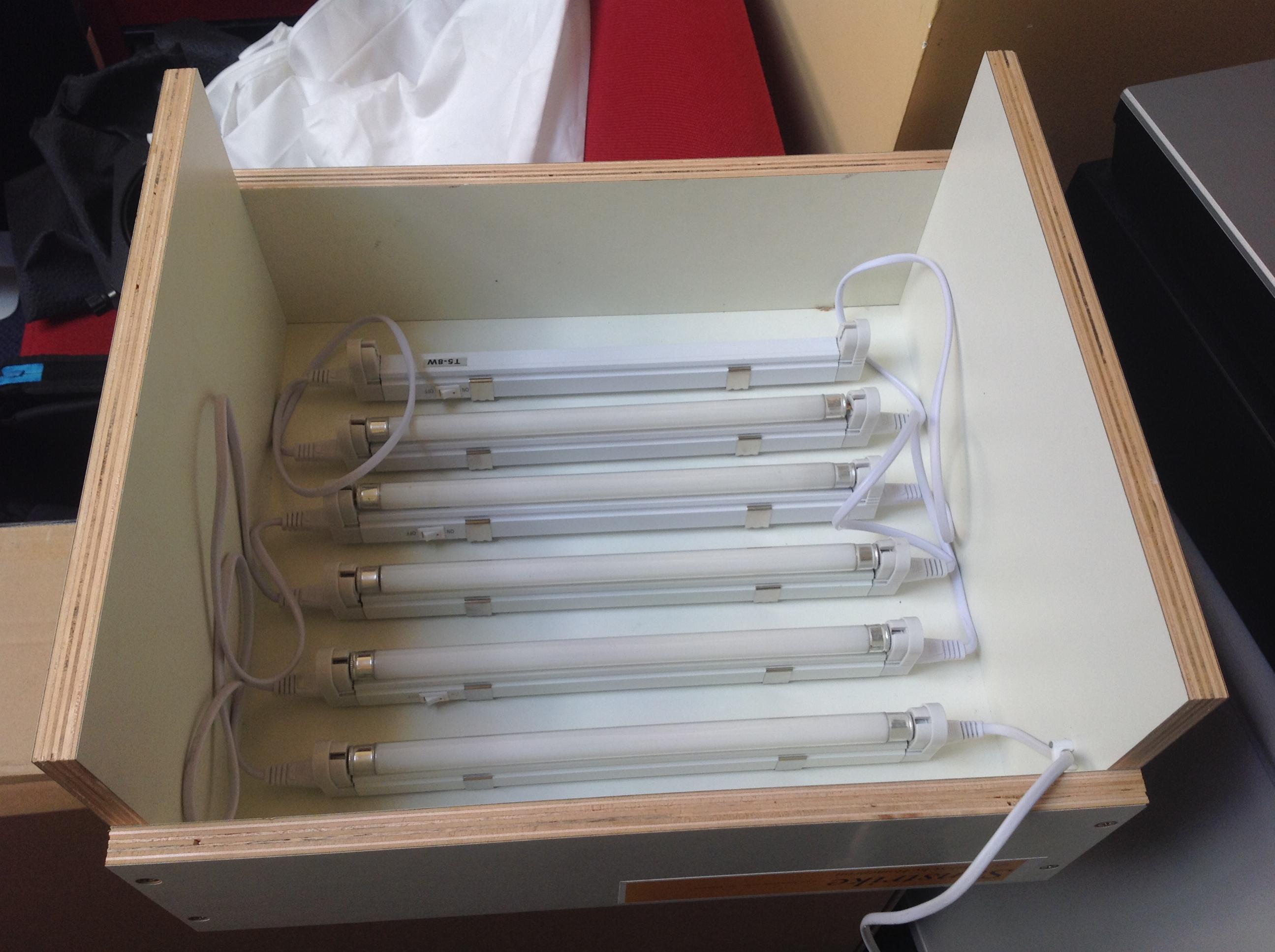

    Hi all, I am fairly new to alternative printing and I have been wanting to get consistent results with my cyanotypes (soon to be salt prints). So i contacted a local screen printing company that makes their own uv exposure boxes and purchased one of their units. I have done a bit of experimenting with it and it seems woefully underpowered for digital negatives (one step print took around 2 hours to expose!). I have attached a photo of the box. Currently there are 6x T5 8W tubes. Now I can always add more T5 Tubes to the unit or I could start from scratch and build something bigger and more powerful myself. What are your thoughts?


  2. pschwart

    pschwart Member

    Messages:
    1,133
    Joined:
    Jul 15, 2005
    Location:
    San Francisco, CA
    Shooter:
    Multi Format
    You can do a lot better than that box.

    Build your own with at least 8 T8 BL bulbs.
    Use electronic ballasts.
    The bulbs are way too far apart in the unit you purchased.
    Install a fan to keep the bulbs cool.
    I think a pizza oven design (with a door) is safer and provides better cooling
    18" BL bulbs can be had for about $4 each and they last for years.

    Last edited by a moderator: Feb 10, 2015
  3. Doyle Thomas

    Doyle Thomas Member

    Messages:
    276
    Joined:
    Oct 28, 2006
    Location:
    VANCOUVER, W
    Shooter:
    8x10 Format
    could be your chemistry too

  4. OP
    OP
    Ecoleica

    Ecoleica Member

    Messages:
    10
    Joined:
    May 22, 2008
    Location:
    Dunedin
    Shooter:
    35mm
    No issue with the chemistry that i know...I get good results when using the sun as a UV source

  5. Mainecoonmaniac

    Mainecoonmaniac Subscriber
    Ads Enabled

    Messages:
    5,231
    Joined:
    Dec 10, 2009
    Shooter:
    Multi Format
    Your box looks awfully deep. Maybe if you got the tubes closer to your print, it will speed things up. By lowering your tubes, you're taking advantage of Inverse Square Law.
    re

  6. ced

    ced Member

    Messages:
    525
    Joined:
    Oct 10, 2011
    Location:
    Belgica
    Shooter:
    Multi Format
    Groups:
    Are they wired correctly (may be reducing the output) are they all coming on as there are switches on each tube?
    I would put more tubes, some kind of reflectors (hammered chrome/alu sheets or foil and get the lamps closer to your contact frame.

  7. adelorenzo

    adelorenzo Subscriber
    Ads Enabled

    Messages:
    1,229
    Joined:
    Mar 10, 2012
    Location:
    Whitehorse, Yukon
    Shooter:
    4x5 Format
    Zombie thread guys

  8. ced

    ced Member

    Messages:
    525
    Joined:
    Oct 10, 2011
    Location:
    Belgica
    Shooter:
    Multi Format
    Groups:
    Zombies rule the planet...

  9. Dahod

    Dahod Member

    Messages:
    20
    Joined:
    Sep 7, 2015
    Location:
    Alberta, Canada
    Shooter:
    Multi Format
    As ced mentioned, you might want to check the wiring. From the picture it appears they're wired in series but every other unit I've seen and the one I built was wired in parallel See this article here ( http://web.physics.ucsb.edu/~lecturedemonstrations/Composer/Pages/64.36.html ) regarding wiring and bulb brightness.

    I'm assuming they put in the correct UV bulbs for you so adding more would be a good thing. There's a lot of space between those T8 bulbs.

  10. MattKing

    MattKing Subscriber
    Ads Enabled

    Messages:
    23,523
    Joined:
    Apr 24, 2005
    Location:
    Delta, BC, Canada
    Shooter:
    Multi Format
    Does anyone know whether the back panel might play a role?
    With respect to visible light, a white background helps to reflect light forward. Is there a background that reflects UV?

  11. Mainecoonmaniac

    Mainecoonmaniac Subscriber
    Ads Enabled

    Messages:
    5,231
    Joined:
    Dec 10, 2009
    Shooter:
    Multi Format
    One question none of us asked what kind of tubes are they. I use actinic tubes made for aquariums and my exposure times are 7 mins.
