Rolleiflex light leak problems and one jagged edge.

Recent Classifieds

Forum statistics

Threads
177,162
Messages
2,430,359
Members
94,146
Latest member
shawnmcc
Recent bookmarks
0

malcao

Member
Joined
Dec 29, 2008
Messages
63
Location
Sweden
Shooter
Multi Format
I have two Rolleiflexes and problems with both.

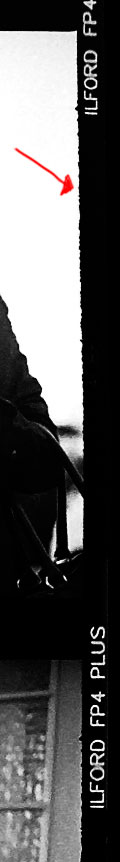

With a GX the right edge is jagged (same pattern on every frame). (see photo)

and an E2 I will get light leaks on the last 2-3 exposures on the roll (same places on every roll, see photo).
I don't think this is due to development. Jobo drums for two films, and the light leak is only when using the E2.

Anyone else experienced same problems or have a clue what could be wrong?



CatLABS

Member
Joined
May 20, 2011
Messages
1,513
Location
MA, USA
Shooter
Large Format
The light leaks do not seem to be something that could have come from the camera, perhaps during loading, also it looks like there is a part of the film that was not developed/fixed properly, as it was not cleared, which leads me to thinks this is a loading issue.

The jagged edge - look inside the camera, in the main chamber, and you will find the rough edge - either a scarred metal piece just where the film touches the chamber, or a piece of felt that has moved and is no in the frames, even if only a little bit.


bobmolson

Member
Joined
Jan 15, 2012
Messages
21
Shooter
Medium Format
fogged film

[I agree ,this looks like a loading problem. Check for any surface that could be absorbing UV from any surface and fogging the film White paper is notorious for fluorescent dyes. And of course the obvious not a totally dark darkroom One method to help eliminate, is unload the camera and load the reel in a changing bag , ruling out external light fogging the film .


dpurdy

Member
Joined
Jun 24, 2006
Messages
2,548
Location
Portland OR
Shooter
8x10 Format
I got the jagged edges with my FX when it was new, though more on top and bottom. In my camera it is from the very rough paint they used. I actually took a very small fine file and smoothed them out.

If the light leaks happen in the same place on every roll then I have to agree it is being caused in the camera. If the bellows is leaky (there is a small bellows in there) then I don't know why it wouldn't leak light on every frame and the light leak should vary from the camera being in different light situations when using it. Sometimes the light shinning from one side brighter or the other or over all brighter or dimmer should cause a variation in the level of fog. Is it possible that someone once had a flash bracket screwed to the side of the camera then took the bracket off and left screw holes open?
Dennis


Hatchetman

Member
Joined
May 27, 2011
Messages
1,553
Location
Chicago, IL
Shooter
Multi Format
I have a mystery light leak on my Rolleicord Va. Last 1 or 2 frames only. I have taken to closing the viewfinder top on those frames as light may be entering from top somehow. Seems to help though I can't say for certain. I've looked all over the web and talked to camera guys. They said could be hours of labor with no guarantee of success. I just live with it....grudgingly.

Joined
Jan 14, 2003
Messages
4,925
Location
San Francisco
Shooter
Multi Format
In my experience with myself early in my photographic career and seeing others experiences online, most often light leaks in the final few frames of 120 film has nothing to do with the camera.


E. von Hoegh

Member
Joined
Sep 14, 2011
Messages
6,124
Location
Adirondacks
Shooter
Multi Format
In my experience with myself early in my photographic career and seeing others experiences online, most often light leaks in the final few frames of 120 film has nothing to do with the camera.

Yep. The film isn't rolled tightly enough.


Hatchetman

Member
Joined
May 27, 2011
Messages
1,553
Location
Chicago, IL
Shooter
Multi Format
In my case, its dead center of the frame (not the edges where light would normally enter). How is that possible? I had experienced Rollei repairmen stumped when I send the images.


momus

Subscriber
Joined
Jun 14, 2009
Messages
4,326
Location
Lower Earth
Shooter
Medium Format
Had the same problem on a Rolleiflex. In my case it was user-caused. I had a bad habit of opening the camera in bright sun to unload the film, and the looseness of the film on the spool allowed light to get up under the paper. It happened on the last 2-3 frames of the roll, when it happened, which was often. The "fix" was to unload the camera's film at home in dim light, or better yet, a change bag. If I needed to change rolls when I was out, I tried to find a low light place to unload in, and would tighten up the film on the roll w/ my fingers once it was out.


Bob Marvin

Member
Joined
Sep 7, 2002
Messages
114
Location
Brooklyn, NY
Shooter
Medium Format
You shouldn't have a problem loading and unloading your Rollei in bright sunlight as long as you turn so that the camera is in your shadow. I've been doing that for 50 years without fogging any film.


Dan Daniel

Subscriber
Joined
Jul 4, 2009
Messages
1,836
Location
upstate New York
Shooter
Medium Format
On the E,check the rollers at the top and bottom of the film gate. If one is sloped or bent, it will cause the film to wind slightly off-kilter. By the time you get to the end of the roll, a minor amount adds up and becomes significant. This will crimp the backing paper a bit against the take-up reel, allowing the kind of soft leak I am seeing.

I see what appear to be marks from the silver gear on the left side of the take-up chamber. Another sign that the film is winding slightly askew, again usually caused by the rollers being out of alignment.

Another thing to check if for missing screws or loose screws There are lots of holes drilled through to the film chamber, with the screw forming the light seal. You can see these little openings on the inside, in the spool and lens area. Sometimes a leak happens at the end of a roll only because the mass of film was shielding most of the leak until it had ended.

Place the film back inside the camera in the original orientation to see if it tells you where the light is coming from. Also check frames before and after- sometimes a frame is fogged while still on the spool or on the take-up side but it looks like it happened while the frame was in the gate.

Last edited by a moderator:
OP
OP
malcao

malcao

Member
Joined
Dec 29, 2008
Messages
63
Location
Sweden
Shooter
Multi Format
Thanks for all help and tips :smile:

Living in Sweden there is no risk for loading and unloading in to much light :wink: I checked my negatives from this summer and it seems that there could be a problem with my new Jobo drum.

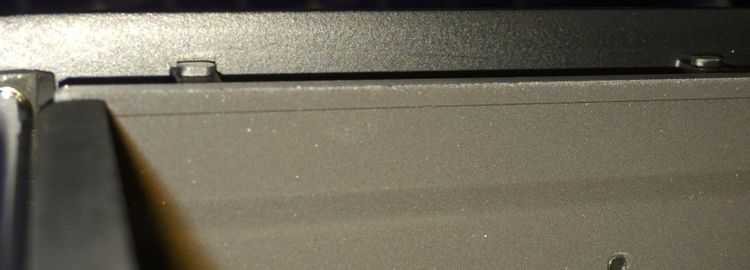

Regarding jagged edge, I looked closer to the edge (see photo) and maybe this is the problem. Any tips for how to smooth it out?


OP
OP
malcao

malcao

Member
Joined
Dec 29, 2008
Messages
63
Location
Sweden
Shooter
Multi Format
What kind of file did you use and did you apply any black paint afterwards?

I got the jagged edges with my FX when it was new, though more on top and bottom. In my camera it is from the very rough paint they used. I actually took a very small fine file and smoothed them out.

If the light leaks happen in the same place on every roll then I have to agree it is being caused in the camera. If the bellows is leaky (there is a small bellows in there) then I don't know why it wouldn't leak light on every frame and the light leak should vary from the camera being in different light situations when using it. Sometimes the light shinning from one side brighter or the other or over all brighter or dimmer should cause a variation in the level of fog. Is it possible that someone once had a flash bracket screwed to the side of the camera then took the bracket off and left screw holes open?
Dennis


Dan Daniel

Subscriber
Joined
Jul 4, 2009
Messages
1,836
Location
upstate New York
Shooter
Medium Format
What kind of file did you use and did you apply any black paint afterwards?

Be gentle with a file or any other system you use. Best to always pull 'up,' meaning from the bottom to top in your photo. Going down risks catching a paint edge and chipping it away.

Another approach would be very fine sandpaper. Double-stick tape it to a flat (metal, wood, acrylic- stiff) and trim to a clean edge. By fine I mean 1000-1500 grit. Slow, yes, but it beats creating new grooves.

You can use tape to create a small shelf below where you are filing or sanding. Imagine a piece of tape 3 cm in width- crease it at about 1 cm and stick this edge to the wall. With the sticky surface facing up, the shelf being the sticky side of the tape. Now as dust falls, it will fall onto the shelf and stick.

OP
OP
malcao

malcao

Member
Joined
Dec 29, 2008
Messages
63
Location
Sweden
Shooter
Multi Format
Be gentle with a file or any other system you use. Best to always pull 'up,' meaning from the bottom to top in your photo. Going down risks catching a paint edge and chipping it away.

Another approach would be very fine sandpaper. Double-stick tape it to a flat (metal, wood, acrylic- stiff) and trim to a clean edge. By fine I mean 1000-1500 grit. Slow, yes, but it beats creating new grooves.

You can use tape to create a small shelf below where you are filing or sanding. Imagine a piece of tape 3 cm in width- crease it at about 1 cm and stick this edge to the wall. With the sticky surface facing up, the shelf being the sticky side of the tape. Now as dust falls, it will fall onto the shelf and stick.

Thank you very much for the help :smile:
