RB67 pro s ?

Discussion in 'Medium Format Cameras and Accessories' started by mark, Dec 4, 2018.

  1. mark

    mark Subscriber
    Ads Enabled

    Messages:
    5,436
    Joined:
    Nov 13, 2003
    I tripped and fell over an RB67 Pro s with 150mm lenses on ebay for a really good price so, on a whim, I bought it. It will probably be crap but who knows. It has a 220 back and 645 back, I am pretty sure the whole thing needs resealed. I did see that there are reseal kits.

    I am aware of the age but it is still younger than me.

    I now need to find a 65mm C lens and 1 or 2 120 backs.

    My question is:

    Are there any quirks like if I cock it wrong the whole thing explodes?

  2. MattKing

    MattKing Subscriber
    Ads Enabled

    Messages:
    23,756
    Joined:
    Apr 24, 2005
    Location:
    Delta, BC, Canada
    Shooter:
    Multi Format
    Its only quirk is that it will be a first step in a long addiction.

    That being said, there are three generations of backs for the RB67 line, and the safety interlocks vary between the generations.
    And if you don't fully rotate the rotating back to one of the two correct positions, it won't let you take pictures.

  3. seall

    seall Member

    Messages:
    7
    Joined:
    Jan 26, 2013
    Shooter:
    Multi Format
  4. lobitar

    lobitar Member
    Ads Enabled

    Messages:
    61
    Joined:
    Jul 17, 2018
    Location:
    Denmark
    Shooter:
    Multi Format
    Pardon, but are you sure it's not a 180mm? I don't think I ever heard abt. a 150mm for the RB.

  5. Theo Sulphate

    Theo Sulphate Subscriber
    Ads Enabled

    Messages:
    5,571
    Joined:
    Jul 3, 2014
    Location:
    Gig Harbor & Palm Springs
    Shooter:
    Multi Format
    There's a 140/4.5 and a 180/4.5. The 140mm is an awesome macro lens with floating elements.

    That said, the RB67 Pro S is a wonderful and easy to use medium format camera that is rugged, reliable, and has lenses with excellent optics.

    I'm assuming you have Pro S backs as well (they are labelled as such). Those are best for your Pro S body.

    Yes, you MUST read the manual. The interlocks I can think of at the moment are for:

    - prevent mounting or dismounting lens without body & lens both being cocked

    - prevent shutter tripping with dark slide in

    - prevent shutter tripping without body being cocked

    - prevent shutter tripping if film not advanced (unless multiple exposure lever is set)

    - prevent winding to next frame of film if shutter hasn't been tripped

    - prevent removal of back unless dark slide has been inserted

  6. Theo Sulphate

    Theo Sulphate Subscriber
    Ads Enabled

    Messages:
    5,571
    Joined:
    Jul 3, 2014
    Location:
    Gig Harbor & Palm Springs
    Shooter:
    Multi Format
    One thing I forgot to mention: focusing is done on the body, racking the bellows in and out. The ring at the front of the lenses is not a focusing ring - it's a depth of field gauge.

    Lenses with floating elements DO have a fine-focus ring, usually positioned at the rear of the lens.

  7. shutterfinger

    shutterfinger Subscriber

    Messages:
    3,162
    Joined:
    Feb 25, 2013
    Location:
    San Francisco Peninsul
    Shooter:
    4x5 Format
  8. WilmarcoImaging

    WilmarcoImaging Member
    Ads Enabled

    Messages:
    569
    Joined:
    Apr 2, 2017
    Shooter:
    Multi Format
    Congratulations. Agree with Matt that there aren't any significant quirks that lead to the camera exploding. Agree with Theo that reading the manual, or reading websites and looking at YouTube, can be beneficial.

    There are two 150mm lenses for the RB system:

    SF C 150mm f/4 --> soft focus, 5 elements in 3 groups, originally came with three strainer disks
    KL 150mm f/3.5 --> non-soft focus, 6 elements in 4 groups

  9. Theo Sulphate

    Theo Sulphate Subscriber
    Ads Enabled

    Messages:
    5,571
    Joined:
    Jul 3, 2014
    Location:
    Gig Harbor & Palm Springs
    Shooter:
    Multi Format
    One thing you may come across is a lens that doesn't seem to fit the mount - those lenses (lenses adapted for the SD or RZ? - help!) have a simple rubber ring at the rear of their mount that you simply remove and all is good.

    Last edited: Dec 5, 2018
  10. OP
    OP
    mark

    mark Subscriber
    Ads Enabled

    Messages:
    5,436
    Joined:
    Nov 13, 2003
    It’s an Sf lens. Never used one of those.

  11. Theo Sulphate

    Theo Sulphate Subscriber
    Ads Enabled

    Messages:
    5,571
    Joined:
    Jul 3, 2014
    Location:
    Gig Harbor & Palm Springs
    Shooter:
    Multi Format
    Right - soft focus. Great for portraiture, but not general purpose photography. Fortunately lenses for the RB67 are not expensive. I would choose C lenses rather than non-C because (1) C lenses are newer and (2) they have better coating.

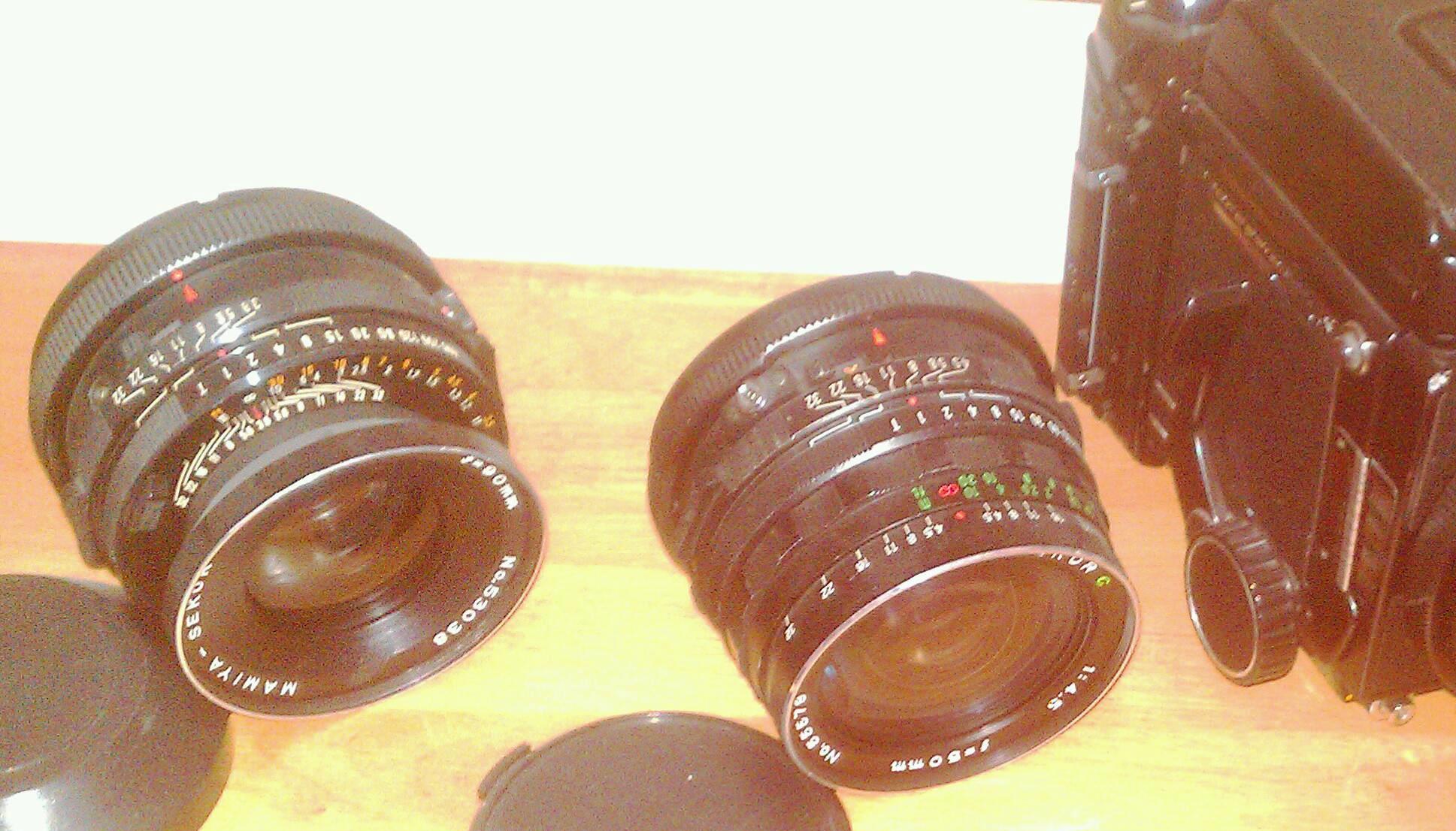

    Here is a photo of a non-C and a C lens side-by-side:


    (notice that the "focus ring" on the C lens is not a focus ring, but for depth of field)

  12. Marco Gilardetti

    Marco Gilardetti Member
    Ads Enabled

    Messages:
    636
    Joined:
    Jun 7, 2005
    Location:
    Torino, Italy
    Shooter:
    Large Format
    Not only it will not explode, but if you don't do the right things in the right sequence you won't be even able to blank test the shutter operation. I also recommend reading the manual carefully! :wink:

    You don't really need to seek for 120 backs: the 220 back that will come with the camera is perfectly usable with 120 film, as covered countless times on this forum. Just remember that after the 12th exposure the film is over.

    150mm soft focus lenses should come with a set of circular drilled diffusion discs that look somewhat as tea strainers. Where they in the kit you bought? Otherwise you will possibly get only the one which is kept inside the lens (supposed that one is in there).

    Congratulations with your purchase, you have in your hands one of the most impressive cameras ever made.

  13. OP
    OP
    mark

    mark Subscriber
    Ads Enabled

    Messages:
    5,436
    Joined:
    Nov 13, 2003
    I don't have the camera in hand yet but the screens were not mentioned in the add.

    As for the lenses I was looking and there are a lot of C lenses out there but it seems the good ones also say for Pro SD. Based on a lot of descriptions it is pretty clear that these are being offered by folks who are not photographers, In my limited reading it looks like the lenses for the SD model are not compatible with the S model. What is the difference, and how, based on pics, can I tell if I am looking at a lens for an S as opposed to SD?

  14. Sponsored Ad
  15. David Brown

    David Brown Subscriber
    Ads Enabled

    Messages:
    3,868
    Joined:
    Feb 16, 2004
    Location:
    Earth
    Shooter:
    Multi Format
    Actually, the 10th exposure ... :angel:

  16. MattKing

    MattKing Subscriber
    Ads Enabled

    Messages:
    23,756
    Joined:
    Apr 24, 2005
    Location:
    Delta, BC, Canada
    Shooter:
    Multi Format
    With a couple of rare exceptions (the 500mm APO/L being an example), the lenses that came out at the same time or after the Pro SD (the K/L lenses) will work fine on a Pro S. They came with an "adapter" (lens mounting ring) which is really more of an aid than an absolute necessity.
    The lens mount is the same, but the size of the throat outside that mount is larger on the Pro SD (and the RZ models), so the older lenses benefit from having something to fill that extra space in the larger throat.
    The newer lenses work fine on the older bodies - just remove the accompanying lens mounting ring.
    You may find the Reznitsky compatibility chart to be of help: http://www.reznitsky.info/Mamiya/Comchart.htm


    Attached Files:

  17. OP
    OP
    mark

    mark Subscriber
    Ads Enabled

    Messages:
    5,436
    Joined:
    Nov 13, 2003
    I'm a little confused. If I read you right the mounts are the same. it is the C lenses for the SD that have the ring and it comes off? Or do I need to put one on?

  18. tedr1

    tedr1 Member
    Ads Enabled

    Messages:
    893
    Joined:
    Feb 3, 2016
    Location:
    50 miles from NYC USA
    Shooter:
    Multi Format
    The 150mm SF provides soft focus under your control which you preview in the viewfinder. It is an f4 lens, at f5.6 the soft focus effect is reduced and at f8 it is gone, the lens becomes a regular sharp-all-over 150mm lens.

  19. WilmarcoImaging

    WilmarcoImaging Member
    Ads Enabled

    Messages:
    569
    Joined:
    Apr 2, 2017
    Shooter:
    Multi Format
    All lenses work on a Pro SD.

    Non-C and C lenses work on all bodies.

    When the adapter ring is removed, most KL and APO lenses work on Pro, Pro S and Pro SD bodies. Exceptions, to my understanding, are that the 75mm shift and 500 APO lenses will not work on Pro or Pro S bodies, because there is no adapter ring to remove. These lenses have larger rear element diameters and require the larger throat diameter that only the Pro SD has.

    This link as a lens compatibility chart: https://www.photo.net/discuss/threads/mamiya-rb67-k-l-127mm-l-lens-works-on-rb-pro-sd.269541/

    Last edited: Dec 5, 2018
  20. narsuitus

    narsuitus Member

    Messages:
    1,187
    Joined:
    Nov 24, 2004
    Location:
    USA
    Shooter:
    Multi Format

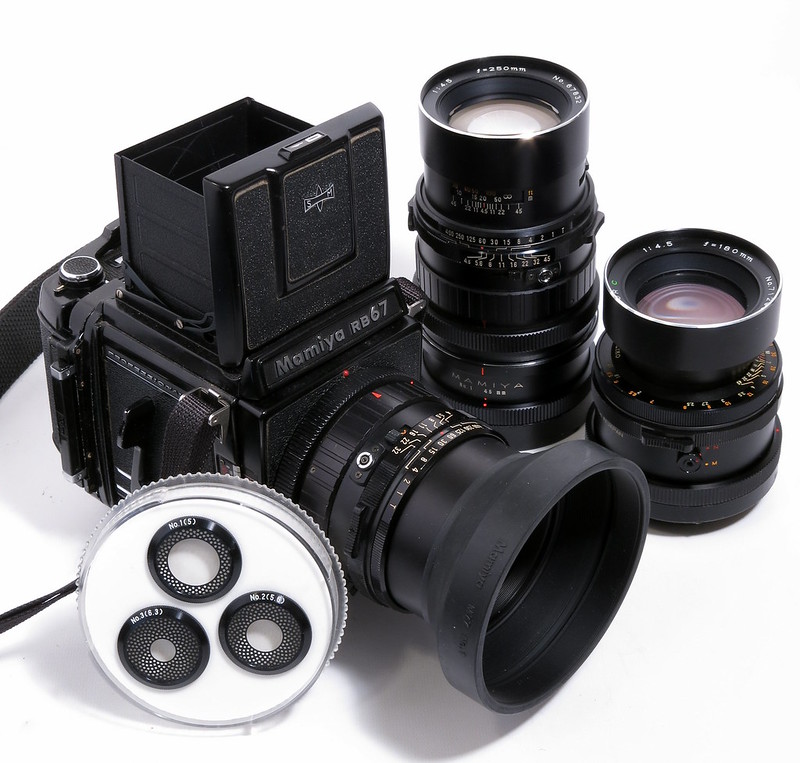

    The Mamiya 150mm f/4 lens (mounted on camera in image below) comes with three soft focus discs that work well when shooting portraits.

    [​IMG]
    RB67 Portrait Kit
    by Narsuitus, on Flickr

  21. OP
    OP
    mark

    mark Subscriber
    Ads Enabled

    Messages:
    5,436
    Joined:
    Nov 13, 2003
  22. OP
    OP
    mark

    mark Subscriber
    Ads Enabled

    Messages:
    5,436
    Joined:
    Nov 13, 2003
    How do those disks attach. They sure are small. Do they go on the rear?

  23. narsuitus

    narsuitus Member

    Messages:
    1,187
    Joined:
    Nov 24, 2004
    Location:
    USA
    Shooter:
    Multi Format
    Before you shoot anything important, put a test roll through each film back to make sure there are no light leaks. I discovered a major light leak near the hinge of several backs.

    Also, thoroughly clean each back to remove dust.

    [​IMG]
    RB67 Light Leak
    by Narsuitus, on Flickr

  24. Jim Andrada

    Jim Andrada Subscriber

    Messages:
    49
    Joined:
    Sep 8, 2011
    Shooter:
    Large Format
    The RB67 is one of the most versatile cameras you can find. I have an adapter for it that lets me mount my LF lenses in Technika boards - at the moment I have a nice Dagor on it. I've used the 150 soft focus - but if you like SF Reinhold Schable makes a simple Wollaston meniscus lens for the RB family. It's also one of the heaviest MF cameras around - lighter than a Fuji 680 but still a lot to carry.

  25. narsuitus

    narsuitus Member

    Messages:
    1,187
    Joined:
    Nov 24, 2004
    Location:
    USA
    Shooter:
    Multi Format
    The front half of the 150 lens unscrews from the back half. A disk attaches to the rear of the front half.

    The soft focus effect is visible at f/4 and f/5.6.

    From f/8 through f/32, there is no visible effect.

    Disk #1 had the least soft focus effect.

    Disk #3 has the most soft focus effect.

  26. Theo Sulphate

    Theo Sulphate Subscriber
    Ads Enabled

    Messages:
    5,571
    Joined:
    Jul 3, 2014
    Location:
    Gig Harbor & Palm Springs
    Shooter:
    Multi Format
    So with no disks inserted, it's a basic 150mm lens even at f/4 and f/5.6 then, right?
