Mamiya RZ67 focus track problem - skipped one tooth

Discussion in 'Medium Format Cameras and Accessories' started by Simon Benton, Jan 2, 2018.

  1. Simon Benton

    Simon Benton Subscriber

    Messages:
    458
    Joined:
    Feb 14, 2007
    Location:
    Ottawa Canad
    Shooter:
    Large Format
    It appears that one side of the focus track of my Mamiya RZ67 has skipped a tooth. This results in the front standard that holds the lens not being parallel to the film plane. The focus is perfectly smooth for the whole track run but it is misaligned by 1 tooth. Is there an easy way to correct this or is the camera destined for the parts bin?

  2. John Koehrer

    John Koehrer Subscriber

    Messages:
    7,123
    Joined:
    Apr 3, 2004
    Location:
    Aurora, Il
    Shooter:
    Multi Format
    Certainly not the parts bin. I think it's Paul Ron on this site that's very familiar with the RB's

  3. Trail Images

    Trail Images Subscriber

    Messages:
    855
    Joined:
    Apr 7, 2010
    Location:
    Corona CA.
    Shooter:
    Multi Format
    I suspect that this is a repairable item and Paul should be able to offer at least some ideas. I would also think the focus rails and the basic associated hardware are interchangeable with the RB units.
    Oddly, I have a similar issue with my 4x5. However, the work around is easier with using tilts and such to obtain required focus.

  4. WilmarcoImaging

    WilmarcoImaging Member

    Messages:
    273
    Joined:
    Apr 2, 2017
    Shooter:
    Multi Format
    Ed Sawyer from this site used to have an RZ service manual on his site, but it doesn't seem to be there anymore.

    For the RB67 I have both the parts and the service manuals. The front standard seems removable, and therefore your situation seems fixable, although not a simple job.

  5. shutterfinger

    shutterfinger Subscriber

    Messages:
    2,212
    Joined:
    Feb 25, 2013
    Location:
    San Francisco Peninsul
    Shooter:
    4x5 Format

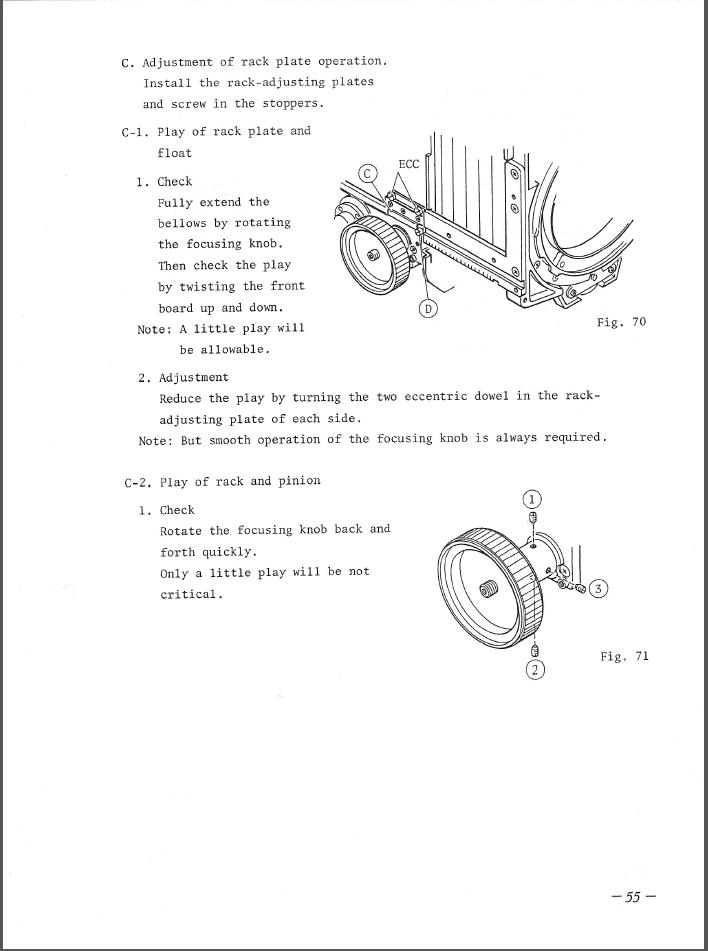

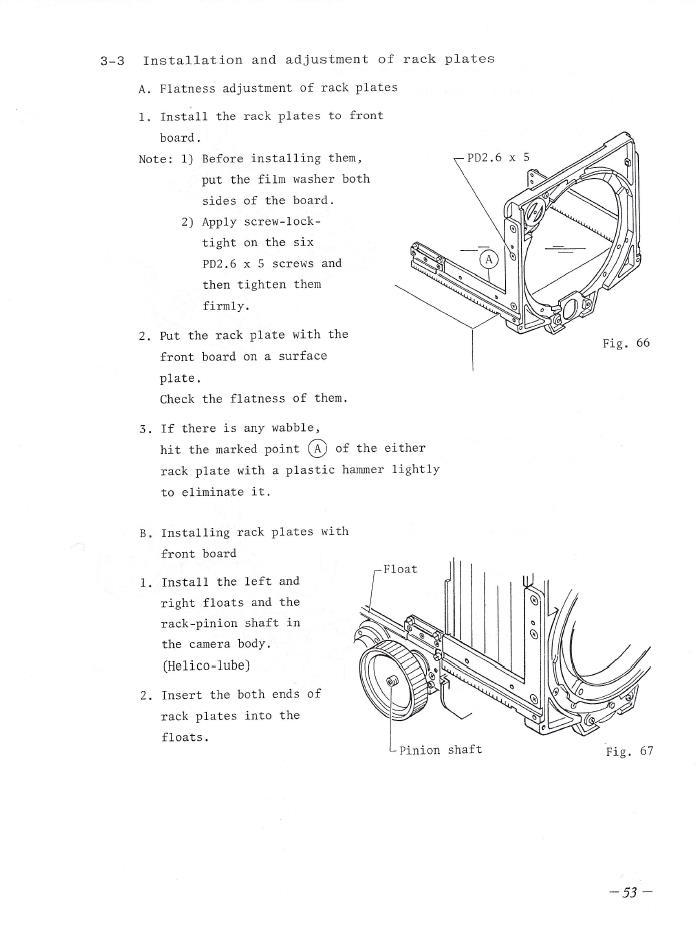

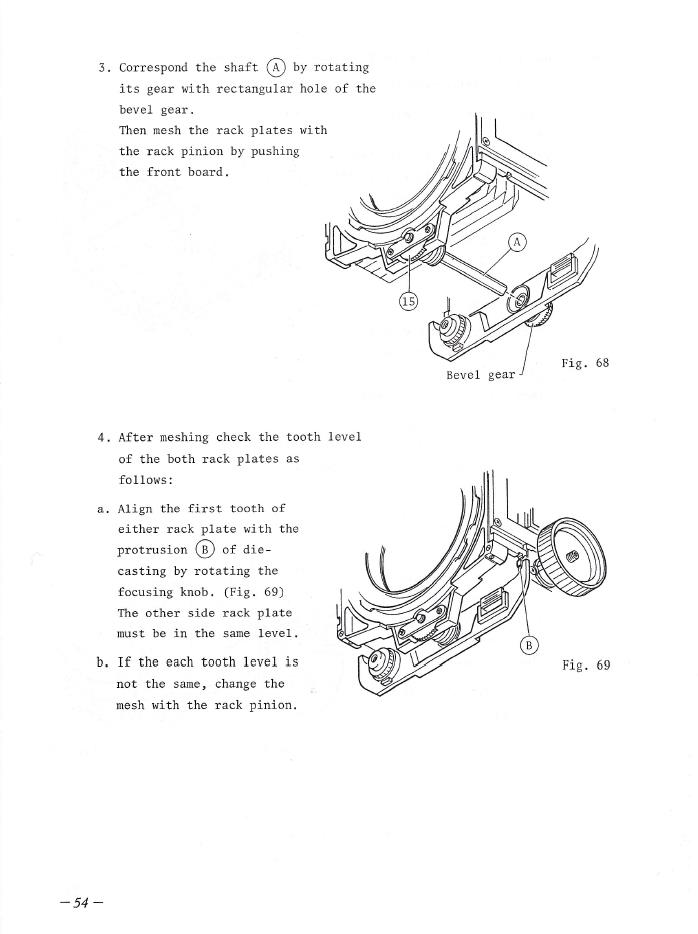

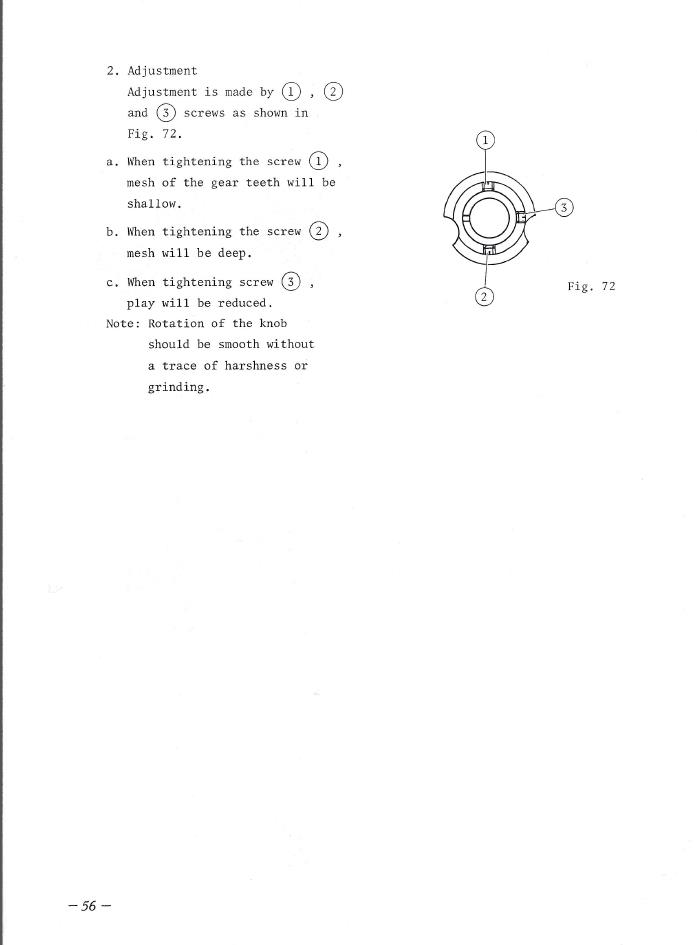

    RZ67 1.jpeg RZ67 2.jpeg RZ3.jpeg RZ4.jpeg

  6. EdSawyer

    EdSawyer Member

    Messages:
    1,444
    Joined:
    Sep 3, 2008
    Shooter:
    Multi Format
    I do still have the service manuals, but have to update the site to point to the new hosting. will try to get that done soon. In the meantime if anyone needs them feel free to email/pm. I see Shutterfinger has some of the relevant pages posted too!

  7. OP
    OP
    Simon Benton

    Simon Benton Subscriber

    Messages:
    458
    Joined:
    Feb 14, 2007
    Location:
    Ottawa Canad
    Shooter:
    Large Format
    Fixed! Thanks all for the advice and diagrams.
    I removed the 2 focusing knobs and the screws securing them which enabled the focusing pinion rod gear to be pushed clear of the track teeth. I could then adjust the front standard to be parallel with the film plane and then push the focusing pinion rod back in to engage the track teeth. Focusing now very smooth and parallel.

  8. WilmarcoImaging

    WilmarcoImaging Member

    Messages:
    273
    Joined:
    Apr 2, 2017
    Shooter:
    Multi Format
    Well done, congratulations.

  9. Trail Images

    Trail Images Subscriber

    Messages:
    855
    Joined:
    Apr 7, 2010
    Location:
    Corona CA.
    Shooter:
    Multi Format
    As Hannibal Smith always said on the "A" Team: "I love it when a plan comes together."
    Well done......:cool:

  10. shutterfinger

    shutterfinger Subscriber

    Messages:
    2,212
    Joined:
    Feb 25, 2013
    Location:
    San Francisco Peninsul
    Shooter:
    4x5 Format
    Last edited: Jan 4, 2018
