I am looking for a flash trigger that can work with with my 203FE, a digital Canon 5Dmk2 and my FM3A and, ideally also my M6TTL.

I would like to be able to use my various flashes: a Metz 45 CL4, Nikon SB-30, Nikon SB-27, an old Panasonic thyristor and a Leica SF24D.

The Strobist site recommends Phottix Ares - would they work at all?

Thanks very much in advance
Philip


AgX

Member
Joined
Apr 5, 2007
Messages
29,661
Location
Germany
Shooter
Multi Format
That Metz has no PC connector, but instead a Metz propriatery connector. One needs a Metz cable (or clone) from this connector to a hot foot or PC plug.


John Koehrer

Subscriber
Joined
Apr 3, 2004
Messages
8,222
Location
Aurora, Il
Shooter
Multi Format
Might want to put this in the WTB ada.

OP
OP
philipus

philipus

Member
Joined
Feb 6, 2012
Messages
198
Shooter
Medium Format
Thank you very much for the replies. And apologies that it took a while to write back; I was travelling and only returned home today to check more exactly what connectors I have for the Metz flash.

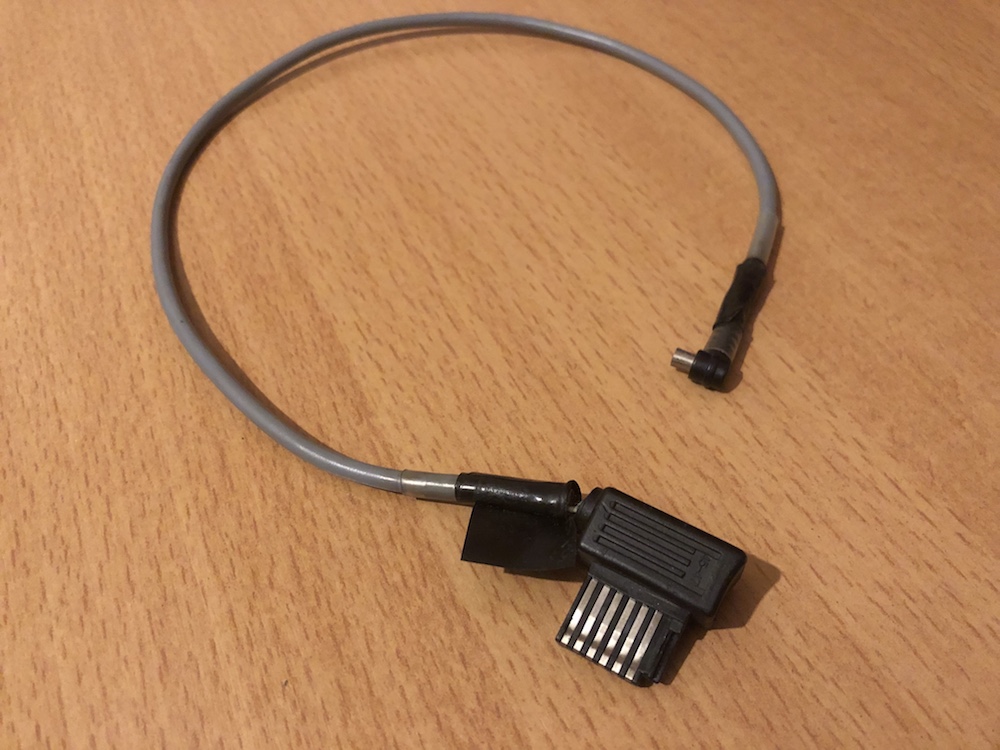

Thanks very much for helping with the connector on the Ares. I have a cable with PC plug to Metz-specific connector, see attached image. Are there such things as a PC (female)-RCA (male) adapter?

They should - you'd need to make sure you get both a transmitter and a receiver. The receiver has both a hot shoe and a 3.5mm RCA plug, which you'd need to get the appropriate cord (RCA to PC) to trigger the Metz,

Thanks a lot - your reply made me wonder if there is a cable with the Metz-specific connector that ends in a hotshoe?

That Metz has no PC connector, but instead a Metz propriatery connector. One needs a Metz cable (or clone) from this connector to a hot foot or PC plug.

I think you might be right. I can only get TTL to work with the SCA 300A and SCA390 kit. But I wouldn't be using TTL with the Phottix triggers.

Just firing the flash is one thing. Using the Hasselblad's ttl is quite another. I am thinking that would have to be hard wired.



TheFlyingCamera

Membership Council
Council
Joined
May 24, 2005
Messages
11,141
Location
Washington DC
Shooter
Multi Format
Thank you very much for the replies. And apologies that it took a while to write back; I was travelling and only returned home today to check more exactly what connectors I have for the Metz flash.

Thanks very much for helping with the connector on the Ares. I have a cable with PC plug to Metz-specific connector, see attached image. Are there such things as a PC (female)-RCA (male) adapter?

Thanks a lot - your reply made me wonder if there is a cable with the Metz-specific connector that ends in a hotshoe?

Here is exactly what you need:

https://www.bhphotovideo.com/c/product/685440-REG/Paramount_17PWME16P_PW_ME1_6P_Metz_6_to.html


rbrigham

Member
Joined
Sep 7, 2008
Messages
118
Location
London
Shooter
Large Format
hi Phillip

pretty sure that "pocket wizard" still make and sell these adaptors
and are very knowledgable and helpful with all triggering problems

good luck

robin

OP
OP
philipus

philipus

Member
Joined
Feb 6, 2012
Messages
198
Shooter
Medium Format
Hi again Scott

Would you know if this cable would work? It only has one lead on the flash end. I wouldn't use this cable for TTL through the SCA but to connect the flash to the trigger. But perhaps all leads are necessary for that?




Thank you Robin. My apologies for the delayed reply but for some reason I don't receive email updates from this forum. I've bought the Phoenix Ares II. I'm not having much luck with them though but think one of the units is faulty. I only got it to work initially with the SB-30 on my EOS 5Dmk2 but after a while also that stopped. I will visit the shop on Thursday to see what's the matter. Perhaps I will change to another model.

br
Philip

hi Phillip

pretty sure that "pocket wizard" still make and sell these adaptors
and are very knowledgable and helpful with all triggering problems

good luck

robin


TheFlyingCamera

Membership Council
Council
Joined
May 24, 2005
Messages
11,141
Location
Washington DC
Shooter
Multi Format
Hi again Scott

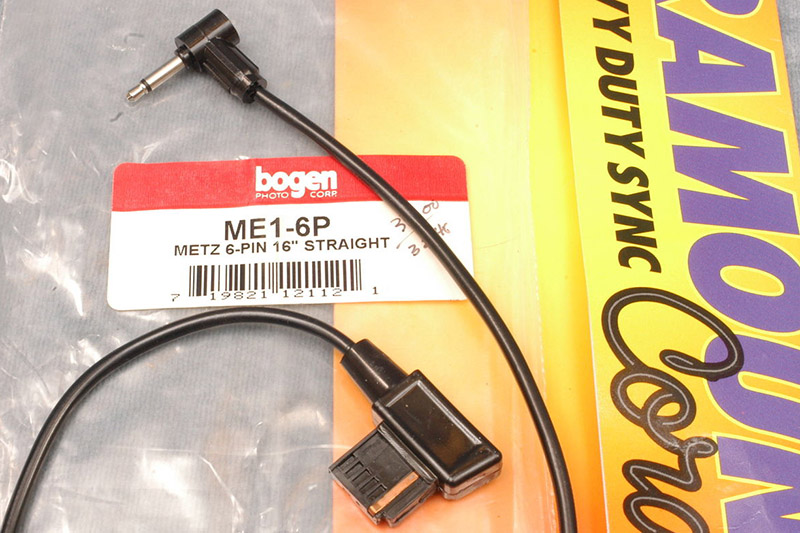

Would you know if this cable would work? It only has one lead on the flash end. I wouldn't use this cable for TTL through the SCA but to connect the flash to the trigger. But perhaps all leads are necessary for that?

View attachment 214639

Philip
That SHOULD work for just triggering the flash. Obviously no TTL, but as you've said, in this case that's not the goal. I've not seen a Metz connector before without multiple pins, but my experience is far from universal.


AgX

Member
Joined
Apr 5, 2007
Messages
29,661
Location
Germany
Shooter
Multi Format
For triggering a SCA flash that can be set to manual- or auto-mode just a 2-pole connection is necessary (of course it must be the right poles...).
