KW Pocket Dalco aka Patent Etui 6.5 x 9 camera

Discussion in 'Plate Cameras and Accessories' started by John Wiegerink, Dec 4, 2018.

  1. John Wiegerink

    John Wiegerink Member
    Ads Enabled

    Messages:
    1,513
    Joined:
    May 29, 2009
    Location:
    Lake Station, MI
    Shooter:
    Multi Format
    Does anyone here know what lens or lenses came on this camera? Before someone suggests I do a search I've spent the last hour doing just that and have come up empty. Did they come with a Steinheil Doppel Anastigmat Unofocal 105mm f4.5, which I believe is a Dialyte with four separate elements unlike the Tessar. There is almost no information that I can find on this camera at all, but it is certainly a twin to the Patent Etui that's for sure. JohnW

  2. Ian Grant

    Ian Grant Subscriber
    Ads Enabled

    Messages:
    20,064
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    They came with various lenses, most common was a 105mm f4.5 Tessar. The problem is that often larger dealers bought in 6.5x9 and 9x12 cameras without lenses and carried a stock of suitable lenses separately.

    [​IMG]

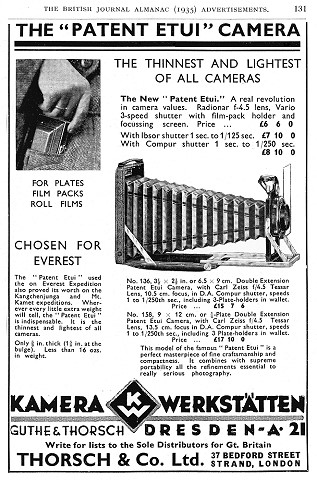

    This 1935 advert shows them with a Schneider Radionar or CZJ Tessar, Benno Thorsch was one of the founders of KW. I know that Meyer also sod the cameras with their lenses fitted for a white, they also sold Leica's with an f1.5 lens long before Leitz and also made an early version of the Visoflex.

    I've definitely seen Patent Etui's with other lenses in dealers adverts in the British Journal Photographic Almanacs, and on Ebay. Often Dialytes were used as "Budget" lenses but that's not always the case as there were also high end Dialytes like the Eurynar. Goerz for instance offered 4 different Dialytes on their 9x12 cameras as well as the Dagor.

    If you need KW plate holders I think I have 3 sets of 3 6.5x9, I may have some film inserts as well.

    Ian

  3. AgX

    AgX Member

    Messages:
    18,209
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    There are at least eight versions of this camera and each came with various lenses.

  4. OP
    OP
    John Wiegerink

    John Wiegerink Member
    Ads Enabled

    Messages:
    1,513
    Joined:
    May 29, 2009
    Location:
    Lake Station, MI
    Shooter:
    Multi Format
    Thanks Ian! So, I guess there is no "standard" lens for this camera or its variants. Would the Tessar be the "top of the line" lens for cameras like this or is there another type that was more preferred at the time that this camera was manufactured. I have a small box of holders somewhere and will have to dig them out to see what I have.

  5. AgX

    AgX Member

    Messages:
    18,209
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    plain triplet and modified triplet

  6. Ian Grant

    Ian Grant Subscriber
    Ads Enabled

    Messages:
    20,064
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    The standard lenses KW themselves sold with the camera were always Tessars or the Schneider Radionar. Pre-WW II the Tessar was thought of as the "top of the line" highest quality lens, CZJ had almost killed off the slower Dagor although they did make a few.

    There were sharper lenses than the Tessar, top end Dialytes for instance but with 8 air/glass surfaces - six internal contrast is low, Dagors and Protars were excellent lenses higher contrast but slower. I tested a few lenses with a DSLR and posted the results here a few years ago, I was mostly looking at contrast, The Dagor was way ahead, a Tessar OK but a Dialyte had significantly lower contrast.

    I guess pre-WWII camera manufacturers & photographers balance sharpness, contrast and speed when deciding on lens choice, the Tessar (and type) lenses is a good compromise as it's faster. After WWII coating turned things around, even Dialytes like the Kodak 203mm f7.7 Ektar had good contrast.

    Ian

  7. OP
    OP
    John Wiegerink

    John Wiegerink Member
    Ads Enabled

    Messages:
    1,513
    Joined:
    May 29, 2009
    Location:
    Lake Station, MI
    Shooter:
    Multi Format
    Are you saying the Steinheil Doppel Anastigmat Unofokal is a triplet?

  8. Patrick Robert James

    Patrick Robert James Subscriber
    Ads Enabled

    Messages:
    1,609
    Joined:
    Jul 31, 2012
    Shooter:
    Med. Format Pan
    I have a Patent Etui with a Tessar I bought in Prague over 20 years ago. Personally I prefer Dialytes, but what Ian said above it all true. I have a Rodenstock Eurynar 150mm f/3.5 that I would love to get coated one day. Nice lens.

    You haven't stated why you are curious though. Are you looking to buy one, or just wondering? They are pretty remarkable cameras. It is hard to believe that they fold up into such a tiny space. You'd have to see it to believe it.

  9. OP
    OP
    John Wiegerink

    John Wiegerink Member
    Ads Enabled

    Messages:
    1,513
    Joined:
    May 29, 2009
    Location:
    Lake Station, MI
    Shooter:
    Multi Format
    I had a Patent Etui that I ended up selling a few years back and I just picked up a Pocket Dalco with no lens on the auction site. I was just trying to figure out what lens came standard on that camera. I have the 105mm Tessar and the 105mm Steinheil Unofocal. I know I have some other 105mm lenses stuck somewhere, but just have to dig to find them. I think I'm going to stick the Steinheil Unofokal on it for now. I also like Dialyte lenses and have the 165mm Eurynar that I use when I want a "certain look" with my 4x5 Toyo field camera. It works nicely as long as the sun is behind you or not in the frame. JohnW

  10. AgX

    AgX Member

    Messages:
    18,209
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format

    You asked about the typical lenses for this family of cameras.
    You did not ask about the Unofacal, which even only was used at two versions.

  11. OP
    OP
    John Wiegerink

    John Wiegerink Member
    Ads Enabled

    Messages:
    1,513
    Joined:
    May 29, 2009
    Location:
    Lake Station, MI
    Shooter:
    Multi Format
    That;s true, but are you saying or do you know for sure that the Pocket Dalco cameras usually came with a triplet lens?

  12. AgX

    AgX Member

    Messages:
    18,209
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    I do not know such camera.
    The KW Patent Etui 6.5x9 models as said came typically all with plain and modified triplets. Per model two plain triplets against one Tessar are listed.
    But that does not say anything about the actual numbers these versions were made in. And I doubt there is such information available.

  13. OP
    OP
    John Wiegerink

    John Wiegerink Member
    Ads Enabled

    Messages:
    1,513
    Joined:
    May 29, 2009
    Location:
    Lake Station, MI
    Shooter:
    Multi Format
    I agree with you about the information not being available, since I've searched everywhere to no avail. Ian's explanation seems to be realistic in that dealers had their own ideas as to what lens should go on these cameras. JohnW

    Last edited: Dec 4, 2018
  14. Sponsored Ad
  15. Ian Grant

    Ian Grant Subscriber
    Ads Enabled

    Messages:
    20,064
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    The Unofocal was Steinheil top end Dialyte.

    I have the 135mm f4,5 Eurynar on a Rodenstock 9x12 camera (made by Welta), I have contemplated having it coated, the company I use suggested that as their coatings are relatively soft just have the internal air/glass surfaces coated.

    Ian

  16. OP
    OP
    John Wiegerink

    John Wiegerink Member
    Ads Enabled

    Messages:
    1,513
    Joined:
    May 29, 2009
    Location:
    Lake Station, MI
    Shooter:
    Multi Format
    Ian,
    That's good to know that the Unofocal was considered a "top end" Dialyte in the Steinheil lineup.. I've never used this 105mm Unofokal to see what it could do. I am a little curious as to what would make the Rodenstock Eurynar better than the Seinheil Unofocal since they are both four element - four group lenses. Is it just in the type of mineral compound used in making the glass? JohnW

  17. AgX

    AgX Member

    Messages:
    18,209
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    Yes, moreover there had been a period in german camera manufacture where retailers could models have completely customized and get their house brand on it.
    How would you list such models?
    I am sure Ian can tell much more on this issue than me.

  18. Ian Grant

    Ian Grant Subscriber
    Ads Enabled

    Messages:
    20,064
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    It seems that with Dialytes it's selection and matching of elements that's critical, some companies lenses will be better than others. I have a Kodak 170mm f7.7 Anastigmat (Dialyte) which I must try, a good lens hood might help a lot with the contrast.

    When these uncoated Dialyte lenses were common photographers worked quite differently, giving more exposure and longer development times and papers had characteristics that match the heavier density and higher contrast negatives, this helped overcome the lower contrast of the lenses.

    Ian

  19. JPD

    JPD Member

    Messages:
    962
    Joined:
    Mar 24, 2007
    Location:
    Sweden
    Shooter:
    Medium Format
    I have one with Unofokal and another one with a Meyer Helioplan, both dialytes.

  20. OP
    OP
    John Wiegerink

    John Wiegerink Member
    Ads Enabled

    Messages:
    1,513
    Joined:
    May 29, 2009
    Location:
    Lake Station, MI
    Shooter:
    Multi Format
    jpd,
    If you are saying you have a Pocket Dalco with a Unofokal you are the first person I have known that has a Pocket Dalco. I'm sure there are other folks that have the camera, but they sure don't seem to common. JohnW

  21. JPD

    JPD Member

    Messages:
    962
    Joined:
    Mar 24, 2007
    Location:
    Sweden
    Shooter:
    Medium Format
    It's a Patent Etui. It's one of those cameras that were bought in and sold by different companies using their own names. The Unofokal was one of the standard lenses KW used, and the Meyer Helioplan was another one. Here's a Pocket Dalco with Helioplan: https://www.flickr.com/photos/126027782@N03/albums/72157662382062165

    Tessar in 105 and 120 mm were also common on the Patent Etui, and also Schneider Xenar and Radionar, and Meyer Trioplan. Very few had Plaubel or Leitz lenses.

    I'm not sure what Dalco stands for, but there was a "Dalco" brand name used by a manufacturer of film and photo papers in the Netherlands, NFI: http://www.cameramuseum.nl/dalco.htm

  22. AgX

    AgX Member

    Messages:
    18,209
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    Of course I know the dutch Dalco, and there is quite some information on dutch cameras, the vast majority unknown here at Apug, but I do not know of a Dalco camera anyhow related to the Netherlands.

    A camera for the dutch market would have a metrical scale.

    Last edited: Dec 9, 2018 at 8:06 AM
  23. OP
    OP
    John Wiegerink

    John Wiegerink Member
    Ads Enabled

    Messages:
    1,513
    Joined:
    May 29, 2009
    Location:
    Lake Station, MI
    Shooter:
    Multi Format
    JPD,
    I see by the picture of the camera you posted, that the Dalco brand label was placed on a 9x12cm version also. I appreciate the info about the camera. What Agx pointed to on a Dalco film brand makes me think the Dalco cameras are somehow tied to the company that made or distributed the Dalco brand of film. The Pocket Dalco I purchased has a maroon body and maroon bellows as well. I'll post a picture of it when I get a chance. JohnW

  24. Ian Grant

    Ian Grant Subscriber
    Ads Enabled

    Messages:
    20,064
    Joined:
    Aug 2, 2004
    Location:
    West Midland
    Shooter:
    Multi Format
    JPD, you've probably
    I agree with your Film/Paper company link, re-branding was quite common before WWII so it's the most likely explanation. I have a number of re-branded cameras and it's done by the manufacturers themselves in most cases.

    Ian

  25. AgX

    AgX Member

    Messages:
    18,209
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    I got quite some information on that photochemical manufacturer, also there is a lot of information on dutch-made or -branded cameras. No Dalco camera. Also the link would be even hard to establish in time.

    Again, is that distance scale in meters or feet?

    Last edited: Dec 9, 2018 at 1:41 PM
  26. JPD

    JPD Member

    Messages:
    962
    Joined:
    Mar 24, 2007
    Location:
    Sweden
    Shooter:
    Medium Format
    The dutch Dalco brand was the only one I could find, and I understand why AgX is skeptic. We have the word "Pocket", and Dalco could stand for Dal-something-Company. Also, I found that one owner has a Pocket Dalco with an english Aldis Anastigmat lens in a Compur shutter.

    Another theory is that it's a KW brand name for a certain market, like the name "Tourist" that Voigtländer used for Bergheil in some countries. But "Dalco" sounds like an abbreviation similar to "Hapo" (Hans Porst).
