What can I do with this lens?

I have a pristine example of this preset style lens with a Komura 2x adapter, lens hood, and caps with a crappy but original case.

Is there any hope of making this fit a Nikon, canon FD or Eos mount? I cant find any adapters available anywhere and few people seem to know what they are.
Could it possibly work on a a mamiya m645? oops wrong forum...:whistling:

I would like to try and use this on something, but its an odd duck with very few references on the web. I have one very broken Exakta camera and I do not want to buy another 35mm camera just for this.

I am selling off a bunch of stuff as it is to pay for film.

If no one has any ideas, I will probably just put it up for trade and see what I get.


LiamG

Member
Joined
Dec 26, 2012
Messages
165
Location
Western Oregon
Shooter
Medium Format
Exakta's register (flange to film distance) is on the short side- as a rule, you can only adapt to systems with a shorter register if you want to hit infinity. Your can adapt the lens to FD, which has an even shorter register, but none of the other systems you mentioned will work (although, probably some sort of mount conversion to EOS is possible, at great cost- the difference is <1mm). Canon made an adapter for exakta lenses, if you can find one.

OP
OP
trythis

trythis

Member
Joined
Sep 26, 2013
Messages
1,208
Location
St Louis
Shooter
35mm
The exakta adapter on the lens can be removed. Are there unidapters available anywhere?


removed-user-1

The way I read this, you have a lens with an adapter for Exacta. Rather than look for an Exacta-to-? adapter, try to find a Nikon F or Canon FD adapter for this lens. Somewhere in my boxes of parts I have a junked 28mm Komura lens with an interchangeable Nikon mount. If I can find it I'll send you the mount for postage.

Edit: you posted while I was typing. yes, there are used adapters; you might look for them attached to lenses instead of separate.

OP
OP
trythis

trythis

Member
Joined
Sep 26, 2013
Messages
1,208
Location
St Louis
Shooter
35mm
Awesome, That would be great! IF you find it let me know!


John Koehrer

Subscriber
Joined
Apr 3, 2004
Messages
8,200
Location
Aurora, Il
Shooter
Multi Format
Izzat just a brand name for a "T" adapter?
Those were pretty common once upon a time.


Ian Grant

Subscriber
Joined
Aug 2, 2004
Messages
21,877
Location
West Midland
Shooter
Multi Format
Izzat just a brand name for a "T" adapter?
Those were pretty common once upon a time.

I have a very early Tamron 135mm lens with a matching 2X converter that sounds similar to the OP's lens (except FL). It's Exacta mount but with an adapter, I remember T mount lenses in my youth but never knew (and still don't) what the criteria is (was).

They were always stop down or preset.

Ian


Fixcinater

Member
Joined
Dec 11, 2008
Messages
2,500
Location
San Diego, CA
Shooter
Medium Format
Do you have access to a lathe? You could machine the Exacta adapter down to a distance that would allow you to bolt a cheap eBay M42/EOS (or whatever would be easiest for you to use) adapter to it. More work but would get you a usable lens.


pen s

Member
Joined
Sep 24, 2011
Messages
240
Location
Olympia, wa.
Shooter
35mm
I think Komura's had their own adapter system and it was not 'T' mount. Ran into the same problem with a 300mm Vemar lens I picked up. At a glance I thought it was 'T' mount but the threads were slightly larger. I thought that was strange since I have a 200mm f4.5 Vemar that is 'T' mount.

OP
OP
trythis

trythis

Member
Joined
Sep 26, 2013
Messages
1,208
Location
St Louis
Shooter
35mm
Its time for pictures: should have started that way...

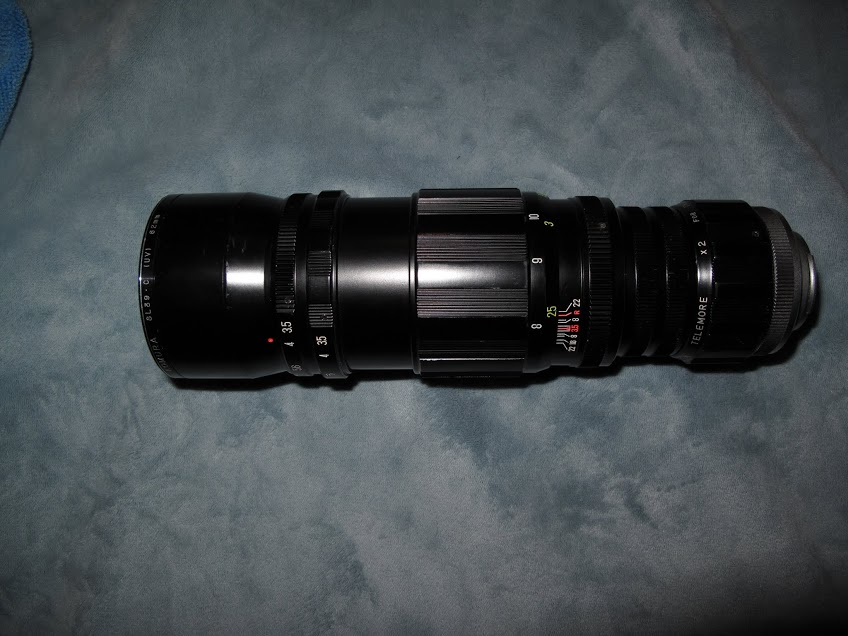

In the above photo, you can see the whole lens with x2 adapter

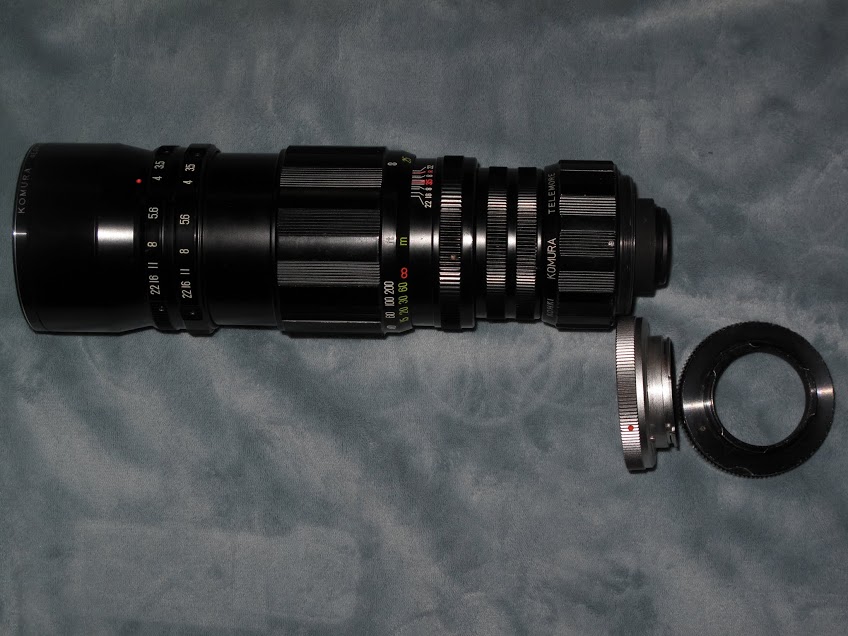

Above: x2 adapter removed. the tube between silver exakta adapter is hollow and can also be removed with yet another unkown thread type, NOT 42mm

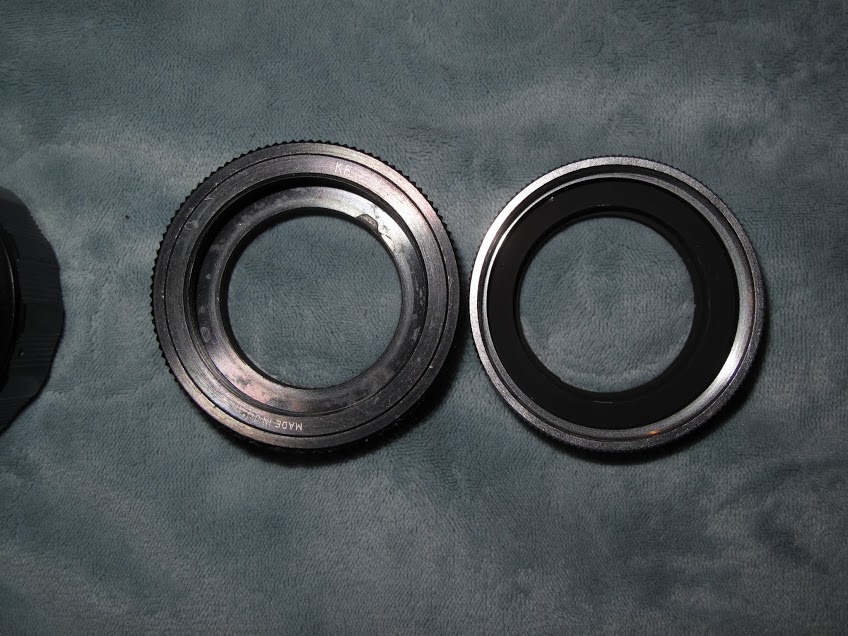

Above left: T mount (42mm diameter @ .75 tpm) adapter from a different lens. Above right: Unidapter 47mm Diameter to exakta mount.

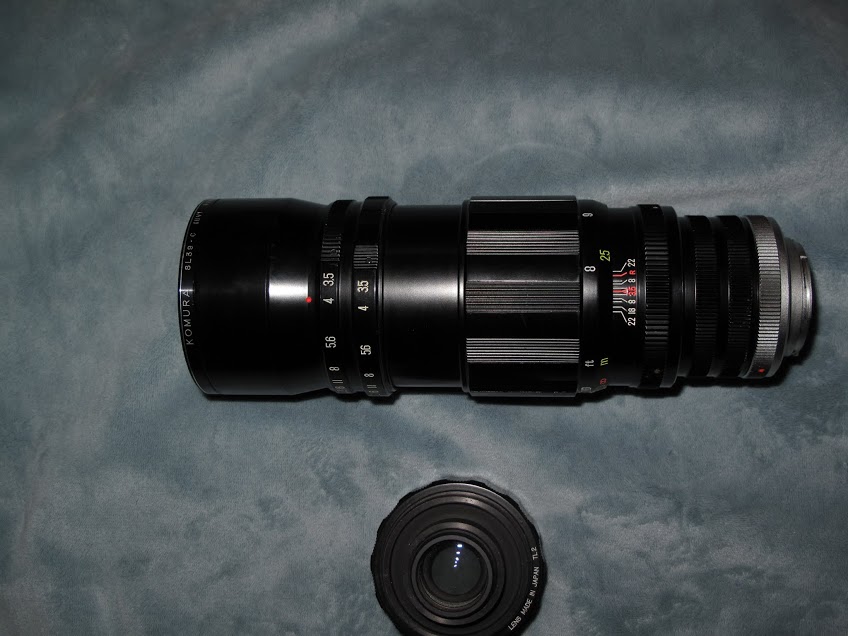

Above: whole lens with adapter removed. Black ring is T mount to exakta just to hold the silver one up.

At 47mm T mounts are just pointless.

I have a lathe, but it does not do metric threads....:-(

Last edited by a moderator:

Fixcinater

Member
Joined
Dec 11, 2008
Messages
2,500
Location
San Diego, CA
Shooter
Medium Format
You don't need a thread, just remove the Exacta mount portion of the Exacta silver adapter and epoxy/screw the cheap F-mount or EOS mount adapter to it. I've done that with old FD lenses, cheap K-mount lenses, they all work on EOS bodies after that. I used $2-5 M42-EOS adapters and drilled holes in the adapter face to put screws into the body of the lens.

Quite secure and reliable in use. Of course, any lens turns into fully manual diaphragm operation at that point.

OP
OP
trythis

trythis

Member
Joined
Sep 26, 2013
Messages
1,208
Location
St Louis
Shooter
35mm
You don't need a thread, just remove the Exacta mount portion of the Exacta silver adapter and epoxy/screw the cheap F-mount or EOS mount adapter to it. I've done that with old FD lenses, cheap K-mount lenses, they all work on EOS bodies after that. I used $2-5 M42-EOS adapters and drilled holes in the adapter face to put screws into the body of the lens.

Quite secure and reliable in use. Of course, any lens turns into fully manual diaphragm operation at that point.

Cool idea!

In this case the lens is a preset style and is always fully manual, so no loss there.
