    Hi all,

    I have a Jobo ATL-1000 from eBay - actually I've had it for ages, but I've only just got enough plumbing done in the darkroom to be to plumb it up - and I'm having some issues with the plumbing; and the drains in particular...


    I've got a 38C water source now (last weekend's plumbing finally comes good) and the inlet side of things is great. I've also hooked up the two outlet pipes to washing machine hoses and routed them to the drain, and they seem to do the right thing.

    The thing is, there's a third outlet pipe coming out of the machine, immediately 'above' the two hoses. When I run the machine through a cleaning wash, a not inconsiderable amount of water comes out flooding the place - the two normal hoses both seem to be pumping out water when you'd expect though.


    As far as I can see the manual on the web makes no mention of this third drain - what am I meant to do with it?! I can't see any way of hooking a hose up to it without fouling the other two...

  2. Tom Kershaw

    Tom Kershaw Subscriber
    Ads Enabled

    Messages:
    3,065
    Joined:
    Jun 5, 2004
    Location:
    South Norfolk
    Shooter:
    Multi Format
    Could you post a photo?

    Tom.

  3. OP
    OP
    tim_walls

    tim_walls Member

    Messages:
    1,122
    Joined:
    Sep 6, 2006
    Location:
    Bucuresti, R
    Shooter:
    35mm

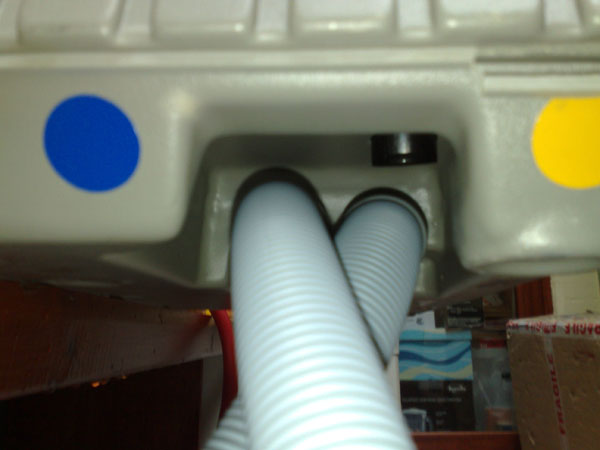

    Good thinking :smile:. A rubbish cameraphone shot I'm afraid, but hopefully you can see the water hose hooked up on the left and the chemicals hose hooked up on the right. Above the chemical waste hose is this other black tube - same dimensions as the other two hookups - which seems to be the 'soak the desk' feature.
