Info on these lenses

[campy51]

These lenses came with a 8x10 Deardorf and wonder if either will work on 8x10.
Goerz Dagor 9 1/2 inch f6.5 with old Betax No. 3 shutter
Kodak Anistigmat 170mm f6.3
I don't think the Kodak will but wonder what the quality would be like with 4x5 or 5x7.
Thanks in advance.



[btaylor]

I am pretty sure the Dagor covers, IIRC I got one with a Kodak 2D 8x10 and it covered 8x10 with movements.



[Ian Grant]

Your 9½" Dagor is really a Whole plate lens, however it's a mild wide angle lens on a 10x8 camera stopped down. I use a 12" Goerz Am Opt lens on my 10x8 Agfa Ansco, and it's a nice lens in a Compound #3. Dagors have excellent contrast.

The 170mm f6.3 Anastigmat is designed for 5x4, it's a Tessar type design. There was also a 170mm f7.7 Anastigmat but that's a Dialyte design.

Ian



[BrianShaw]

The Dagor... yes.

The Kodak Anastigmat... I doubt as it's often seen on 122 film cameras for 2-12/4 x 5-1/2 inch "postcard" negatives. [EDIT; added: I've used one for 4x5 Polaroid sheet film, quite a while ago, and was very impressed by both coverage and quality.]



[campy51]

I also have a Caltar 12 inch. How would that work? Any idea where I can get a retaining ring for the Dagor? The lens board it came with has the right size hole but the ring has been removed.



[Ian Grant]

The Dagor... yes.

The Kodak Anastigmat... I doubt as it's often seen on 122 film cameras for 2-12/4 x 5-1/2 inch "postcard" negatives

I have the f4.5 version of the lens and it's marked 4x5. It came fitted to a Butcher Popular Pressman SLR but is very poor condition. As with all Tessar type lenses the f6.3 versions are the sharpest.

I also have a Caltar 12 inch. How would that work?

That will cover 10x8, it's a Tessar type lens, supposedly a clone of the 12" f6.3 Commercial Ektar.

Ian



[blee1996]

I will probably start without your Caltar 12": good coverage, easier to mount, and very good quality.



[BrianShaw]

That will cover 10x8, it's a Tessar type lens, supposedly a clone of the 12" f5.3 Commercial Ektar.

Ian

typo... f/6.3



[Ian Grant]

typo... f/6.3

Thanks Brian, corrected

Funnily enough I have a CZJ 165mm f5.3 Tessar in a Dial-set Compur, it appears these were made for Kodak cameras.

Ian



[jimgalli]

The Dagor easily covers 8X10 and some old Burke and James catalogs would sell them for 11X14 which it will NOT. But they'll just reach around 10X12 which makes them a perfect wide field lens for 8X10. The 170 will just cover 5X7 with no movements and is a fine lens for 4X5.



[Ian Grant]

The Dagor easily covers 8X10 and some old Burke and James catalogs would sell them for 11X14 which it will NOT. But they'll just reach around 10X12 which makes them a perfect wide field lens for 8X10. The 170 will just cover 5X7 with no movements and is a fine lens for 4X5.

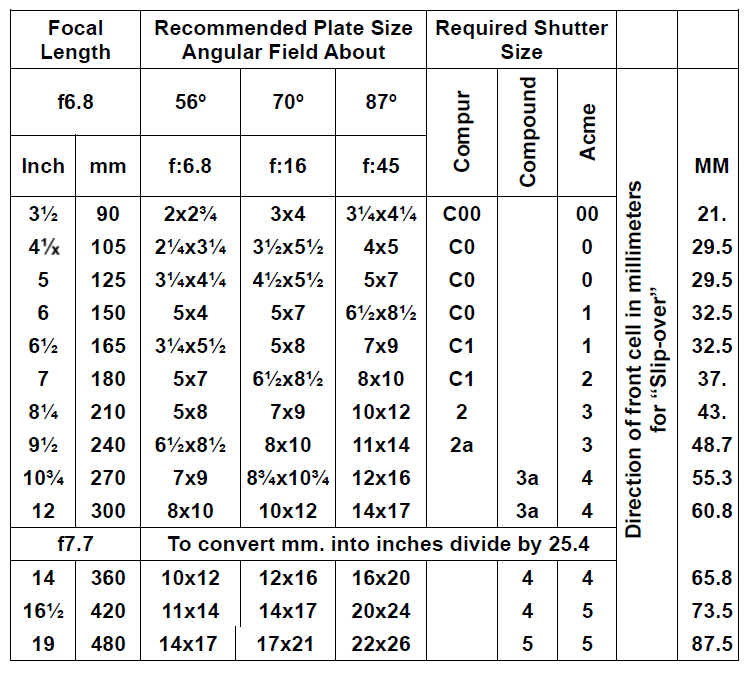

I should have added the chart I posted earlier in this thread is the Goerz Am, Opt. data for the Dagor's coverage. They clam 14"x11" at f45, but as that's not an optima f-stop 12"x10" is more realistic.

Ian



[bdial]

SK Grimes would be a good source for a retaining ring

Mounting Flanges and Retaining Rings

Flange A mounting flange is a metal threaded ring with several holes on the perimeter which are used to secure the flange to a lens board. It is permanently attached to the front of a lens board with screws. Flanges are frequently missing from their lenses. If you have multiple flanges for...

skgrimes.com



[campy51]

Here are a couple of quick shots with the lenses. Cropped with little processing.



[Ian Grant]

Obviously both excellent lenses, you must be pleased with the results.

Ian
