Hi everyone:

I am thinking of building a UV exposure unit soon. I have covered a lot of articles and discussions on different issues pertaining to constructing one.

Yet, I have not seen that many actual images. So, I am wondering if you would care to post the images of your handmade UV exposure units. I am interested in different design modifications and the reasons behind them.

Thanks for your time and input.

Warmly,
Tsuyoshi


matt miller

Subscriber
Joined
Feb 11, 2004
Messages
825
Location
Iowa
Format
Multi Format
I recently built a uv unit somewhat based on the "ubildit" plans. The plans aren't perfect, but are an excellent start. I used 8 24" BL bulbs, spaced 2" OC. I added a metal reflector behind the bulbs, which fixed a grounding problem. The reflector has been painted white. I have more pics of it in my gallery:sad:there was a url link here which no longer exists)

It was easy & fun. I made my first Ziatypes today. A damn lot of fun it was.


Attachments

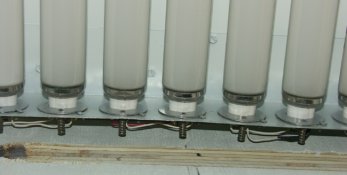

  • uvbulbcloseup.jpg
    58.4 KB · Views: 207
  • uvbulbson.jpg
    71.8 KB · Views: 180

mark

Member
Joined
Nov 13, 2003
Messages
5,699
Thanks Ed, those pictures actually answer a lot of questions for me about the wiring and ballasts.
