I want to share with you three of my techniques to avoid stripping screw heads when opening up a camera. Firstly, what you need to do is FREEZE the screw head with ICE. To prevent the camera from getting wet, just place the ice cube into a plastic sandwich bag, and push that against the screw head for about 30 seconds. Freezing will make the metal harder, and less likely to strip. In addition to making the screw harder, freezing also causes the metal to shrink a bit which makes it easier to unscrew. You will need to keep re-freezing it every 30 seconds until the screw comes loose.

My second technique when unscrewing a stiff screw is to not apply constant turning / torque. Constant turning is what will lead to the screw head stripping. When unscrewing a stiff screw, you need to use QUICK JOLTS. You accomplish these jolts by only very briefly applying the turning / torque with the screwdriver for only a fraction of a second at a time, and then you quickly let your hand loose on the screwdriver handle to stop the turning. These brief turning jolts, combined with freezing, will eventually jar the screw loose without stripping the head. For my third technique, it is also necessary to push the screwdriver VERY HARD into the screw head in order to prevent it from slipping. The screwdriver slipping is what wears down and strips the screw head, but hard pressure avoids this.

I want to make a comment on those tiny screws which hold the lens dials onto the lens. Those tiny lens dial screws are likely headless, and only consist of the cylindrical screw body with a groove on the end for the screwdriver. These screws are also likely only threaded into the dial itself, and only apply "pressure" onto the inner lens case to hold the dial in place. Those lens dial screws are also probably glued into place to keep them from coming loose -- so you need to pick away the glue before unscrewing them. After screwing them back into place, you can use a toothpick to apply a small amount of paper glue on the end which will keep them tightly in place.

There might be some screws hidden behind labels -- so you may need to carefully pry away some labels. Use a piece of masking tape to securely hold the screws in the order you remove them -- they're tiny and you don't want to lose any of them. These techniques worked with 100% success for me when removing all necessary screws to open up my Super8 camera, and they will also work for you. Good luck! :smile:


nick mulder

Member
Joined
May 15, 2005
Messages
1,212
Format
8x10 Format
Great advice, until you meet a reverse thread and make it even worse ...

Best tactic is to know how to spot likely spots that they'd be used before you go tightening them - where the action of the piece is such that the net forces try to unscrew the bolt (?)


AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format
My advice would be to have a great assortment of screwdrivers, and not to hesitate to grind a blade to the best fit.

Terry,
Have yo thought about using `cold spray´.

OP
OP

TerryM

Member
Joined
Jan 21, 2009
Messages
225
Location
Welland, Ontario, Canada
Format
35mm
nick mulder said:
Great advice, until you meet a reverse thread and make it even worse ...
I knew that somebody was going to bring up the unlikely scenario of a reverse thread. :laugh: :laugh: :laugh: Have you ever actually encountered a reverse-threaded screw on a camera? :D

Note to novices: you turn the screwdriver to the LEFT (counter-clockwise) to unscrew it. I don't think you'll come across a reverse thread.

AgX said:
My advice would be to have a great assortment of screwdrivers, and not to hesitate to grind a blade to the best fit.
Terry,
Have yo thought about using `cold spray´.
Yes, definitely make sure to have the necessary tiny screwdrivers right down to 1mm. Those tiny screwdrivers are made with hardened metal. Don't try to use too large a screwdriver! The lens dial screws are likely 1mm.

I've not heard of cold spray. Is that a lubricant? With freezing I didn't encounter any problems. :cool:


nick mulder

Member
Joined
May 15, 2005
Messages
1,212
Format
8x10 Format
The Mamiya RZ67 ProII back uses reverse threads :tongue: (assuming we're talking metal thread/bolts and plastic screws also ?)

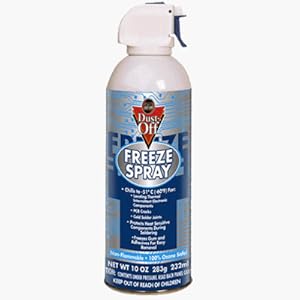

The cold spray is often found in electronics stores - used for instance in keeping electronic parts cool whilst working with heat nearby (soldering etc...)



AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format
Yes, definitely make sure to have the necessary tiny screwdrivers right down to 1mm.

I've not heard of cold spray. Is that a lubricant? With freezing I didn't encounter any problems. :cool:

1mm is waaay too much tolerance, even for "around the house" screws!


Cold Sprays are organic liquids with a very low boiling temerature. They are made by compressing gases of that substance in small spray cans. Sprayed on a surface they evaporate and yield evaporation cold. They are used in the technical and medical world.
Most, if not all are flammable.


Marco B

Subscriber
Joined
Jan 13, 2005
Messages
2,736
Location
The Netherla
Format
Multi Format
1mm is waaay too much tolerance, even for "around the house" screws!


Cold Sprays are organic liquids with a very low boiling temerature. They are made by compressing gases of that substance in small spray cans. Sprayed on a surface they evaporate and yield evaporation cold. They are used in the technical and medical world.
Most, if not all are flammable.

I think I have seen that stuff being used when they needed to replace my water meter in my house two years ago. The guy had a can with a kind of wrap attached to it, that was wrapped around the metal pipe to freeze the water inside it before cutting it to replace the water meter...

Very handy...


AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format
Yes, but CO2 needs stronger containers, as it will liquify under much higher pressure.
The soda making capsules contain CO2 gas not the liquid.


Back to sticking screws.
Ideally the cold is applied to the screw only, as with that (deep frozen) ice cube.
Simply spraying the screw head (especially in sunk heads) would be less effective than applying the liquid that way that it won't reach the body where the screw sits in.

At least I guess so...
I mean: will a hole that sits in a much larger body shrink or extend, when cold is just applied to that hole??

Last edited by a moderator:

Sethasaurus

Member
Joined
Sep 1, 2010
Messages
96
Format
Medium Format
I've found, while working on a lot of older cameras with slotted screws - the screw slot is significantly thinner than the screwdriver you might want to use.

That is - the screw head may be e.g. 3mm diameter and you might pull out a 3mm slot-head screwdriver but it won't fit. Then you get tempted to step down to a smaller size driver which fits in the slot. This often results in making the top of the screw look ugly when it slips because you can't apply enough torque to move it.
It's nice to have precision-made, lifetime-warranty tools that will always work (I like Snap-On tools), but it is also easy to get hold of a few decent screwdrivers for next to nothing and shape them to your needs.

Another tip for stuck screws is to place the driver in the slot (or cross or hex, etc) and give it a firm whack. That often helps to break up any gunk or glue that may be making it stick. Metal jeweller's screwdrivers can handle this but you may tend to mangle the plastic ones or push the shaft into the handle.

Swearing and threatening it sometimes helps too :wink:


John Koehrer

Subscriber
Joined
Apr 3, 2004
Messages
8,276
Location
Aurora, Il
Format
Multi Format
I knew that somebody was going to bring up the unlikely scenario of a reverse thread. :laugh: :laugh: :laugh: Have you ever actually encountered a reverse-threaded screw on a camera? :

You will be laughing out of the other side of your mouth when you hit one.
Pentax has used them on the Spotmatic series. They also changed the damn things to RH threads toward the end of the Spotmatic production. I recollect a lefty on the OM cameras, but that's a recollection, not a memory.
The best advice would be to use a screwdriver that is a correct fit, snug and the diameter of the screw head.

The headless screws you refer to are called "set screws"


nick mulder

Member
Joined
May 15, 2005
Messages
1,212
Format
8x10 Format
reverse threads:

lefty righty, tighty strippy


The cold spray thing - I often worked the inverse of that and heated up the outside (the 'nut') - works just as well (or not) as the cold on the bolt gag

OP
OP

TerryM

Member
Joined
Jan 21, 2009
Messages
225
Location
Welland, Ontario, Canada
Format
35mm
nick mulder said:
The Mamiya RZ67 ProII back uses reverse threads (assuming we're talking metal thread/bolts and plastic screws also ?) ...
John Koehrer said:
You will be laughing out of the other side of your mouth when you hit one.
Pentax has used them on the Spotmatic series. They also changed the damn things to RH threads toward the end of the Spotmatic production. I recollect a lefty on the OM cameras, but that's a recollection, not a memory. ...
I don't know who came up with the stupid idea of a reverse-threaded screw, but that person should be SHOT! :mad: The reverse thread is a much dumber idea than "metric" threads! I fully support the metric system, but not for threads. :blink:

AgX said:
1mm is waaay too much tolerance, even for "around the house" screws! ...
I was referring to the diameter of the screwdriver. I had bought precision screwdrivers -- going down to 1mm -- before attempting to open the camera. The lens needed 1mm.

Sethasaurus said:
... This often results in making the top of the screw look ugly when it slips because you can't apply enough torque to move it. ...
Swearing and threatening it sometimes helps too ...
Try my three techniques the next time you attempt to open a camera. You'll see how successful they'll be. :wink:

In the case of nuts and bolts, just use an adjustable wrench, and make sure it fits extremely tightly around the nut. Then just "tap" the end of the wrench handle with a hammer to jar the nut loose. This worked successfully for me even with those delicate aluminum "flare nuts" which hold the brake lines on your car. It beat spending $8 bucks to buy a special flare nut wrench. :D


resummerfield

Subscriber
Joined
Jan 28, 2005
Messages
1,467
Location
Alaska
Format
Multi Format
Put a small dab of valve grinding compound (a very gritty compound) on the screwdriver tip before mating to the screw and attempting to remove. The grit will bind the screwdriver to the screw, and often will prevent the screwdriver from slipping on the screw head.


bblhed

Member
Joined
Apr 12, 2010
Messages
600
Location
North Americ
Format
Multi Format
1mm is waaay too much tolerance, even for "around the house" screws!......

1mm is .039 inches, the thickness of a match paper match, that is plenty of gap. :whistling: Oh, we want a tight fit.

I'm sure they meant 0.1mm it was just a misplaced decimal.


nick mulder

Member
Joined
May 15, 2005
Messages
1,212
Format
8x10 Format
reverse threads are useful ...

essential even in some applications - the ones they are used for :wink:


andrewkirkby

Member
Joined
May 4, 2009
Messages
343
Location
Sydney, Aust
Format
Medium Format
The key is to use a high quality screwdriver that fits the screw head perfectly. Too big and you strip the screw head, too small and you can't get the torque required to release the screw and probably will strip the head as well.

The screws used in most consumer electronics are of very poor quality. While working at Canon, it was common procedure to replace removed screws with new ones, especially within lenses.

Joined
Jul 1, 2008
Messages
5,462
Location
.
Format
Digital
Jeweller's screwdrivers with adjustable torque, some of which come in magnetised form, would be a wise investment; as AndrewK said, consumer electronics stores issues have lousy products which can break, damaging the screw, the equipment you are working on and possibly even cause injury. Screws that are difficult to remove and are removed eventually should be replaced. Canon replaced all the tiny screws in my EOS 5 about 10 years ago when it was in for major display driver and drive servicing.


lxdude

Member
Joined
Apr 8, 2009
Messages
7,094
Location
Redlands, So
Format
Multi Format
Ideally the cold is applied to the screw only, as with that (deep frozen) ice cube.
Simply spraying the screw head (especially in sunk heads) would be less effective than applying the liquid that way that it won't reach the body where the screw sits in.

At least I guess so...
I mean: will a hole that sits in a much larger body shrink or extend, when cold is just applied to that hole??

How about wart remover, the type that freezes the wart? It's legal here. It has an end that looks like a Q-tip (cotton swab on a stick). It's applied directly to the wart. The same could be done with a screw, no doubt. One applicator might be enough if you do some in quick succession.


sun of sand

Member
Joined
Feb 8, 2007
Messages
601
Format
4x5 Format
how would it work and yet make more susceptible to doing what it was supposed to not do

what did i miss


i shape the screwdriver to fit the head orif possible dremel the head deeper and wider
