F-1/New battery

Discussion in '35mm Cameras and Accessories' started by CMoore, Nov 1, 2018.

  1. CMoore

    CMoore Subscriber

    Messages:
    2,404
    Joined:
    Aug 23, 2015
    Location:
    USA CA 94585
    Shooter:
    35mm
    Does the F-1/New handle Alkaline batteries pretty well, or is this camera a good case for using Silver Oxide.?
    What are you guys using in your F-1/New.?
    Thank You

  2. benjiboy

    benjiboy Subscriber
    Ads Enabled

    Messages:
    9,889
    Joined:
    Apr 18, 2005
    Location:
    U.K.
    Shooter:
    35mm
    Groups:
    They should be either PX 28 Silver Oxide or PX 28L Lithium batteries Chip according to the camera manual. I've had a Lithium one in one of my New F1s for more than ten years so " Don't spoil the ship for a ha'porth of tar "

    Last edited: Nov 1, 2018
  3. Mainecoonmaniac

    Mainecoonmaniac Subscriber
    Ads Enabled

    Messages:
    5,227
    Joined:
    Dec 10, 2009
    Shooter:
    Multi Format
    I have the new one and its 4LR44. Those used in dog shock collars.

  4. benjiboy

    benjiboy Subscriber
    Ads Enabled

    Messages:
    9,889
    Joined:
    Apr 18, 2005
    Location:
    U.K.
    Shooter:
    35mm
    Groups:
    They should be either PX 28 Silver Oxide or PX 28 L Lithium batteries Chip.don't "spoil the ship for a ha'path of tar".

  5. OP
    OP
    CMoore

    CMoore Subscriber

    Messages:
    2,404
    Joined:
    Aug 23, 2015
    Location:
    USA CA 94585
    Shooter:
    35mm
    The Alkaline are so cheap, i had been using and then changing them Very Frequently.
    I ordered some Silv/Ox from Amazon just now......see if that helps to get some of my snap-shots into The Louvre.:smile:

  6. benjiboy

    benjiboy Subscriber
    Ads Enabled

    Messages:
    9,889
    Joined:
    Apr 18, 2005
    Location:
    U.K.
    Shooter:
    35mm
    Groups:
    I wouldn't count on that Chip, but Silver Oxide batteries were what the meters were designed for.

  7. OP
    OP
    CMoore

    CMoore Subscriber

    Messages:
    2,404
    Joined:
    Aug 23, 2015
    Location:
    USA CA 94585
    Shooter:
    35mm
    Your right.....my photos are too good for the likes of The Louvre :whistling:

  8. AgX

    AgX Member

    Messages:
    17,850
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    Not quite. As mercury cells the silver-oxide ones deliver a quite stable voltage and thus were kind of substitute for the Mercury ones.

    Once the device has a voltage control stage the primary stability of a cell no longer is of utmost importance. Then issues as

    -) size (format)
    -) price per sample
    -) price per life-cycle (per usable capacity)
    -) leakage risk
    -) temperature dependancy of capacity
    -) storage time
    -) life-time once started (Zn-air)

    may be considered instead.

  9. benjiboy

    benjiboy Subscriber
    Ads Enabled

    Messages:
    9,889
    Joined:
    Apr 18, 2005
    Location:
    U.K.
    Shooter:
    35mm
    Groups:

  10. OP
    OP
    CMoore

    CMoore Subscriber

    Messages:
    2,404
    Joined:
    Aug 23, 2015
    Location:
    USA CA 94585
    Shooter:
    35mm
    So where does that leave the F-1/New.......does it benefit from the use of Silv/Ox batteries.?

  11. AgX

    AgX Member

    Messages:
    17,850
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    For daily use I would take whatever at hand.

  12. AgX

    AgX Member

    Messages:
    17,850
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format

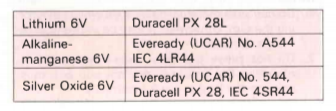

    (taken from an original New F-1 manual)

  13. benjiboy

    benjiboy Subscriber
    Ads Enabled

    Messages:
    9,889
    Joined:
    Apr 18, 2005
    Location:
    U.K.
    Shooter:
    35mm
    Groups:
    Definitely yes, I have been using them in my three New F1,s for more than 25 years

  14. Sponsored Ad
  15. darkroommike

    darkroommike Subscriber

    Messages:
    1,334
    Joined:
    Mar 22, 2007
    Location:
    Iowa
    Shooter:
    Multi Format
    The Canon new F-1 and the Canon A-series cameras have very good voltage regulation and can use the alkaline batteries but you will not get the battery life from these that you do with the lithium and silver oxide batteries. As I recall the lithium batteries became popular when silver prices went up thanks to the Hunt brothers manipulation of silver prices in the 80's. Lithium batteries work well with lower temperatures and silver oxide batteries are recommended for longest life in camera. But of course remove all batteries when the camera is not being used.

  16. benjiboy

    benjiboy Subscriber
    Ads Enabled

    Messages:
    9,889
    Joined:
    Apr 18, 2005
    Location:
    U.K.
    Shooter:
    35mm
    Groups:
    That's right in my experience, Mike and I particularly appreciate how much lighter the AA Lithium cells are than the Alkaline ones are in the Motor Drive FN for the New F1 that takes 12 of them!

  17. AgX

    AgX Member

    Messages:
    17,850
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    Weight... something I did not even think of (aside of the classic lead batteries (used in flashes))

  18. OP
    OP
    CMoore

    CMoore Subscriber

    Messages:
    2,404
    Joined:
    Aug 23, 2015
    Location:
    USA CA 94585
    Shooter:
    35mm
    Any of you guys that were a Professional Photographer "Back Then" how often did you see a guy with a Canon F-1 or Nikon F2/F3 using one of those giant battery attachments.?
    You would think that they almost made the camera "unusable".
    I realize there would have been times when it was important to have that ability, but.......:smile:
    The fastest motor i eve used were those Smell/Thin units that just added an inch or so to the bottom of the body. They basically saved you from making the motion of winding the film and allowed you to keep looking through the viewfinder and not having to move the camera to advance the film.

  19. AgX

    AgX Member

    Messages:
    17,850
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    Well, think of the press photographers schlepping around their lead-acid battery packs for their flashes.

    And those camera battery packs could be carried seperately too. At least with the F1.

  20. MattKing

    MattKing Subscriber
    Ads Enabled

    Messages:
    23,512
    Joined:
    Apr 24, 2005
    Location:
    Delta, BC, Canada
    Shooter:
    Multi Format
    If you paid any attention to the photographers at any of the big sporting events - Olympics, World Series, Super Bowl, World Cup - you would definitely see those big motor drives and power packs.
    Not to mention silly expensive big lenses.

  21. OP
    OP
    CMoore

    CMoore Subscriber

    Messages:
    2,404
    Joined:
    Aug 23, 2015
    Location:
    USA CA 94585
    Shooter:
    35mm
    Yeah...i understand. I guess i never paid much attention to it. I would think, as they became available, motor drives were just standard. Sports photographers might live or die from being able to do 4-5 frames a second.
    Just a sign of the times i suppose.
    And yes, those super expensive 300-500 lens. Cannot imagine what a 500/2.8 lens sells for.:smile:

  22. MattKing

    MattKing Subscriber
    Ads Enabled

    Messages:
    23,512
    Joined:
    Apr 24, 2005
    Location:
    Delta, BC, Canada
    Shooter:
    Multi Format
  23. EdoNork

    EdoNork Member

    Messages:
    49
    Joined:
    Mar 15, 2010
    Shooter:
    Medium Format

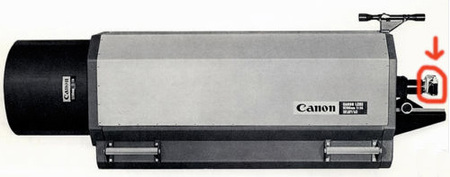

    Don't ask for the 5200mm price.

    [​IMG]

  24. benjiboy

    benjiboy Subscriber
    Ads Enabled

    Messages:
    9,889
    Joined:
    Apr 18, 2005
    Location:
    U.K.
    Shooter:
    35mm
    Groups:
    Not only the motor drives and long lenses Chip, but also 250 exposure bulk film backs they used with New F1s in the 1984 LA Olympics

  25. darkroommike

    darkroommike Subscriber

    Messages:
    1,334
    Joined:
    Mar 22, 2007
    Location:
    Iowa
    Shooter:
    Multi Format
    I have one of those big ol' Canon Motor Drives "Motor Drive Unit" aka Motor MD for the original style F1. It was rathe inconvenient but had a lot of neat features. (Still have it----somewhere.) There is a remote battery cord which makes just a little less ridiculous, you can stick the battery case on your belt. I got it in a trade, took it out once, hiking, once was enough.

  26. benjiboy

    benjiboy Subscriber
    Ads Enabled

    Messages:
    9,889
    Joined:
    Apr 18, 2005
    Location:
    U.K.
    Shooter:
    35mm
    Groups:
    I have the Motor Winder F for my F1n's its much lighter than the Motor Drive F and only needs 4 AA batteries.
