I'm about to try Ryuji Suzuki's formula for DS12 (http://silvergrain.org/Photo-Tech/film-dev-recommend.html). Unfortunately he does not give a recommendation for stock solutions of DS-12. Weighing in such small amounts to make one-shot solutions evere time I need them sounds a bit inconvenient.

What do you think? Does it sound reasonable to make up a tenfold concentrated stock or would this be overdoing it? Should I stick with fivefold? Any additional precautions?

thanks in advance

Stefan


psvensson

Member
Joined
Apr 16, 2004
Messages
623
Location
Queens, NY
Shooter
Medium Format
Speaking from limited experience, I would say tenfold concentrate should work, but more will be tough because of the sulfite. Raising the mixing temp. to 35C is probably a good idea. You could probably e-mail Ryuji himself - his address is on the web site.


dancqu

Member
Joined
Sep 7, 2002
Messages
3,654
Location
Willamette V
Shooter
Medium Format
skahde said:
Unfortunately he does not give a recommendation for stock solutions of DS-12. Weighing in such small amounts to make one-shot solutions ...

What do you think? Does it sound reasonable to make up a tenfold concentrated stock or would this be overdoing it? Should I stick with fivefold? Any additional precautions?

Stefan

I never weigh less than a gram of anything on my .01gr Acculab.
I would make a fivefold stock useing one gram metol. That will
leave you with 1/2 liter. That would do me five rolls of 120 at
1/2 liter/roll.

I seem to recall that sulfite is not all that soluable. I've doubts 50gr
of it will fit into 1/4 liter. Never raise the temperature to dissolve unless
you know that the amount dissolved will remain in solution after it has
cooled and perhaps cooled for some time.

BTW, have you any idea why the triethanolamine? Also what is the
DS-2 he speaks of and do you know where the formula might be?

DS-12 is likely very similar to FX-1. If so it will also make a good paper
developer. Dan


Tom Hoskinson

Member
Joined
Mar 7, 2004
Messages
3,874
Location
Southern Cal
Shooter
Multi Format
dancqu said:
I never weigh less than a gram of anything on my .01gr Acculab.
I would make a fivefold stock useing one gram metol. That will
leave you with 1/2 liter. That would do me five rolls of 120 at
1/2 liter/roll.

I seem to recall that sulfite is not all that soluable. I've doubts 50gr
of it will fit into 1/4 liter. Never raise the temperature to dissolve unless
you know that the amount dissolved will remain in solution after it has
cooled and perhaps cooled for some time.

BTW, have you any idea why the triethanolamine? Also what is the
DS-2 he speaks of and do you know where the formula might be?

DS-12 is likely very similar to FX-1. If so it will also make a good paper
developer. Dan

Dan, take a look in the Chemistry Recipes section. I have mixed up concentrated TEA (as the solvent) versions of Suzuki's DS-14 (Phenidone/Ascorbic Acid) and DS-15 (Metol/Ascorbic Acid). They are paper developers, but at high dilutions they should be pretty close to Xtol (or Gainer's PC-TEA). I am in the process of testing them.

I avoided the sulfite solubility problem by adding the sulfite, carbonate and KBr to the water used to prepare the working developer. Adding the carbonate may not have been necessary - but I don't see how it can hurt.

BTW, I had no difficulty at all dissolving 6 grams of Metol in 350ml of TEA at 240 F.


john_s

Subscriber
Joined
Nov 19, 2002
Messages
1,659
Location
Melbourne, A
Shooter
Medium Format
dancqu said:
I seem to recall that sulfite is not all that soluable. I've doubts 50gr
of it will fit into 1/4 liter.

A table of solubilities that I copied from the web a couple of years ago said 313g sodium sulphite will dissolve in 1Litre of water at around room temp. I haven't tested that, but I keep a 200g/L solution as a stock solution for rinse aid.


Tom Hoskinson

Member
Joined
Mar 7, 2004
Messages
3,874
Location
Southern Cal
Shooter
Multi Format
john_s said:
A table of solubilities that I copied from the web a couple of years ago said 313g sodium sulphite will dissolve in 1Litre of water at around room temp. I haven't tested that, but I keep a 200g/L solution as a stock solution for rinse aid.

That sounds about right for solubility of sodium sulfite in water.

In alcohols, glycols and triethanolamine (TEA) it is only slightly soluble.


dancqu

Member
Joined
Sep 7, 2002
Messages
3,654
Location
Willamette V
Shooter
Medium Format
skahde said:
I'm about to try Ryuji Suzuki's formula for DS-12 ...
Stefan

A few odds and ends:

I'm quite sure DS this and that are Suzuki formulas.

At www.pofig.com you will find the formula for DS-2. Metol, ascorbic
acid, and sulfite are as with DS-12.

There is a .2 gram complexing agent in DS-12 as well as triethanolamine.
I think Mr. Suzuki is throwing us a curve with that one as he is using
it as an alkali. He uses a bicarbonate/carbonate combination in DS-2.

As for the solubility of sodium sulfite; in my work I may have bumped
up against the "practical solubility in H2O" of 150 grams/liter mentioned
at www.genchemcorp.com. Otherwise the amount soluble varies. With
time 200 grams will likely fit in one liter making for a ten-fold. Dan

Joined
Jun 10, 2004
Messages
35
Shooter
Medium Format
skahde said:
I'm about to try Ryuji Suzuki's formula for DS12 (http://silvergrain.org/Photo-Tech/film-dev-recommend.html). Unfortunately he does not give a recommendation for stock solutions of DS-12. Weighing in such small amounts to make one-shot solutions evere time I need them sounds a bit inconvenient.

What do you think? Does it sound reasonable to make up a tenfold concentrated stock or would this be overdoing it? Should I stick with fivefold? Any additional precautions?

I'm using DS-12 for several month now and think it gives excellent results with APX100 and the slower Efke films. I routinely dissolve 10x the amount of given chemistry in 900ml water at 40deg. Celcius, this works like a charm. After dissolving everything (I use a magnetic stirrer) I top it up to 1l and use 25ml per film + 225ml water. Stored at room temperature, I had no precipate yet.

On my website http://www.jangowski.de/sensitometry/ I have several test results with DS-12 used like that. To get maximum sharpness, I made all these tests with 30s agitation first and 10s every two minutes after that. However, being lazy, I recently tried DS-12 in my ATL and found that the results with APX100 are essentially identical with about 20% less time. With 6x6 enlarged to 30x30cm, the sharpness seems identical, no real need for manual work ;-)

Martin

OP
OP
skahde

skahde

Member
Joined
Feb 16, 2004
Messages
407
Location
Germany
Shooter
Multi Format
Thanks so far to everyone who responded!

"However, being lazy, I recently tried DS-12 in my ATL and found that the results with APX100 are essentially identical with about 20% less time. With 6x6 enlarged to 30x30cm, the sharpness seems identical, no real need for manual"

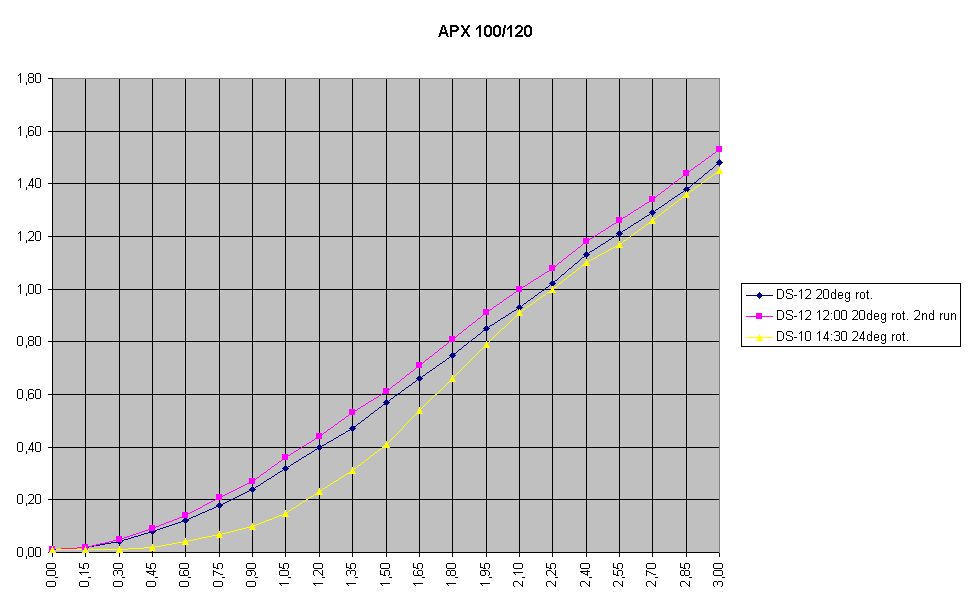

Martin, do I understand this one correctly: http://www.jangowski.de/sensitometry/APX100.jpg
At 24°C you get less speed/lowered shaddow density as compared to 20°C. This would be very interesting as I started to optimize everything for the higher temperature which is far easier to maintain in the warmer half of the year.

Maybe I shouldn't do that...

regards

Stefan

Joined
Jun 10, 2004
Messages
35
Shooter
Medium Format
skahde said:
Thanks so far to everyone who responded!

"However, being lazy, I recently tried DS-12 in my ATL and found that the results with APX100 are essentially identical with about 20% less time. With 6x6 enlarged to 30x30cm, the sharpness seems identical, no real need for manual"

Martin, do I understand this one correctly: http://www.jangowski.de/sensitometry/APX100.jpg
At 24°C you get less speed/lowered shaddow density as compared to 20°C. This would be very interesting as I started to optimize everything for the higher temperature which is far easier to maintain in the warmer half of the year.

The third curve with 24deg. was made with DS-10, a developer obviously not very suited to APX100. I use DS-10 1+1 at 24deg. to keep the times reasonable.

Martin

OP
OP
skahde

skahde

Member
Joined
Feb 16, 2004
Messages
407
Location
Germany
Shooter
Multi Format
Martin,

herzlichen Dank! This will save me a lot testing as I intended to try APX with DS-10 as well.

Viele Grüße

Stefan

Joined
Jun 10, 2004
Messages
35
Shooter
Medium Format
skahde said:
Martin,

herzlichen Dank! This will save me a lot testing as I intended to try APX with DS-10 as well.

Viele Grüße

Stefan

Film tested by me that gave excellent results with DS-10 are the Deltas, Acros, 400TX and 3200TX. I only made sensitometric tests with FP4+, but these look good, too. APX100, Efke 100 and Lucky 100 and 400 didn't work well.

I'm looking for a fine grain developer for the APX. I just made a test batch of "Mycrodol" (5g Metol, 100g Sodiumsulfite, 33g Sodiumchloride, 1g Boric acid per liter) and initial results look very promising.

Martin


Ryuji

Member
Joined
Jan 15, 2005
Messages
1,415
Location
Boston, MA
Shooter
Multi Format
dancqu said:
I never weigh less than a gram of anything on my .01gr Acculab.
I would make a fivefold stock useing one gram metol. That will
leave you with 1/2 liter. That would do me five rolls of 120 at
1/2 liter/roll.

I seem to recall that sulfite is not all that soluable. I've doubts 50gr
of it will fit into 1/4 liter. Never raise the temperature to dissolve unless
you know that the amount dissolved will remain in solution after it has
cooled and perhaps cooled for some time.

BTW, have you any idea why the triethanolamine? Also what is the
DS-2 he speaks of and do you know where the formula might be?

DS-12 is likely very similar to FX-1. If so it will also make a good paper
developer. Dan

DS-2 is as follows:

metol 0.4g
ascorbic acid 1.0g
sodium carbonate 4.0g
sodium bicarbonate 1.0g
sodium sulfite 20g
water to make 1.0 liter (target pH = 9.8)

I would mix this immediately before use. It keeps reasonably as a 5x concentrate but for that purpose DS-12 is much better.

For DS-12, you can make concentrate and it'll keep for some months.

The reason why I started using salicylic acid and triethanolamine a few years ago is described in archive of old pure-silver list. They are an attempt to solve the problem reported about ascorbate developers, most frequently XTOL, such as sudden failure problems.


Ryuji

Member
Joined
Jan 15, 2005
Messages
1,415
Location
Boston, MA
Shooter
Multi Format
Tom Hoskinson said:
Dan, take a look in the Chemistry Recipes section. I have mixed up concentrated TEA (as the solvent) versions of Suzuki's DS-14 (Phenidone/Ascorbic Acid) and DS-15 (Metol/Ascorbic Acid). They are paper developers, but at high dilutions they should be pretty close to Xtol (or Gainer's PC-TEA). I am in the process of testing them.

DS-14, 15 and XTOL are very different developers even if you dilute them. The target pH, bromide concentration, salt concentration, etc. are very different.

I don't know about PC-TEA, which is not pH buffered. But none of these DS- developers is similar to PC-TEA. Nor is XTOL similar to PC-TEA.


srs5694

Member
Joined
May 18, 2005
Messages
2,719
Location
Woonsocket,
Shooter
35mm
skahde said:
I'm about to try Ryuji Suzuki's formula for DS12 (http://silvergrain.org/Photo-Tech/film-dev-recommend.html). Unfortunately he does not give a recommendation for stock solutions of DS-12. Weighing in such small amounts to make one-shot solutions evere time I need them sounds a bit inconvenient.

What do you think? Does it sound reasonable to make up a tenfold concentrated stock or would this be overdoing it? Should I stick with fivefold? Any additional precautions?

Sorry for resurrecting an old thread, but I've recently tried DS-12 and so far it seems pretty good. I was wondering if there's any news to report from attempts to make a more concentrated DS-12 stock.


Tom Hoskinson

Member
Joined
Mar 7, 2004
Messages
3,874
Location
Southern Cal
Shooter
Multi Format
srs5694 said:
Sorry for resurrecting an old thread, but I've recently tried DS-12 and so far it seems pretty good. I was wondering if there's any news to report from attempts to make a more concentrated DS-12 stock.

Here are 3 concentrated Ascorbic Acid developers that work quite well. The same procedure should work for making a concentrated, long shelf life stock solution of DS-12. Just mix the appropriate amounts of sulfite and any additional alkali into the working solution water and then add the concentrate.

Metol/Ascorbic Acid/TEA concentrated film developer
(there was a url link here which no longer exists)

Phenidone/Ascorbic Acid/TEA concentrated paper developer and Metol/Ascorbic Acid/TEA concentrated paper developer

(there was a url link here which no longer exists)

  • Olympus17
  • Deleted
  • Reason: Wrong language
  • Olympus17
  • Deleted
  • Reason: Wrong language

Olympus17

Member
Joined
May 28, 2020
Messages
66
Location
CANAKKALE/TURCHIA
Shooter
35mm
Hello to everyone. Where can I get film development times for the DS-12? Or which developer should I base on which is more known as benchmark.


Tom Kershaw

Subscriber
Joined
Jun 5, 2004
Messages
4,758
Location
Norfolk, United Kingdom
Shooter
Multi Format
Hello to everyone. Where can I get film development times for the DS-12? Or which developer should I base on which is more known as benchmark.

I have got good results with Delta 100 - 11 min @ 20C. Paterson tank, hand inversion etc. continuous agitation 1st minute, then 10 seconds per minute thereafter. I've also made extensive use of DS-2 and DS-12 in a Jobo processor for Delta 100 and T-max 100, but obviously process times are different for rotary.


Olympus17

Member
Joined
May 28, 2020
Messages
66
Location
CANAKKALE/TURCHIA
Shooter
35mm
Thanks for your help. I also use a Paterson tank-like development tank. I am considering preparing DS-12 concentrate and using it with 1+9 or 1+14 dilution. In this case, should I still follow the dilution amount and times given for Ilfosol-s?


Tom Kershaw

Subscriber
Joined
Jun 5, 2004
Messages
4,758
Location
Norfolk, United Kingdom
Shooter
Multi Format
What would be the 1+9 dilution and time at 20 degrees Celsius for the Kodak 400Tx?

Are you making a 10x concentrate of the stock solution? I make a 5x concentrate (i.e 100g sodium sulphite per litre). From a theoretical perspective as regards Kodak Tri-X I would strongly recommend the DS-10 developer rather than DS-12. For DS-10, times of XTOL + 20% work well as a starting point.
