    Can spectral sensitivity curves be used to predict a film's response to filtration, or are there too many other factors in play? As a practical example if one wished to find a currently available film with the same response to filters in daylight as the now deceased Agfa APX 25?

  2. keithwms

    keithwms Member

    Messages:
    6,255
    Joined:
    Oct 14, 2006
    Location:
    Charlottesvi
    Shooter:
    Multi Format
    Yes, a filter simply cuts out a portion of the sensitivity curve. If you find a film with a similar sensitivity curve then you should get roughly equal filter factor.

  3. Kirk Keyes

    Kirk Keyes Member

    Messages:
    3,267
    Joined:
    Jun 17, 2004
    Location:
    Portland, OR
    Shooter:
    4x5 Format
    The only catch is that it's rare that any two film manufacturers use the same format when graphing, and they often use differing color temps of the light source. You can correct for all that if you're good with math, but it's a bitch...

  4. AgX

    AgX Member

    Messages:
    15,258
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    To be more precise, here are

    three examples:

    -) Kodak current graphics are the most precice stating: wavelenght, energy per density and the the aim density itself (0.3 and 1 above base&fog)

    -) Agfa is next with another energy unit though. (But it does not state the aim density in some graphics, the others are 1 above base&fog)

    -) IlfordPhoto is worst giving just a `wedge spektrogram´ . Here not even the energy spread over the spectrum is stated.

  5. df cardwell

    df cardwell Subscriber

    Messages:
    3,357
    Joined:
    Jul 16, 2005
    Location:
    Dearborn,Mic
    Shooter:
    Multi Format
    Using Kodak's info as a guide,
    and a Macbeth color chart as a subject,
    start with you favorite film:

    shoot the chart, make a perfect negative with no filtration.
    print it BRACKET +/- 4 stops

    using that exposure and development as a starting place,
    shoot the chart again: use your filters, vary exposure +/- 4 stops
    soup, print. DON'T RELY ON A SCAN

    results will differ according to the light used for the test.
    winter, i'd either use flash indoors
    or wait for a nice mild day and run outside

    once you have a baseline,
    you'll have the data foreever, and can estimate using the spectros from the makers

    it takes far less time to do this test than it will take to hear all the opinions of why you shouldn't do it :rolleyes:

  6. keithwms

    keithwms Member

    Messages:
    6,255
    Joined:
    Oct 14, 2006
    Location:
    Charlottesvi
    Shooter:
    Multi Format
    Indeed, you need to make sure that the same methods (measurement and plotting) are made when comparing these curves.

    I think there was a recent post by Ron asserting that the sensitivity curves could be measured, to a very good approximation, by simply putting a piece of film in a Uv-vis spectrophotometer- a very simple device that many of us lab geeks have and use on a routine basis for other purposes.

  7. Photo Engineer

    Photo Engineer Subscriber

    Messages:
    27,647
    Joined:
    Apr 19, 2005
    Location:
    Rochester, NY
    Shooter:
    Multi Format
    Here is another method.

    You can expose film or paper to light via a tricolor stepwedge with a WR 98, 99 and 70 filter set. You get what we called a "candy stripe" chart and the number of steps from each filter gives you the spectral distribution. Clunky, but it works.

    And, just to clarify matters, the spectral sensitivity to R/G/B is actually proportional to the area under the curve as measured by the wedge spectrogram within the desired wavelengths. Since contrast can vary as a function of wavelength, doing it in units of 10 nm is much too fine and can be misleading - referring back to Kirks comment.

    In color materials, there is considerable overlap of sensitivities which makes this difficult but not impossible to do, and with B&W it is best to use the entire curve of a pan material as your working area and not divide it up.

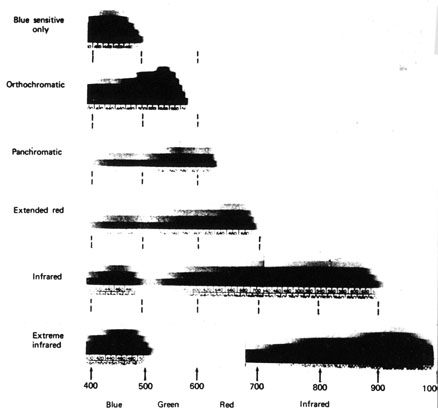

    I've included an example of all of the typical types of spectral sensitivities for your amusement. Enjoy.

    PE


    Attached Files:

  8. OP
    OP
    TimVermont

    TimVermont Subscriber

    Messages:
    462
    Joined:
    Mar 8, 2005
    Location:
    Boston
    Shooter:
    Multi Format
    Cool, thanks everyone! I think I'll end up with a combination of curve reading and experimentation. Tim
