Besler 23C question

Discussion in 'Enlarging' started by JPJackson, Jan 9, 2018.

  1. JPJackson

    JPJackson Subscriber

    Messages:
    168
    Joined:
    Nov 23, 2014
    Location:
    NE TN
    Shooter:
    Large Format
    Will a negative carrier for 23C series 3 fit a series 2 enlarger? Wanting a glass carrier for my 1981 23C 2 series enlarger.

    Thanks

  2. darkroommike

    darkroommike Subscriber

    Messages:
    1,174
    Joined:
    Mar 22, 2007
    Location:
    Iowa
    Shooter:
    Multi Format
    Yup, the 23C carriers are cross compatible between all models of the 23C, 23C-II, 23C-III, I actually prefer the older all black carriers. I don't have a 23 at home but I modified both Negatrans' to use on my Omega and I have 9 23C's, mostly model II's in the school darkroom.

  3. OP
    OP
    JPJackson

    JPJackson Subscriber

    Messages:
    168
    Joined:
    Nov 23, 2014
    Location:
    NE TN
    Shooter:
    Large Format
    Thanks so much for your reply and help!

  4. Derek m

    Derek m Member

    Messages:
    22
    Joined:
    Jan 14, 2018
    Location:
    Pennsylvania
    Shooter:
    Multi Format

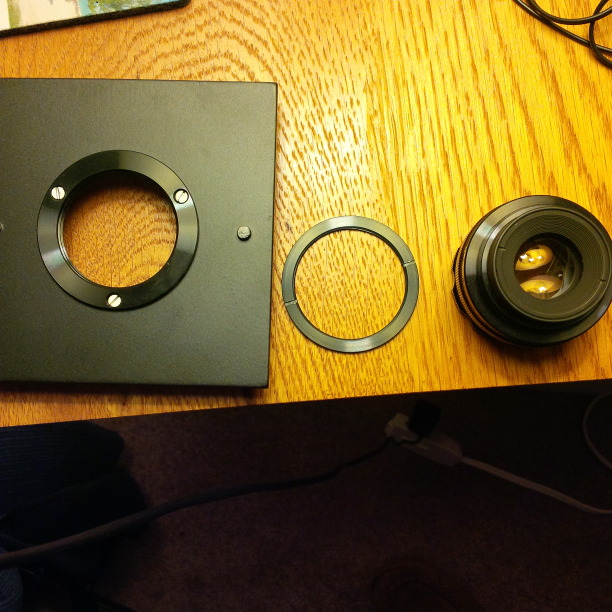

    Rather than make a new thread..I figured I would throw this in here. I've become confused trying to look this stuff up on other sites. I assume the jam nut is what I have pictured in the middle. I'm not sure of its function. Do they just act as a spacer for a tight fit?


    Attached Files:

  5. NedL

    NedL Subscriber

    Messages:
    2,516
    Joined:
    Aug 23, 2012
    Location:
    Sonoma County, California
    Shooter:
    Multi Format
    Groups:
    Yes, that's the jam nut. On my beseler lens board, it is what holds the lens in place. My lens board has a plain un-threaded hole and does not have the threaded insert like seen on your board. Someone will probably come along and tell us what the threaded insert on your board is....

    Last edited: Jan 28, 2018
  6. Derek m

    Derek m Member

    Messages:
    22
    Joined:
    Jan 14, 2018
    Location:
    Pennsylvania
    Shooter:
    Multi Format
    Ok thank you. I assume the other insert is the mounting ring. What's confusing is when researching this, the two terms are used interchangeably. If my lens mounts in the mounting ring without the need of the jam nut, i'm just not sure of the latter's purpose.

  7. NedL

    NedL Subscriber

    Messages:
    2,516
    Joined:
    Aug 23, 2012
    Location:
    Sonoma County, California
    Shooter:
    Multi Format
    Groups:
    I don't think you need the jam nut if the lens board already has threads... but you might want to put it in a safe place in case you ever get another lens board, and if you ever sell your enlarger lens it would be nice to include it. I've got one jam nut, one lens board, and 2 lenses, so when I swap lenses I need to swap the jam nut too.... Have fun!

  8. Derek m

    Derek m Member

    Messages:
    22
    Joined:
    Jan 14, 2018
    Location:
    Pennsylvania
    Shooter:
    Multi Format
    Makes sense to me. These parts aren't always the cheapest!

  9. MattKing

    MattKing Subscriber

    Messages:
    22,326
    Joined:
    Apr 24, 2005
    Location:
    Delta, BC, Canada
    Shooter:
    Multi Format
    Jam nuts are also referred to as retaining rings, in case that helps those who find the terminology confusing.
    Personally I prefer the "retaining ring" term, because jam nuts don't really seem to "jam" anything.

  10. Derek m

    Derek m Member

    Messages:
    22
    Joined:
    Jan 14, 2018
    Location:
    Pennsylvania
    Shooter:
    Multi Format
    That is another term I came across..very dizzying.

  11. David Brown

    David Brown Subscriber

    Messages:
    3,775
    Joined:
    Feb 16, 2004
    Location:
    Earth
    Shooter:
    Multi Format
    Until one attempts to remove a lens without the proper tool ... :whistling:

  12. MattKing

    MattKing Subscriber

    Messages:
    22,326
    Joined:
    Apr 24, 2005
    Location:
    Delta, BC, Canada
    Shooter:
    Multi Format
    OK.
    Jam nuts aren't supposed to "jam" anything:D

  13. M Carter

    M Carter Member

    Messages:
    1,558
    Joined:
    Jan 23, 2013
    Location:
    Dallas, TX
    Shooter:
    Medium Format
    Just to clarify - new enlarger lenses come with the proper retaining ring (jam nut). But some lens boards are threaded - not many from what I've seen, but a few are, in which case the nut isn't needed. You just screw the lens right into the board. The good thing about the nut vs. a threaded board? You can snug-up the lens with the f-stops perfectly facing you.

,
