Upload on aperture shutter speed table

Well done, but Iprefer the method where a target disk is placed into the scene and it's size is measured on the ground glass .a ruler measures the disk diameter, which has a direct link to the exposure compensation required.
good luck. ask for a free pdf of this method by sending a request to [email protected]

OP
OP
smithdoor

smithdoor

Member
Joined
Nov 2, 2013
Messages
134
Location
Clovis CA
Shooter
4x5 Format
Thank you
I have look at the disk look good too.

Dave


Well done, but Iprefer the method where a target disk is placed into the scene and it's size is measured on the ground glass .a ruler measures the disk diameter, which has a direct link to the exposure compensation required.
good luck. ask for a free pdf of this method by sending a request to [email protected]


Tom1956

Member
Joined
May 6, 2013
Messages
1,990
Location
US
Shooter
Large Format
A lot of that Lambrecht stuff I've seen is pretty easy, clear, and logical. That PDF download makes me want to keep my Kodak Master Photoguide more handy. Good effort though.


RalphLambrecht

Subscriber
Joined
Sep 19, 2003
Messages
12,877
Location
K,Germany
Shooter
Medium Format
A lot of that Lambrecht stuff I've seen is pretty easy, clear, and logical. That PDF download makes me want to keep my Kodak Master Photoguide more handy. Good effort though.

I'm honored; thanks for the nice words, but let's not forget, I too have learned a lot from APUG.


Rick Rosen

Member
Joined
Apr 15, 2005
Messages
18
Shooter
4x5 Format
A simple way to calculate exposure compensation is to use a ruler. I keep a small tape measure with me for this purpose.

Follow along:

1. In your mind convert your len's focal length to inches.

Examples:

90mm = 3.5"
150mm = 6"
210mm = 8.25"
300mm = 12"

2. Now focus any one of your lenses at infinity It will be it's mm length from the film plane. I use the film plane and the center of the front standard to measure from.

3. In your mind convert the mm focal length to inches.

Round it off to the closest f/number.
In your mind call the resulting number an f/stop.
For example my 210mm lens is 8.25" which is my f/8 lens.
My 90mm lens is 3.5" which is my f/4 lens.
150mm lens is 5.9" which is my f/5.6 lens.
300mm lens is my f/11 lens (close enough to 12")

4. When you are focused for your photograph use the tape measure to measure the distance from the film plane to the front standard reference point.

Examples:

Lets say for example that you are using a 210mm lens and it is focused at 11 inches. 210mm = "f/8" and my "f/8 lens" at 11' is f/11. f/8 to f/11 = One stop bellows compensation.

Fast and accurate. Try it.


ROL

Member
Joined
Oct 27, 2005
Messages
796
Location
California
Shooter
Multi Format
Futile perhaps. But I've always found it kind of necessary to hang on to your inches.


Jim Noel

Member
Joined
Mar 6, 2005
Messages
2,265
Shooter
Large Format
I'm with Ralph. All these other methods are too time consuming. I use a square chip placed in the scene and its image measured on the ground glass. Quick, simple and easy to make and carry around.


StoneNYC

Member
Joined
Aug 5, 2012
Messages
8,355
Location
Antarctica
Shooter
8x10 Format
I'm with Ralph. All these other methods are too time consuming. I use a square chip placed in the scene and its image measured on the ground glass. Quick, simple and easy to make and carry around.

Can you show a picture?


BrianShaw

Member
Joined
Nov 30, 2005
Messages
12,810
Location
Los Angeles
Shooter
Multi Format
See the very bottom of the page. Click link. What Ralph and some of us use is a variant of this in which the target is square instead of round. At one time Calumet sold such a tool but there are several available on the internet.


rbrigham

Member
Joined
Sep 7, 2008
Messages
118
Location
London
Shooter
Large Format

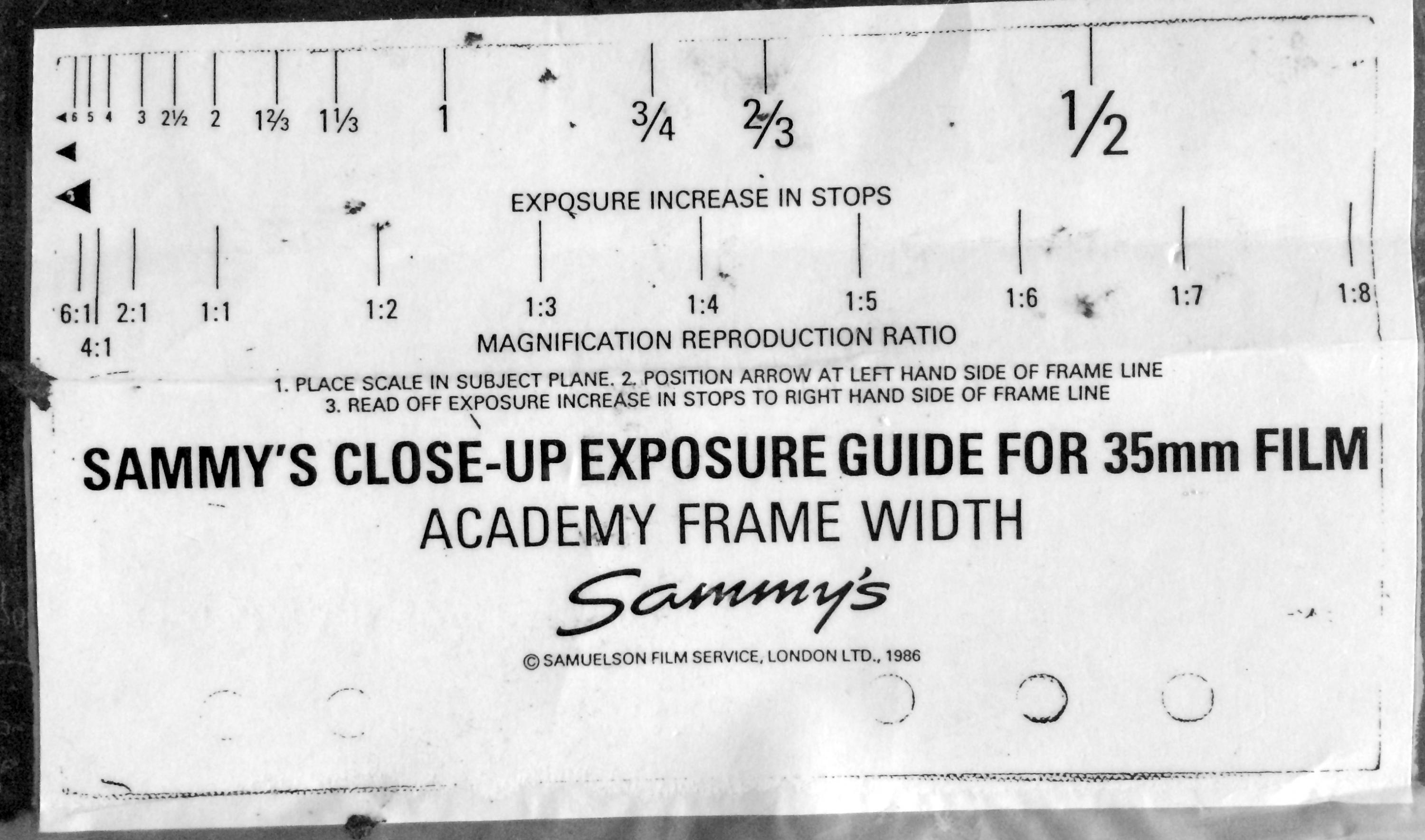

Another device to me sure bellows compensation

Please see the attached for another tool to workout bellows extension
this one was for 35mm but the idea will work with any format

robin


Attachments

  • photo-24 copy.jpg
    photo-24 copy.jpg
    416.8 KB · Views: 90

StoneNYC

Member
Joined
Aug 5, 2012
Messages
8,355
Location
Antarctica
Shooter
8x10 Format
p.s. I normally charge between $150 and $200 per hour to do research. :wink:

I was talking to Jim about his GG cutout thing... LOL

But thanks, all those pages are too complicated for me, I looked at it and was like, "yea no.." Lol

I already use the reciprocity timer app for all my work, but just in case I'm ever in a situation where my phone doesn't work (like a week in the canyon) I would like to have some kind of card to help out :smile:

In fact, I don't even know if I'm measuring right, I assume it's from the film plane, to the center of the lens (lens board area) but it could be from the rear element? I don't even know haha, I'm not very precise with it, but it hasn't seemed to affect me too much.


BrianShaw

Member
Joined
Nov 30, 2005
Messages
12,810
Location
Los Angeles
Shooter
Multi Format
But thanks, all those pages are too complicated for me, I looked at it and was like, "yea no.." Lol

Maybe you need to stop typing and read the material. It's really very basic and well explained. Yes, the measurement is between the film and lens planes, but as you say being really precise or accurate isn't really necessary. Jim's "cut-out thing" is in more than one of those links. They may be round instead of square, but same thing.


StoneNYC

Member
Joined
Aug 5, 2012
Messages
8,355
Location
Antarctica
Shooter
8x10 Format
Maybe you need to stop typing and read the material. It's really very basic and well explained. Yes, the measurement is between the film and lens planes, but as you say being really precise or accurate isn't really necessary. Jim's "cut-out thing" is in more than one of those links. They may be round instead of square, but same thing.

I was assuming it was some kind of PDF you could print and cut out that's what I was looking for so I saw the pages with math on it I just didn't bother :-0


BrianShaw

Member
Joined
Nov 30, 2005
Messages
12,810
Location
Los Angeles
Shooter
Multi Format
I was assuming it was some kind of PDF you could print and cut out that's what I was looking for so I saw the pages with math on it I just didn't bother :-0

You kids are going to drive me crazy. Post 15. Click and print, then cut out with scizzors. Ignore all of the others since they have words and numbers. :D


StoneNYC

Member
Joined
Aug 5, 2012
Messages
8,355
Location
Antarctica
Shooter
8x10 Format
You kids are going to drive me crazy. Post 15. Click and print, then cut out with scizzors. Ignore all of the others since they have words and numbers. :D

Hahhaa!!! It's true, we are lazy, we grew up with calculators instead of slide rules, never learned to count with beads like you old folks :wink:

:munch:


StoneNYC

Member
Joined
Aug 5, 2012
Messages
8,355
Location
Antarctica
Shooter
8x10 Format
I don't normally do closeup work. But my Mamiya RB67 medium format is really very capable of that and has bellows adjustment markings on it to make adjustments. Are those accurate or do you have to do more?

I have the same Mamiya RZ67 and the chart works fine, it's a wonder to me they didn't incorporate the same sort of chart on all modern LF cameras, it seems kind of like a no brained to me, but no one's done it yet, I mean the least they could have done was added ruler markings on the field camera bodies so you didn't have to carry one in the field, sometimes I wonder about these engineers... Lol


BrianShaw

Member
Joined
Nov 30, 2005
Messages
12,810
Location
Los Angeles
Shooter
Multi Format
I have the same Mamiya RZ67 and the chart works fine, it's a wonder to me they didn't incorporate the same sort of chart on all modern LF cameras, it seems kind of like a no brained to me, but no one's done it yet, I mean the least they could have done was added ruler markings on the field camera bodies so you didn't have to carry one in the field, sometimes I wonder about these engineers... Lol
Probably better to ask the marketing guys than the engineers. Engineers love numbers, and scales, and marking, and all sorts of technical stuff. Marketing guys are better at figuring out what the majority of users want and need and will pay for. But if you wonder about engineers, start a thread and ask away. Me and my kind will be glad to give you an education. Just have a slide rule ready so you can understand the lesson and do your homework. [as you say: :munch:]
