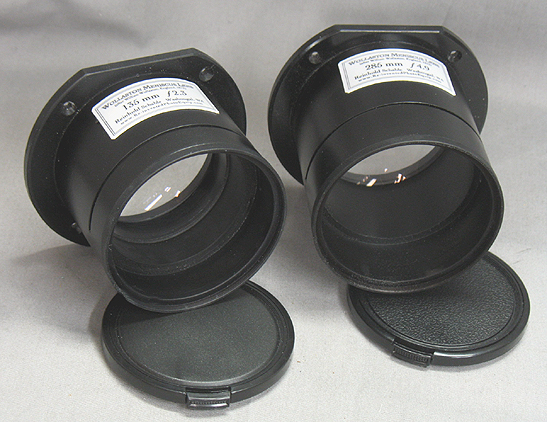

Two ready to mount Wollaston Meniscus lenses...
The flanges have been truncated so they'll fit smaller boards without bumping into the camera's retaining clips.

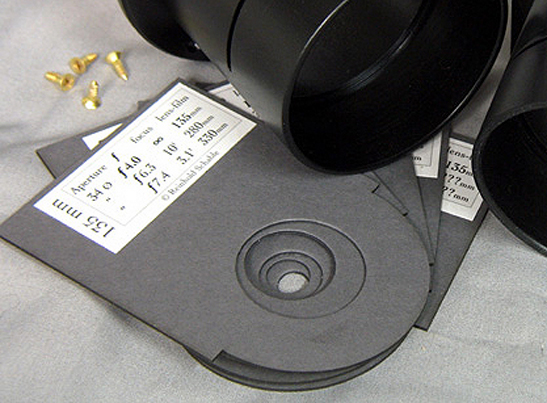

A full set of five aperture stop cards, mounting screws, and a cleaning cloth are included.
$69 each + shipping (usually about $12 domestic USPS).

I have a variety of lensboards available if you'd rather not fuss with it.

Reinhold
www.Re-inventedPhotoEquip.com


Attachments

  • 135 & 285.JPG
    135 & 285.JPG
    248.5 KB · Views: 61
  • Stop cards .jpg
    Stop cards .jpg
    205 KB · Views: 59
  • Lens gen'l spec.11-13pdf.pdf
    27.8 KB · Views: 69

Richard Man

Subscriber
Joined
Sep 24, 2005
Messages
1,094
Shooter
Multi Format
Reinhold, I am interested in the 135/2.3, would SK Grimes be able to put a shutter on it?!

OP
OP
Reinhold

Reinhold

Advertiser
Joined
Aug 20, 2003
Messages
873
Location
Washougal, W
Shooter
Multi Format
Oops, I responded to your PM before I saw this post, so I'll repeat my reply for the benefit of the rest of the folks:

Quote:
I'm skeptical that a modern shutter would suit (or even fit) this kind of lens.
Here's a drawing showing the basic configuration: http://re-inventedphotoequip.com/Data.html
Notice that the lens diameter is about 60mm (2.4") diameter.
To maintain the f:2.3 aperture, the shutter's maximum aperture should be the same size (a Copal #3 is too small).

The most common solution is to use a Packard shutter.
Unfortunately, Packards don't have speeds faster than 1/25.
Using neutral density filters and/or slow speed films is one way to get exposures to match a Packard's range.
See my web page on Packards: http://re-inventedphotoequip.com/Shutters.html

If you have a Speed graphic, the focal plane shutter is a perfect match with the 135mm lens.
Quite a few of my customers like my 190mm lens on a Speed Graphic or Graflex camera.

Unfortunately these simple, primitive lenses are not compatible with sophisticated modern shutters.

Thanks for your interest,
Reinhold

OP
OP
Reinhold

Reinhold

Advertiser
Joined
Aug 20, 2003
Messages
873
Location
Washougal, W
Shooter
Multi Format
Here's a handy nomograph showing how these lenses compare across other film formats...

Reinhold


Attachments

  • Equivalent focal lengths.pdf
    48.4 KB · Views: 78
